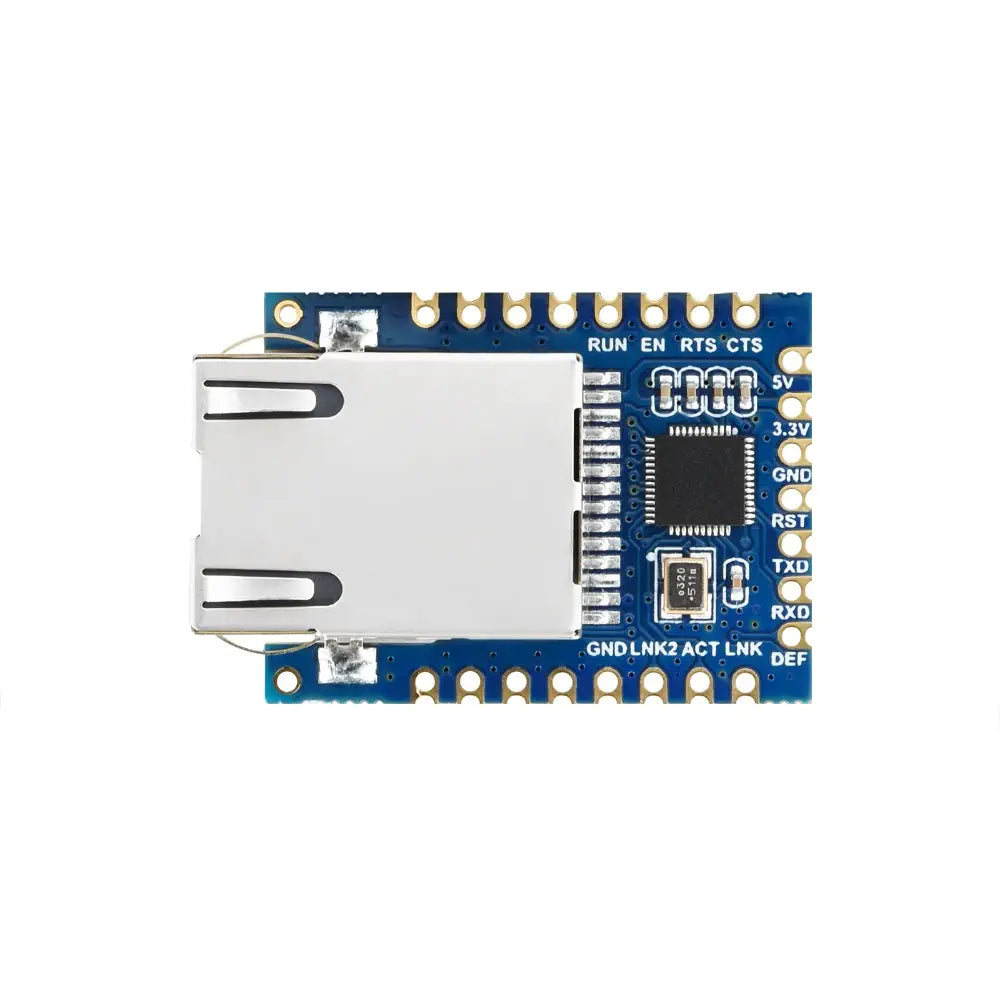

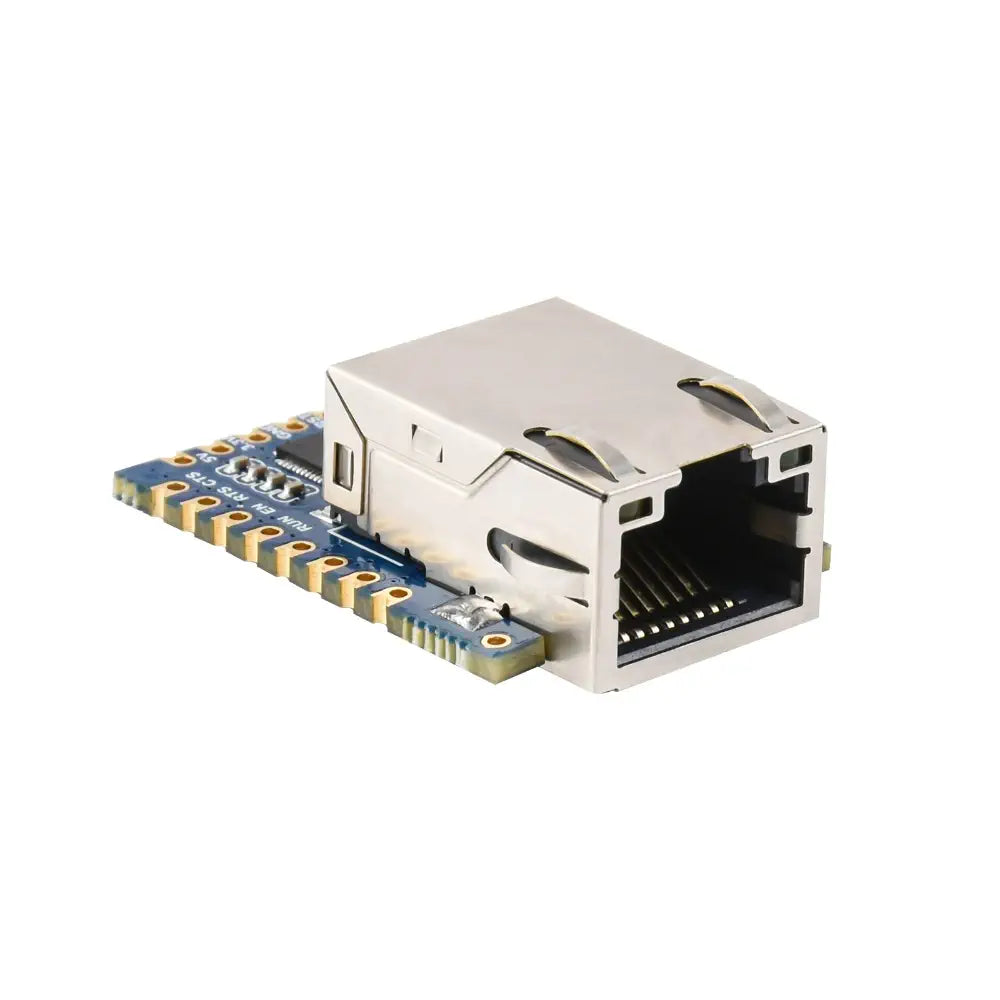

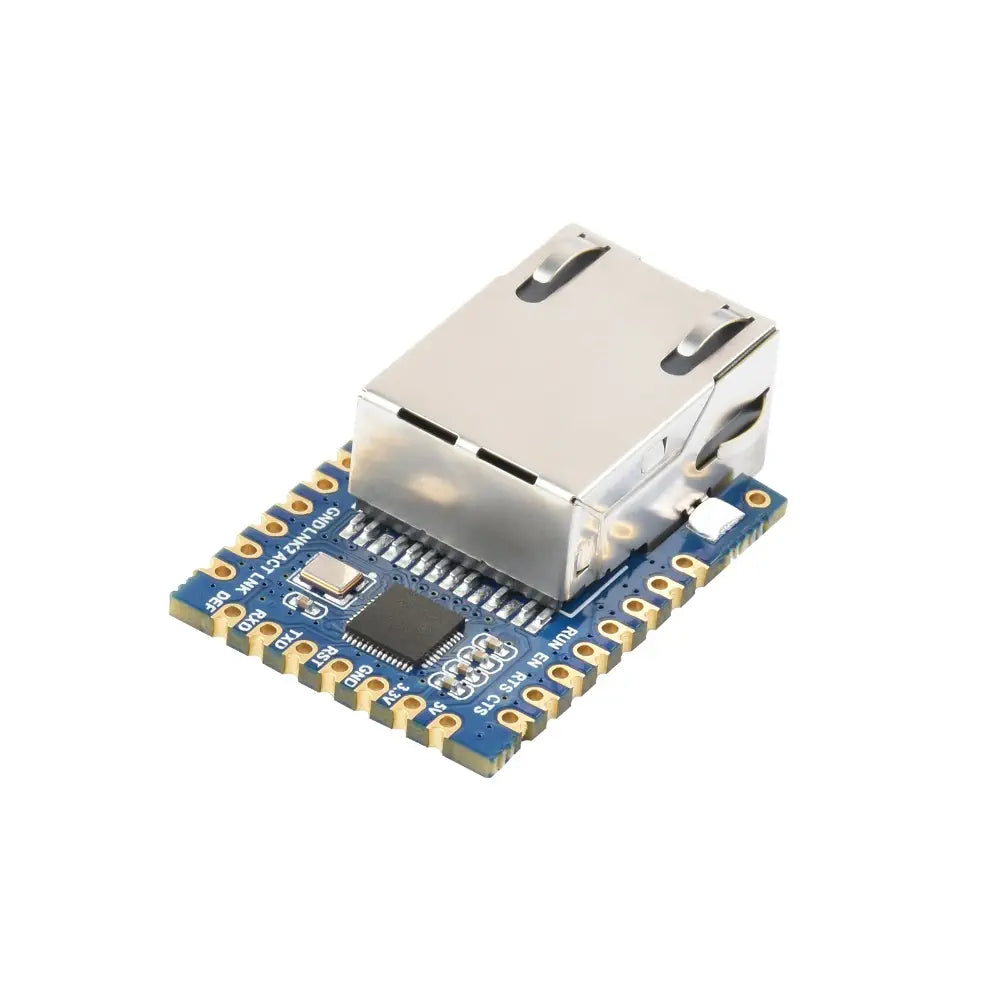

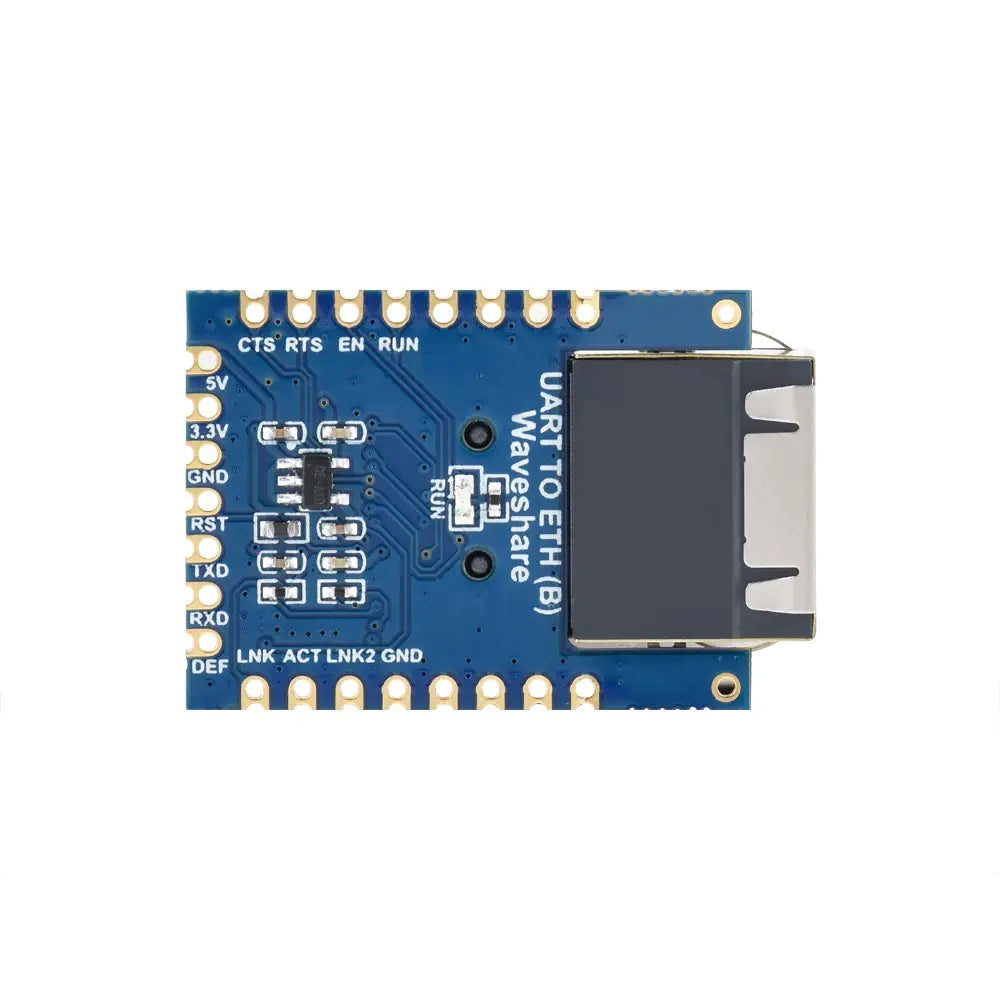

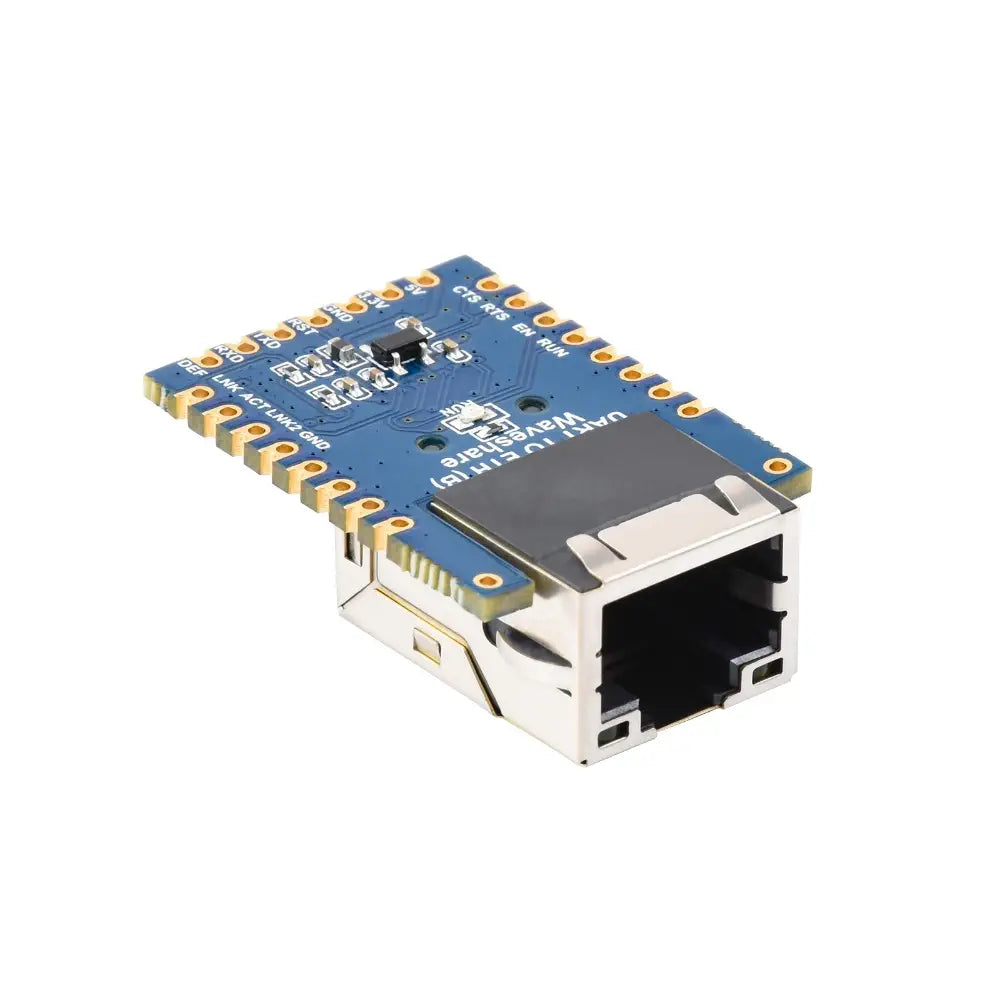

Waveshare TTL UART to Ethernet Mini Module, Castellated Holes w/ Immersion Gold Design, Highly Integrated Packaging
Integrates Ethernet for IoT and industrial use
Supports TCP, UDP, and Modbus Gateway
Features NTP for time synchronization
Offers web and host configuration
Compact design with castellated holes
The Waveshare TTL UART to Ethernet Mini Module, Castellated Holes w/ Immersion Gold Design, Highly Integrated Packaging is a compact and efficient solution for integrating Ethernet connectivity into industrial, IoT, and security applications. Its design facilitates easy embedding into various products, supporting multiple communication modes including TCP and UDP.
This module is equipped with Modbus gateway support, making it suitable for Modbus gridding upgrades. It also features user-defined heartbeat and registration packets for seamless cloud communication and device identification. The module supports NTP protocol for network time synchronization and offers web and host computer configuration capabilities.
1x Waveshare TTL UART to Ethernet Mini Module, Castellated Holes w/ Immersion Gold Design, Highly Integrated Packaging
1x TTL UART to ETH (B)
2x 10-pin black pinheader
34 x 23 x 11.5 mm
Supports TCP Server, TCP Client, UDP Multicast, and UDP Mode
Modbus Gateway support
User-defined heartbeat and registration packet
NTP protocol support
Supports web and host computer configuration
Adapting control pins for easy embedding
Multiple indicators for monitoring operating status
Bi-directional transparent data transmission
Common network port
Power isolation and signal isolation
Serial port: TTL
Baud rate: 300 to 115200 bps
Parity bit options: none, odd, even, mark, space
Data bit range: 5 to 9 bits
Protocols: Ethernet, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
