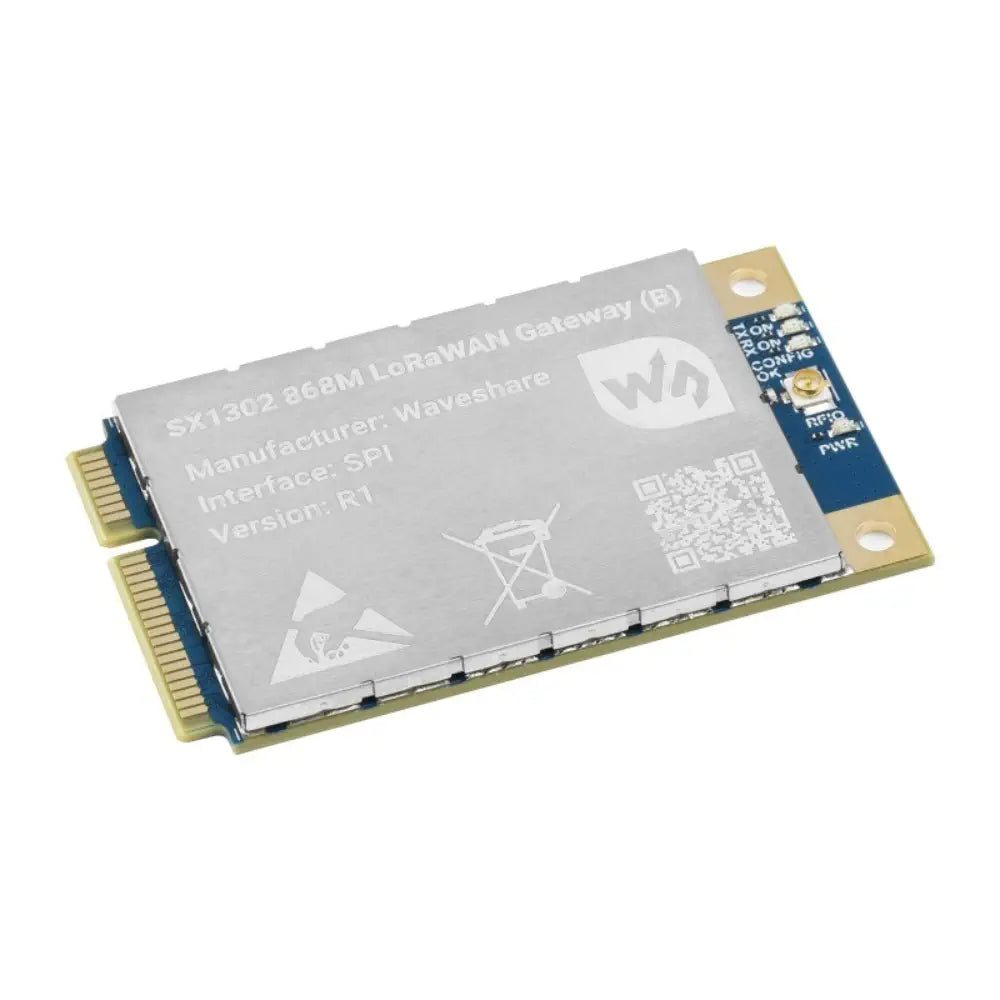

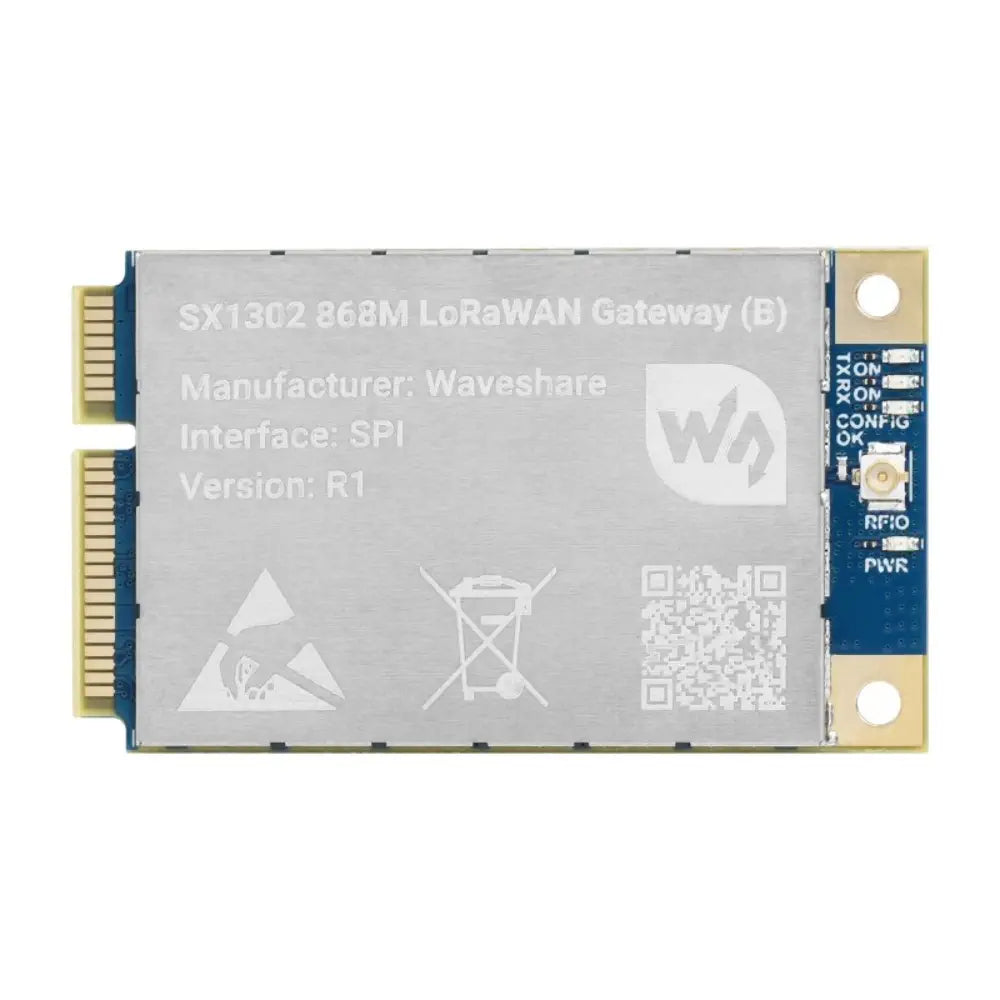

Waveshare SX1302 868m LoRaWAN Gateway Module for Raspberry Pi, Standard Mini-PCIe Socket
Integrates SX1302 chip for enhanced range
Supports Raspberry Pi with 40PIN GPIO header
Features onboard PA and LNA for high sensitivity
Includes GPS/BD module for precise location
Operates with low power, reducing heat output
The Waveshare SX1302 868m LoRaWAN Gateway Module for Raspberry Pi, Standard Mini-PCIe Socket is a sophisticated communication device designed to enhance long-range transmission capabilities. It integrates the advanced SX1302/3 normal band chip, which is renowned for its high receiving sensitivity and ability to support concurrent communication. This module is engineered to operate with low power consumption, allowing for a simplified heat dissipation design and reduced material costs, resulting in a compact form factor.
This gateway module features an onboard PA and LNA, providing substantial emit power and high sensitivity receiving gain. It is equipped with a 52-pin Mini-PCIe socket, facilitating seamless integration into various embedded systems. The module also includes four LED indicators to display operating status, enhancing user interaction and monitoring.
The module supports the Raspberry Pi series through a standard 40PIN GPIO extension header. It incorporates the L76K module with GPS/BD support, delivering precise clock and location information essential for the gateway's operation. The SX1303 chip within the module supports fine timestamping and network positioning based on the time difference of arrival, although this feature is not available in the SX1302 chip.
Note: Ensure proper handling and installation to avoid damage due to electrostatic discharge or incorrect power supply connections.
1x Waveshare SX1302 868m LoRaWAN Gateway Module for Raspberry Pi, Standard Mini-PCIe Socket
50.95 x 30 mm
Integrates Semtech SX1302 normal band and SX1250 radio RF front-end chip
Features onboard PA and LNA with +26dBm emit power and -141dBm high sensitivity receiving gain
Includes a 52-pin Mini-PCIe socket for easy integration into various embedded systems
Equipped with 4 LED indicators for module operating status
Comes with development resources and a manual (example in C)
Supports Raspberry Pi series boards via a standard Raspberry Pi 40PIN GPIO extension header
Incorporates L76K module with GPS/BD support for accurate clock and location information
