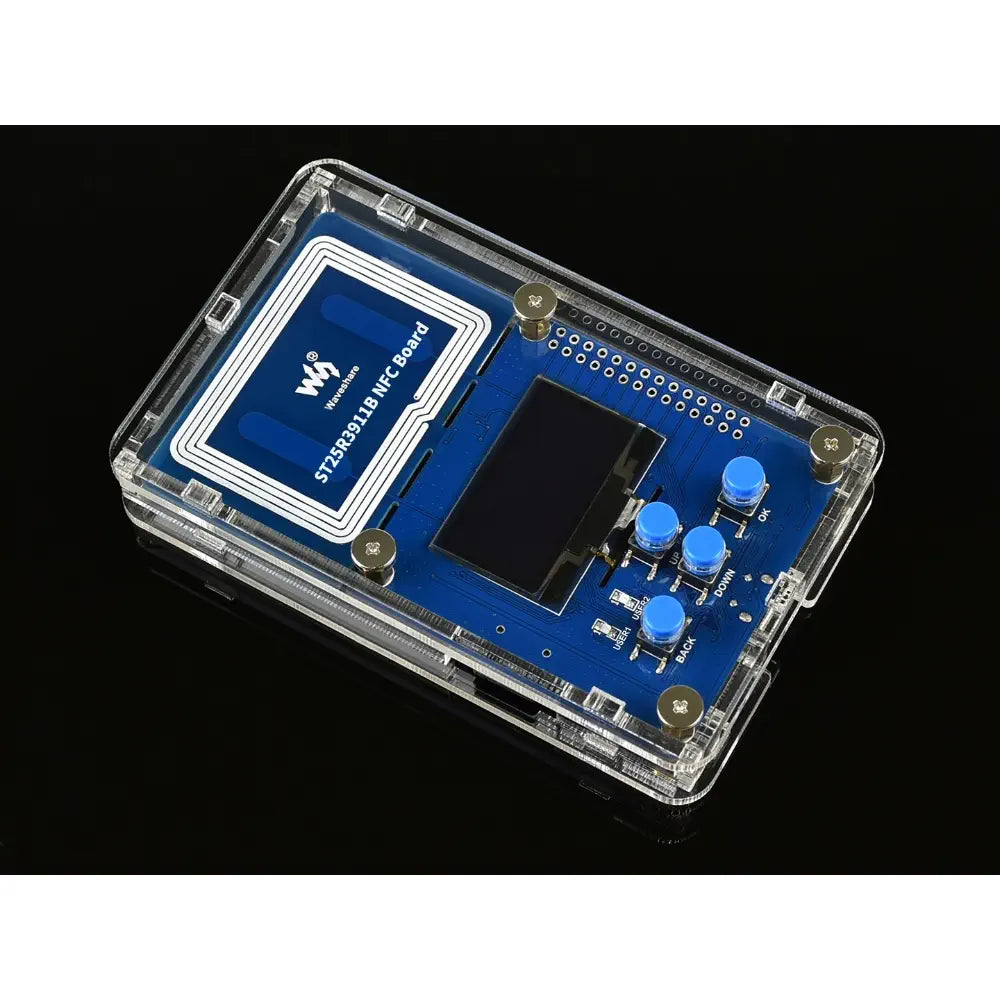

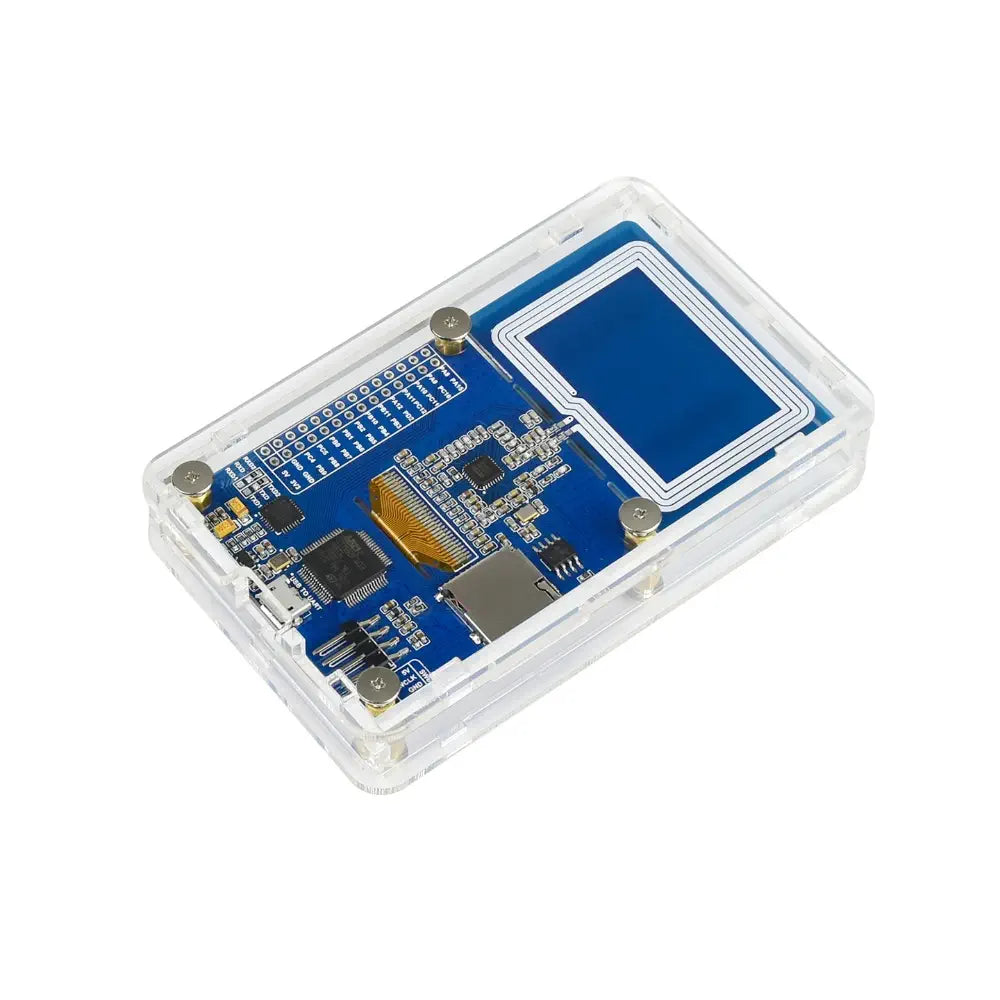

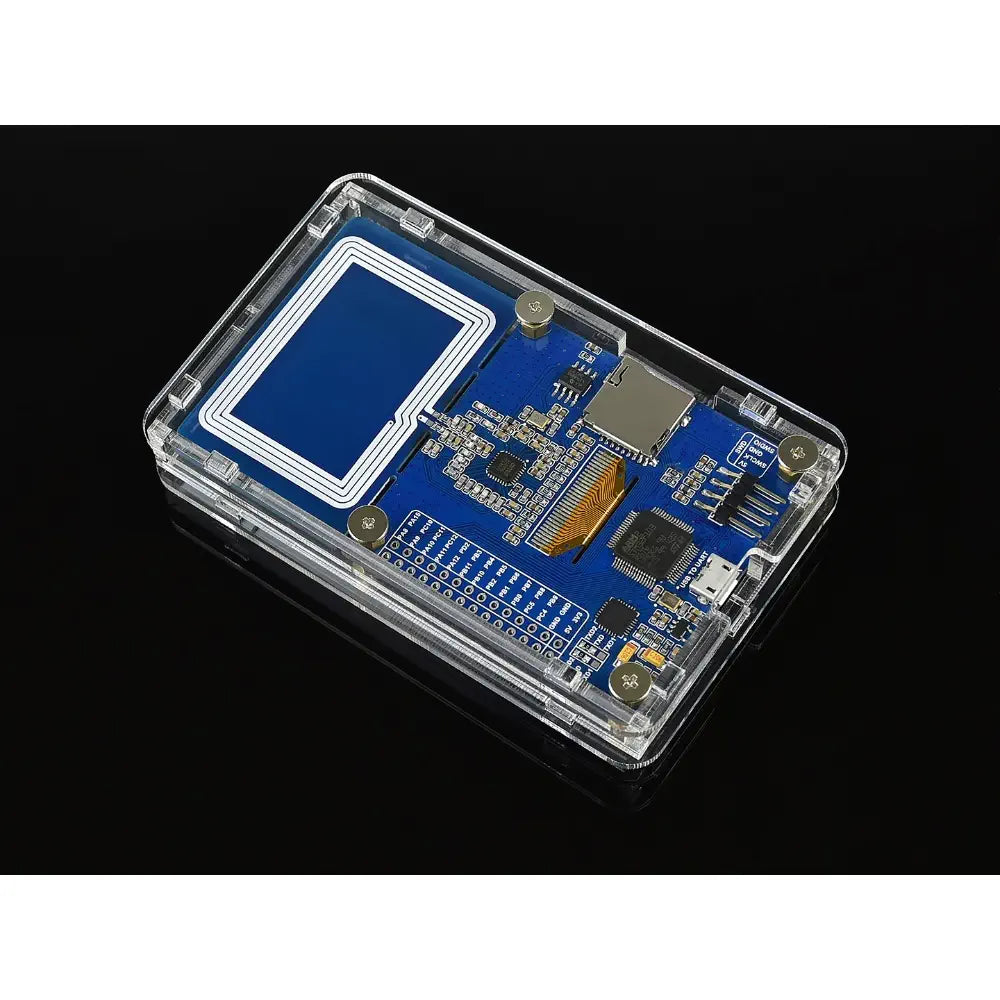

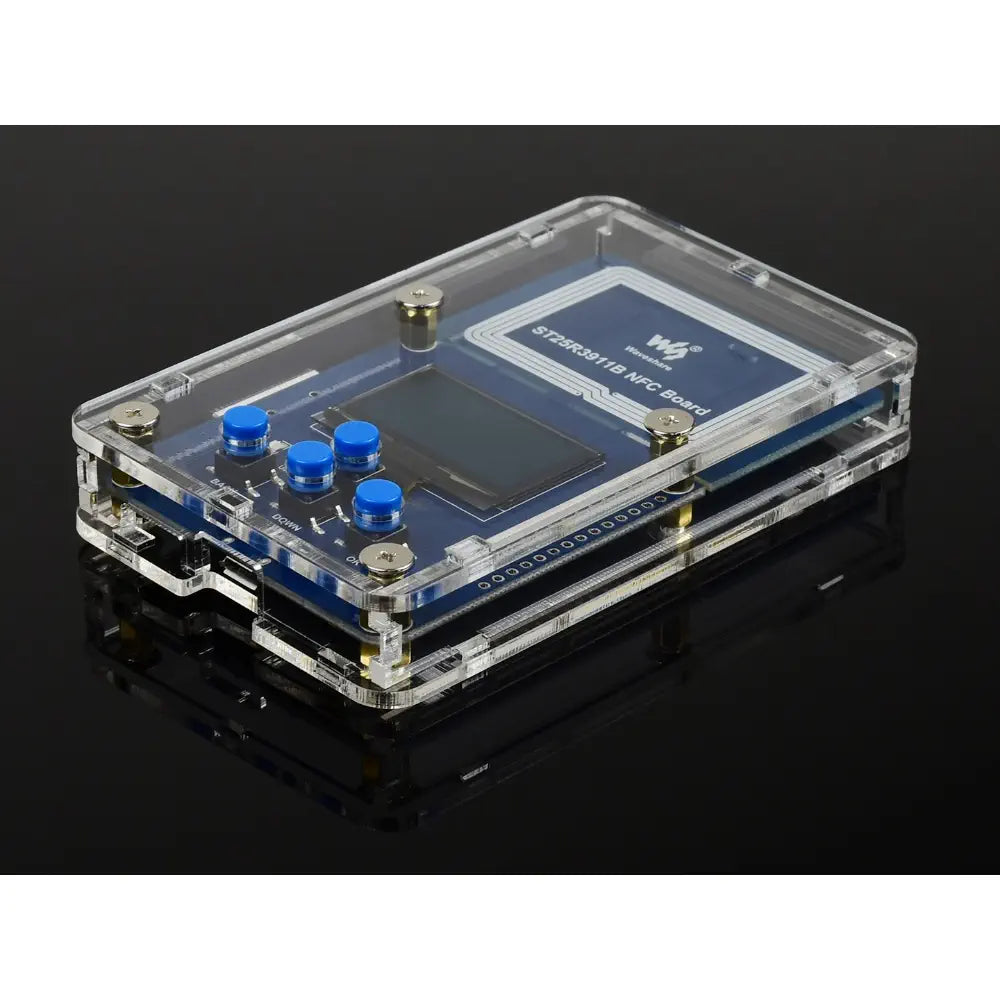

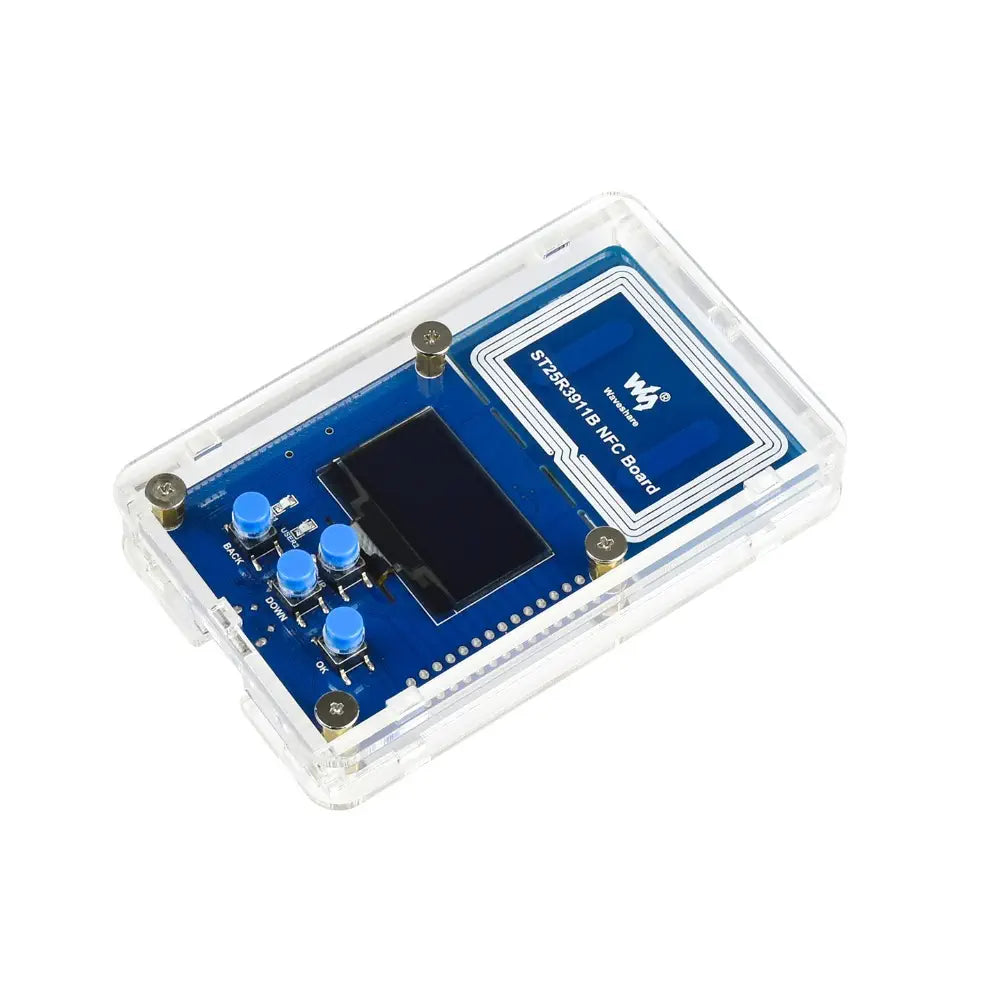

Waveshare ST25R3911B NFC Development Kit, NFC Reader, AT32F413RCT7 Controller, Multi NFC Protocols
Designed for multi-protocol NFC applications
Integrates ST25R3911B NFC chip and AT32F413RCT7 controller
Includes a 1.3-inch OLED display for visual operation
Features differential antenna with up to 1.4W output
Offers easy debugging with user buttons and indicators
The Waveshare ST25R3911B NFC Development Kit, NFC Reader, AT32F413RCT7 Controller, Multi NFC Protocols is an advanced tool designed for the development and learning of NFC applications. It integrates the ST25R3911B NFC chip and the AT32F413RCT7 controller, providing robust support for multiple NFC protocols. The kit is equipped with a 1.3-inch OLED display, user buttons, and various interfaces, making it suitable for applications requiring high RF performance, flexibility, and low power consumption.
This development kit is ideal for sectors such as access control, ticketing, industrial applications, medical treatment, and consumer products. It features a differential antenna design that delivers up to 1.4W of output power, ensuring a longer sensing distance. The embedded low-power capacitive sensor allows for capacitive wakeup, detecting nearby cards without activating the reader's magnetic field.
The AT32F413RCT7 controller facilitates easy learning and integration, eliminating the need for additional external controllers. The kit also includes onboard SRAM for additional memory space, a micro SD slot for data storage, and a customized acrylic case for protection and aesthetics. Debugging is made convenient with four user buttons, two user indicators, and an onboard programming interface.
Note: Ensure proper handling to avoid damage to the electronic components.
1x Waveshare ST25R3911B NFC Development Kit, NFC Reader, AT32F413RCT7 Controller, Multi NFC Protocols
Differential antenna design with output power up to 1.4W for longer sensing distance
Embedded low-power capacitive sensor for sensing and capacitive wakeup without enabling the magnetic field
AT32F413RCT7 controller for easy learning, evaluation, or direct integration without external controllers
1.3" OLED display for visual operation
Onboard SRAM provides additional space to the internal RAM
Micro SD slot supports external TF card for data storage and NFC transfer
Includes 4 buttons and 2 user indicators for convenient debugging
Onboard programming interface and UART debugging interface
Breakout of all unused IO pins for connecting other peripherals
Customized acrylic case for protection and aesthetics
NFC chip: ST25R3911B
Operating frequency: 13.56MHz
Maximum output power: 1.4W
Communication interface: SPI
Power supply voltage: 5V
Operating voltage: 3.3V
Core: ARM® 32-bit Cortex™-M4F
Operating frequency: 200MHz
Operating voltage range: 2.0V-3.6V
Package type: LQFP64
Memory: 256kB Flash, 160kB SRAM
Communication interfaces: 2 x SPI, 5 x USART, 2 x I2C, 2 x CAN, 1 x USB, 1 x SDIO
AD & DA converters: 2 x AD (12-bit, shares 16 channels)
23LC1024: SRAM, 1Mbit
CP2102: USB to UART converter for debugging
SPX3819: 3.3V voltage regulator
1.3" OLED: blue display, 128×64 pixels, SH1106 driver
4 user buttons
2 user indicators
MCU unused pins
USB to UART port
Micro SD slot
SWD programming interface
NFC induction coil
UART pin configuration: RXD connected to RXD2 by default, changeable to RXD1 via 0Ω resistor; TXD connected to TXD2 by default, changeable to TXD1 via 0Ω resistor
