Description

  • Waveshare ST-LINK/V2 STM Programmer & Debugger (CN)
  • Facilitates STM8/STM32 debugging and programming
  • Supports USB 2.0 full-speed connectivity
  • Ensures versatile connectivity with JTAG/SWIM cables
  • Operates between 1.65 V to 5 V application voltages
  • Features a direct firmware update capability

The Waveshare ST-LINK/V2 STM Programmer & Debugger (CN) is an advanced tool designed for in-circuit debugging and programming of STM8 and STM32 microcontroller families. It facilitates communication with microcontrollers on an application board through the single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces. For STM8 applications, it connects via a USB full-speed interface to STMicroelectronic's ST Visual Develop or ST Visual Program software. STM32 applications utilize the same interface to connect with integrated development environments such as Atollic, IAR, Keil, or TASKING.

The device is powered through a USB connector and is compatible with USB 2.0 full-speed interfaces. It includes a USB standard A to mini B cable for connectivity. The SWIM interface supports application voltages from 1.65 V to 5 V and offers both low-speed and high-speed modes, with programming speeds of 9.7 Kbytes/s and 12.8 Kbytes/s, respectively. The JTAG interface supports application voltages from 1.65 V to 3.6 V and includes 5 V tolerant inputs. A direct firmware update feature is supported, and a status LED provides visual feedback on communication status with the PC.

The product package includes a 20-pin JTAG/SWD flat ribbon and two SWIM cables for versatile connectivity options. The operating temperature range is from 0 to 50 °C, ensuring reliable performance in various environments.

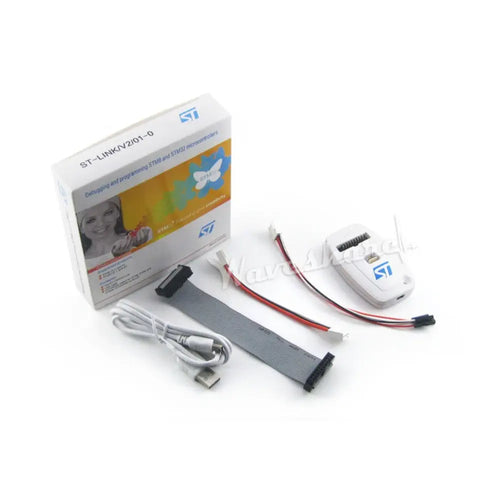

  • 1x Waveshare ST-LINK/V2 STM Programmer & Debugger (CN)
  • 1x USB Type A to Mini-B cable
  • 1x 20-pin JTAG/SWD flat ribbon
  • 1x 4-pin SWIM cable
  • 1x 4-pin SWIM custom connector cable

Website

  • ST-LINK/V2 (CN), STM Programmers & Debuggers - ST-LINK/V2 Wiki
    • 5 V power supplied via USB connector
    • USB 2.0 full-speed compatible interface
    • USB standard A to mini B cable
    • SWIM specific features:
      • 1.65 V to 5 V application voltage supported on SWIM interface
      • SWIM low-speed and high-speed modes supported
      • SWIM programming speed: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed
      • SWIM cable for connection via ERNI standard vertical or horizontal connector
      • SWIM cable for connection via pin header or 2.54 mm pitch connector
    • JTAG specific features:
      • 1.65 V to 3.6 V application voltage supported on JTAG interface with 5 V tolerant inputs
      • JTAG cable for connection to standard JTAG 20-pin pitch 2.54 mm connector
    • Direct firmware update feature supported (DFU)
    • Status LED blinks during communication with the PC
    • Operating temperature range: 0 to 50 °C
