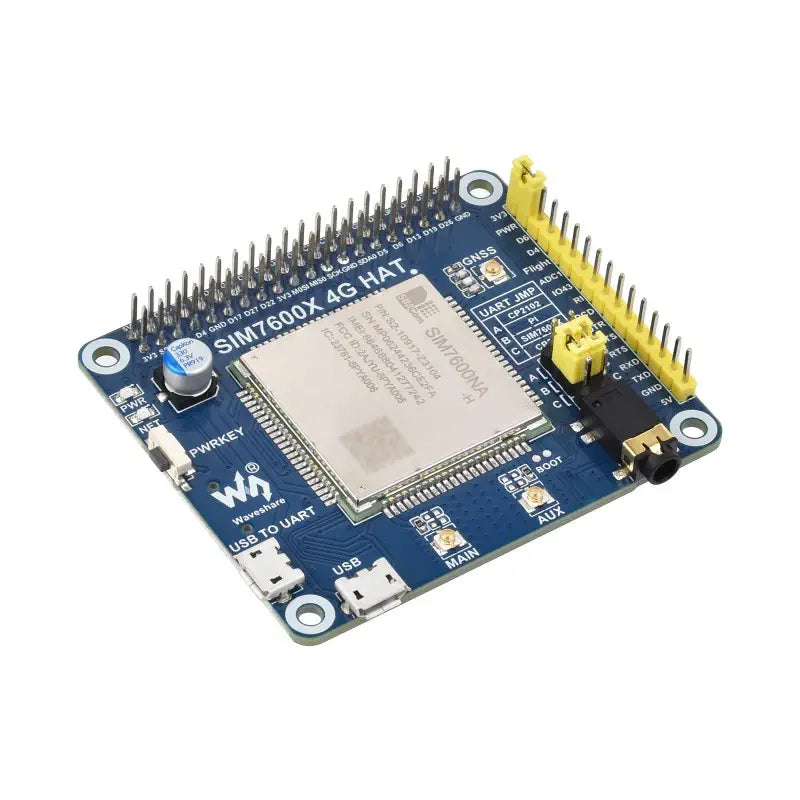

Waveshare SIM7600NA-H 4G HAT for Raspberry Pi, LTE Cat-4 4G Support (NA)

WaveshareSKU: RB-Wav-1685
Manufacturer #: SIM7600NA-H 4G HAT

Price  :
Sale price $104.27

Shipping calculated at checkout.

Stock  :

Re-stocking soon See due date

Notify me when this product is in stock

Payments and Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Waveshare SIM7600NA-H 4G HAT for Raspberry Pi, LTE Cat-4 4G Support, GNSS Positioning (North America)
  • Enable advanced LTE Cat-4 4G communication
  • Support GNSS with GPS, BeiDou, and Glonass
  • Integrate easily with Raspberry Pi boards
  • Configure voltage to 3.3V or 5V via jumper
  • Operate effectively between -30 to 80 °C

The Waveshare SIM7600NA-H 4G HAT for Raspberry Pi, LTE Cat-4 4G Support, GNSS Positioning (North America) enables advanced LTE Cat-4 4G communication and GNSS positioning capabilities. It is designed to integrate seamlessly with Raspberry Pi series boards and Jetson Nano, providing a versatile solution for various applications. The HAT supports various communication protocols, including TCP, UDP, HTTP, and FTP, and offers GNSS positioning through GPS, BeiDou, Glonass, GALILEO, QZSS, and LBS base station systems.

This device features a standard Raspberry Pi 40-pin GPIO extension header and an onboard USB interface for testing AT Commands and obtaining GPS positioning data. It includes a CP2102 USB to UART converter for serial debugging and breakout UART control pins for connecting with host boards such as Arduino and STM32. The SIM card slot accommodates 1.8V/3V SIM cards, and an onboard audio jack facilitates telephone calls.

The HAT is equipped with two LED indicators for monitoring operational status and a voltage translator that allows configuration of the operating voltage to either 3.3V or 5V. It supports a baud rate range from 300bps to 4Mbps, with autobauding capabilities. The device is controlled via AT commands and supports the SIM application toolkit, making it suitable for applications in healthcare, smart payment, environmental monitoring, and more.

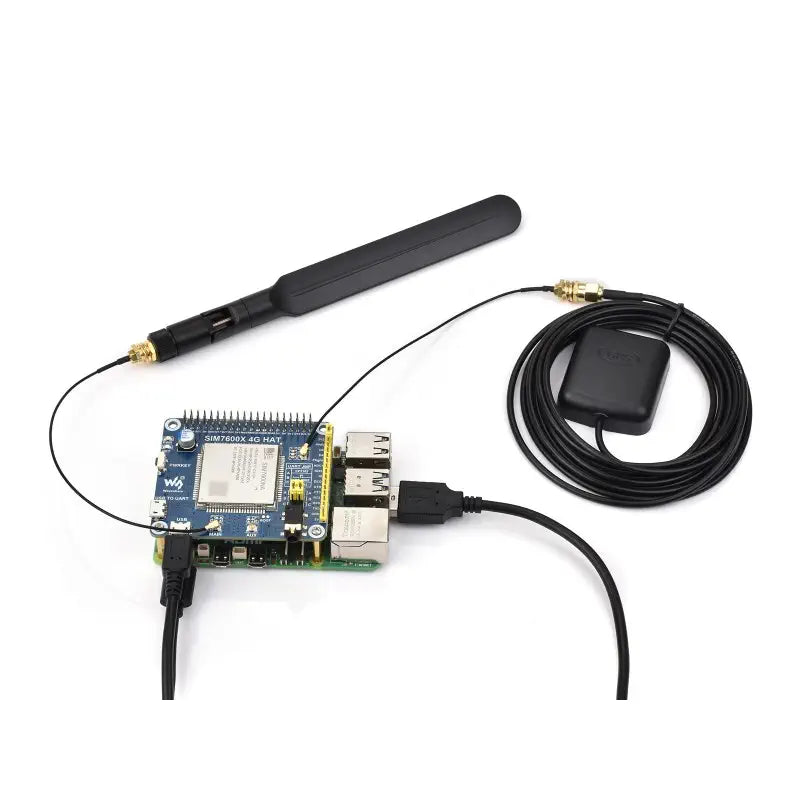

  • 1x Waveshare SIM7600NA-H 4G HAT for Raspberry Pi, LTE Cat-4 4G Support (NA)
  • 1x SMA Antenna
  • 1x GPS External Antenna (A)
  • 2x USB Type A plug to micro plug cable
  • 2x RPi screws pack

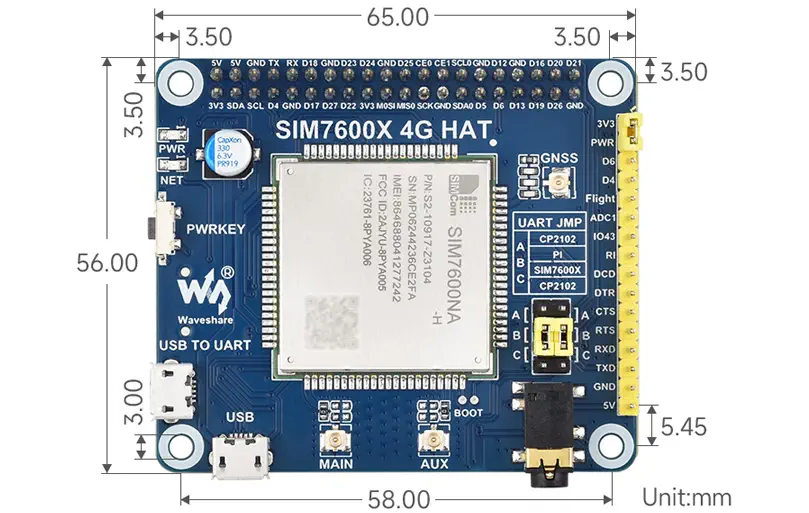

  • 56 x 65 mm (L x W)

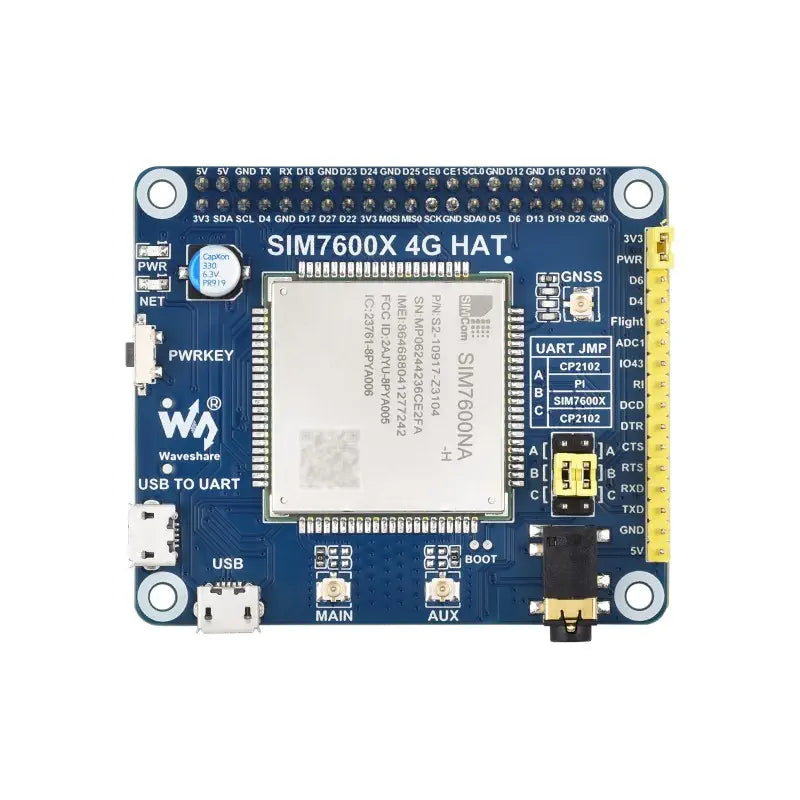

  • Standard Raspberry Pi 40-pin GPIO extension header
  • Supports GPS, BeiDou, GLONASS, GALILEO, QZSS, and LBS base station positioning
  • Onboard USB interface for testing AT commands and GPS positioning data
  • Onboard CP2102 USB to UART converter for serial debugging
  • SIM card slot supporting 1.8V/3V SIM cards
  • Onboard audio jack and audio decoder for making telephone calls
  • Two LED indicators for monitoring operating status
  • Onboard voltage translator, configurable to 3.3V or 5V
  • Baud rate: 300 bps to 4 Mbps (default: 115200 bps)
  • Autobauding baud rate: 9600 bps to 115200 bps
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
  • Frequency band: LTE Cat-4, LTE-FDD: B2/B4/B5/B12/B13/B14/B25/B26/B66/B71, LTE-TDD: B41
  • GNSS receiver type: 16-channel
  • Sensitivity: -159 dBm (GPS) / -158 dBm (GLONASS)
  • Power supply: 5V
  • Operating voltage: 5V / 3.3V (configured via jumper)
  • Operating temperature: -30 to 80 °C
  • Storage temperature: -45 to 90 °C

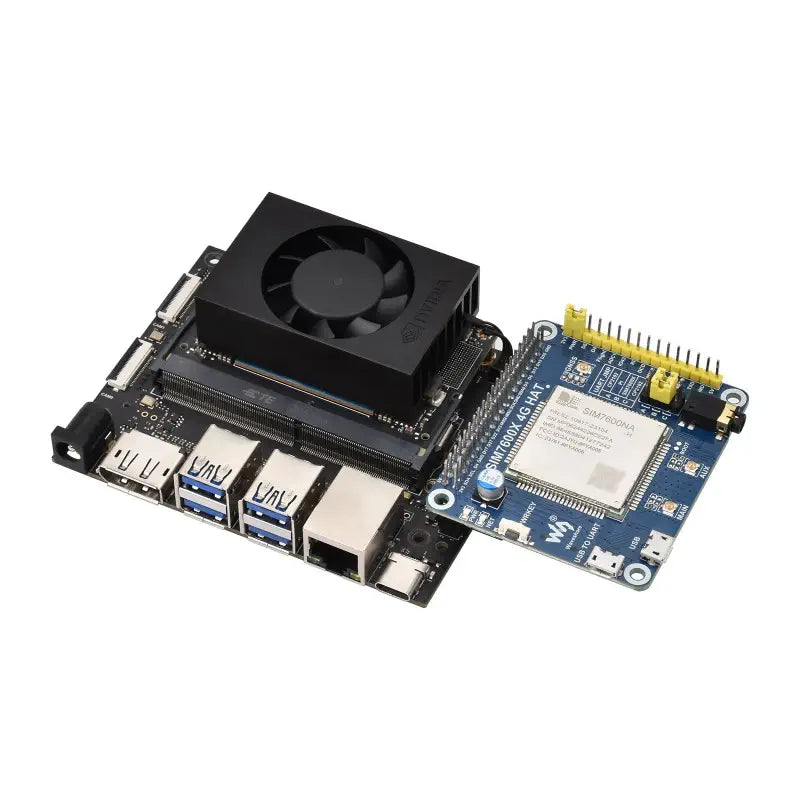

  • Compatible with Raspberry Pi series boards and Jetson Nano
  • Weight: 190 g
