Waveshare Pico-Eval-Board Overall Evaluation Board for Raspberry Pi Pico, Misc Onboard Components
Features a 3.5-inch vivid resistive touch screen
Supports Raspberry Pi Pico series with a standard header
Integrates micro SD card slot for faster data access
Includes CP2102 USB to UART converter and PCM5101A audio DAC
Provides development resources for C++ and MicroPython
The Waveshare Pico-Eval-Board Overall Evaluation Board for Raspberry Pi Pico, Misc Onboard Components is a comprehensive evaluation solution tailored for the Raspberry Pi Pico. It features a 3.5-inch resistive touch screen with a vibrant 65K color display, providing a clear and vivid visual experience. This board is designed to facilitate the exploration of nearly every on-chip peripheral of the RP2040, streamlining the process by eliminating complex wiring.

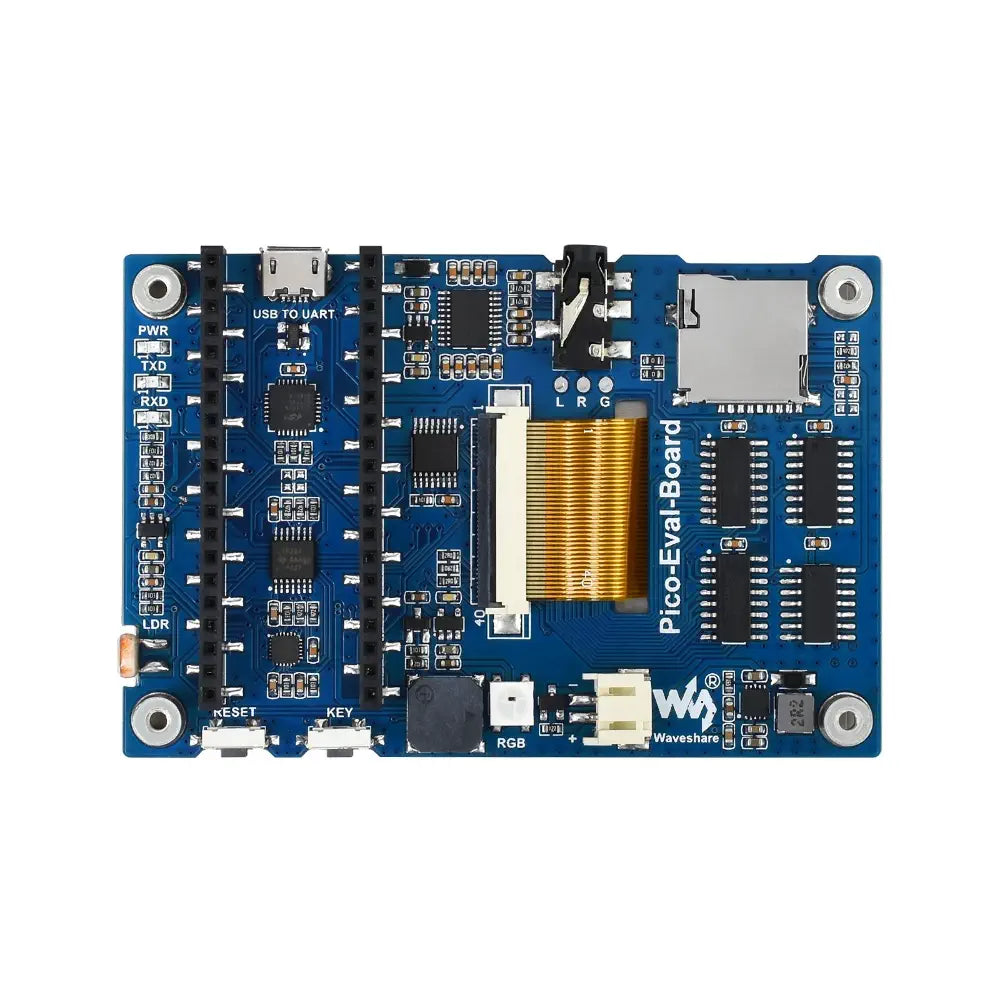

The board includes a standard Raspberry Pi Pico header, ensuring compatibility with the Raspberry Pi Pico series. It is equipped with a micro SD card slot utilizing the SDIO interface for faster data access, a 3.5mm audio jack for audio peripherals, and a battery header with a recharge circuit, allowing for operation without a wired power supply. Additional resources include a buzzer, photoresistor, and RGB LED, enhancing its functionality.
Development resources and manuals are provided, supporting both C++ and MicroPython examples, making it an ideal choice for users seeking to quickly engage with the Raspberry Pi Pico and RP2040 chip. The board's design incorporates various components such as a CP2102 USB to UART converter, a PCM5101A stereo audio DAC chip, and an ICM20948 9-axis motion sensor, among others, to ensure robust performance and versatility in applications.
1x Waveshare Pico-Eval-Board Overall Evaluation Board for Raspberry Pi Pico, Misc Onboard Components
1x Standoff pack
86.00 x 57.20 mm
Standard Raspberry Pi Pico header, compatible with Raspberry Pi Pico series boards
3.5-inch resistive touch screen with 65K colors for a clear and vivid display
Standard 3.5mm audio jack for headphones or other audio peripherals
Micro SD card slot via SDIO interface for faster access speed than SPI interface
Integrated battery header and recharge circuit for operation without a wired power supply
Includes additional components such as a buzzer, photoresistor, and RGB LED
Comes with development resources and manual, including Raspberry Pi Pico C++ and MicroPython examples
65K colorful IPS touch screen
IPS panel for better display details and more vivid colors
Operating voltage: 5V
Resolution: 480×320 pixels
Touch type: Resistive
Display colors: 65K
Communication bus: SPI
Onboard female pin header for direct attachment to Raspberry Pi Pico
CP2102 USB to UART converter
SP0503 diode for ESD protection
PCM5101A stereo audio DAC chip for analog audio output
74HC4040 counter chip for clock frequency division
74HC04D inverter chip
74HC4094 serial to parallel data converter
ETA6096 battery recharger with 1A recharging current
ICM20948 9-axis motion sensor for posture sensing
LSD0204 voltage level translator for safe communication between chips with different operating voltages
XPT2046 resistive touch controller
W2812B RGB LED
Passive buzzer with controllable sound frequency
User key, a user-defined key connected to GP2
Reset key for Pico reset
Photoresistor for converting light intensity to voltage signal and measuring light intensity
