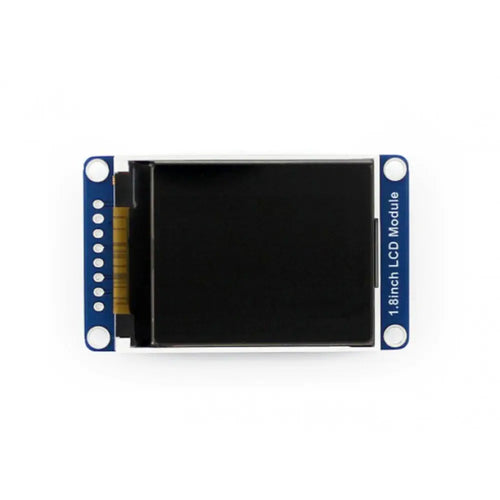

The Waveshare General 1.8" LCD Display Module 128x160 is a versatile display solution featuring a 1.8-inch diagonal screen with a resolution of 128x160 pixels. It integrates an embedded controller and communicates via an SPI interface, minimizing the need for extensive GPIO usage. The module supports RGB color with 65K color depth and operates at a voltage of 3.3V or 5V. It is accompanied by development resources and manuals, providing examples for platforms such as Raspberry Pi, Arduino, and STM32.
1x Waveshare General 1.8" LCD Display Module 128x160
1x 1.8-inch LCD Module
1x PH2.0 20cm 8-pin
56.5 x 34.0 mm
SPI interface requires minimal GPIO for control
Includes development resources and manual with examples for Raspberry Pi, Arduino, and STM32
Driver: ST7735S
Interface: SPI
Display color: RGB, 65K colors
Resolution: 128x160
Backlight: LED
Operating voltage: 3.3V/5V
Interface connections:
VCC: Power (3.3V/5V input)
GND: Ground
DIN: SPI data input
CLK: SPI clock input
CS: Chip selection, active low
DC: Data/Command selection (high for data, low for command)
