Offers customizable I/O port access with expansion connectors

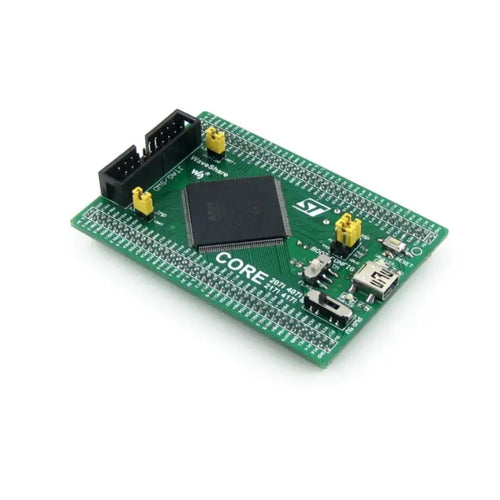

The Waveshare Core407I STM32F4 Core Board is a compact development platform featuring the STM32F407IGT6 microcontroller, designed for initiating application development within the STM32F family. This board integrates essential components such as a USB communication interface, JTAG/SWD programming and debugging interface, clock circuit, and USB power management. It also includes a boot mode selection feature, making it a comprehensive, ready-to-run system.
The board is equipped with pin headers on the backside, allowing it to be easily integrated into application boards, serving as the MCU core circuit. All input/output ports are accessible via these pin headers, which are designed with a 2.0mm pitch to minimize PCB size. The STM32F407IGT6 microcontroller offers high performance with a Cortex-M4 32-bit RISC core, operating at a frequency of 168MHz. It supports a wide range of communication interfaces, including SPI, USART, UART, I2S, I2C, FSMC, SDIO, CAN, USB 2.0, and Ethernet MAC.
Additional features include AD and DA converters, a power supply switch, a boot mode switch, power indicators, and a reset button. The board also supports USB communication as both a device and a host, with the capability to connect to USB devices via an OTG cable. Expansion connectors provide access to all I/O ports, VCC, and GND, facilitating further development and customization.
AMS1117-3 (on bottom side), 3.3V voltage regulator
MIC2075 (on bottom side), onboard USB power management device
Power supply switch, powered from 5Vin or USB connection
Boot mode switch, for configuring BOOT0 pin
Power indicator
VBUS LED
Reset button
8M crystal oscillator (on bottom side)
32.768K crystal (on bottom side), for internal RTC with calibration
JTAG/SWD interface: For debugging/programming
USB interface: As DEVICE, used for establishing USB communication between PC and the STM32 development board; As HOST, connecting to USB devices such as USB flash drive through a USB OTG cable
MCU pins expander, VCC, GND, and all the I/O ports are accessible on expansion connectors for further expansion
5Vin pinheader, 5V power supply is required when using USB HOST/OTG
USB HOST/OTG jumper: Short the jumper when using USB HOST/OTG; Open the jumper to disconnect from I/O port
VBAT selection jumper: Short the jumper to use system power supply; Open the jumper to connect the VBAT to external power, such as a battery
VREF selection jumper: Short the jumper to connect VREF+ to VCC; Open the jumper to connect VREF+ to another custom pin via jumper wire
