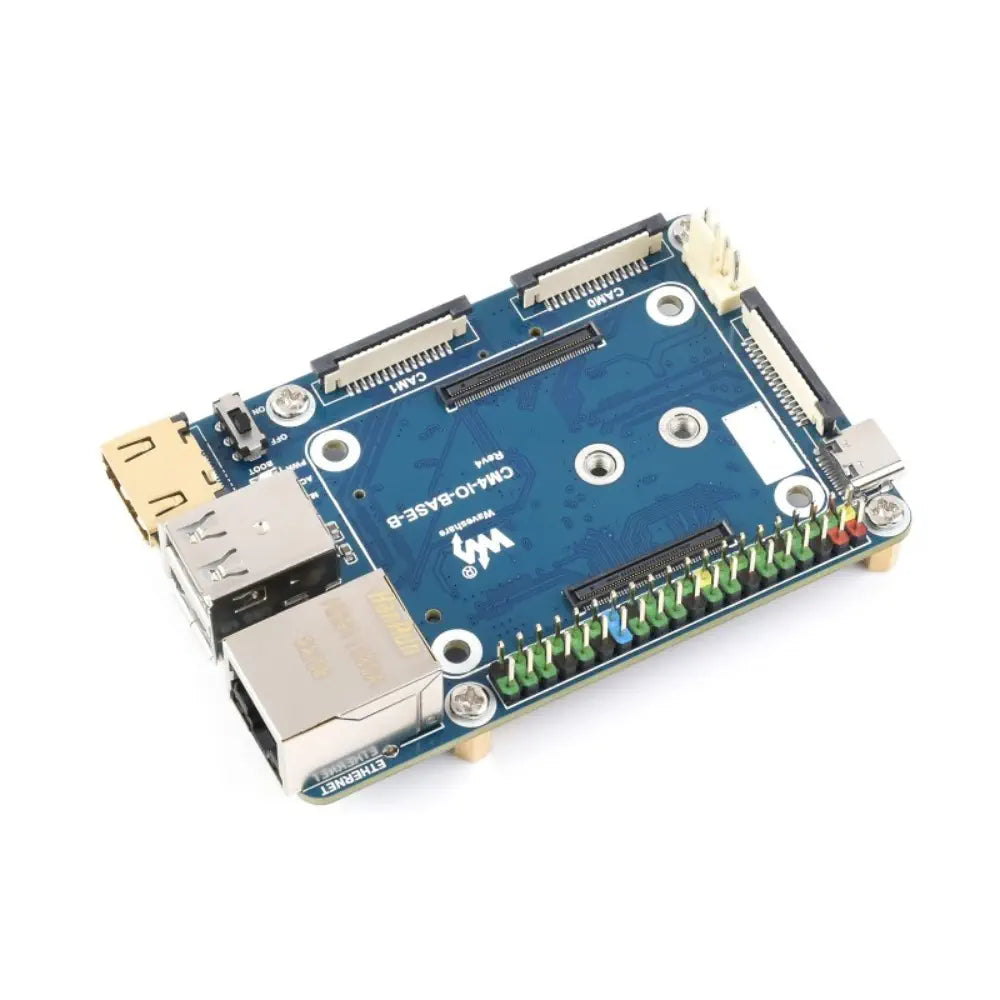

Waveshare CM4-IO-BASE-BOX-B + USB HDMI Adapter for Raspberry Pi Compute Module 4 (US)
Facilitates rapid mini PC assembly for CM4
Enhances connectivity with extra USB and HDMI ports
Supports Gigabit Ethernet and M.2 NVME drives
Includes dual 4K HDMI and MIPI camera ports
Ensures cooling with adjustable fan and aluminum case
The Waveshare CM4-IO-BASE-BOX-B + USB HDMI Adapter for Raspberry Pi Compute Module 4 (US) is a comprehensive mini-computer solution designed specifically for the Raspberry Pi Compute Module 4. This product includes the CM4-IO-BASE-B base board, which facilitates the rapid assembly of a compact computing device. The package is enhanced with an aluminum alloy case, a power supply, and a cooling fan, ensuring optimal performance and durability.
The device expands connectivity options by incorporating additional USB and HDMI ports via flexible flat cables, alongside the USB HDMI adapter. This configuration allows users to easily construct a personalized Raspberry Pi CM4 mini PC, suitable for a variety of applications, including binocular vision projects. The base board supports all variants of the Compute Module 4 and features a Gigabit Ethernet RJ45 connector, an M.2 M key for communication modules or NVME solid state drives, and a Raspberry Pi 40-pin GPIO header.
Additional features include dual MIPI CSI-2 camera ports, a MIPI DSI display port, and dual HDMI ports capable of 4K 30fps output. The real-time clock with a battery socket provides reliable timekeeping, while the TF card socket supports Compute Module 4 Lite variants. The fan header allows for speed adjustment and measurement, ensuring efficient thermal management. The product's precise cut-outs and clear labeling facilitate easy access to all components, including the USB HDMI adapter, and support wall mounting for versatile installation options.
1x Waveshare CM4-IO-BASE-BOX-B + USB HDMI Adapter for Raspberry Pi Compute Module 4 (US)
1x CM4-IO-BASE-B
1x Metal case (top and bottom)
1x Fan-4010-PWM-5V
1x USB HDMI adapter
1x FFC cable 6pin 1.0 pitch 60mm
1x FFC cable 20pin 0.5 pitch 60mm
1x USB-A to USB-C cable 1m
1x Solid state drives mounting screw
1x 5V 3A USB-C power adapter
1x Screws pack
1x Screwdriver
85 x 56 mm
CM4 socket compatible with all variants of Compute Module 4
Networking: Gigabit Ethernet RJ45 connector
M.2 M key supports communication modules or NVME solid-state drives
Connector: Raspberry Pi 40PIN GPIO header
USB 2.0 Type A × 2, USB 2.0 via FFC connector × 2
Display: MIPI DSI display port (15-pin 1.0mm FPC connector)
Camera: MIPI CSI-2 camera port × 2 (15-pin 1.0mm FPC connector)
Video: HDMI port × 2 (including one port via FFC connector), supports 4K 30fps output
RTC: Real-time clock with battery socket and ability to wake Compute Module 4
Storage: TF card socket for Compute Module 4 Lite (without eMMC) variants
Fan header allows speed adjustment and measurement, 5V
