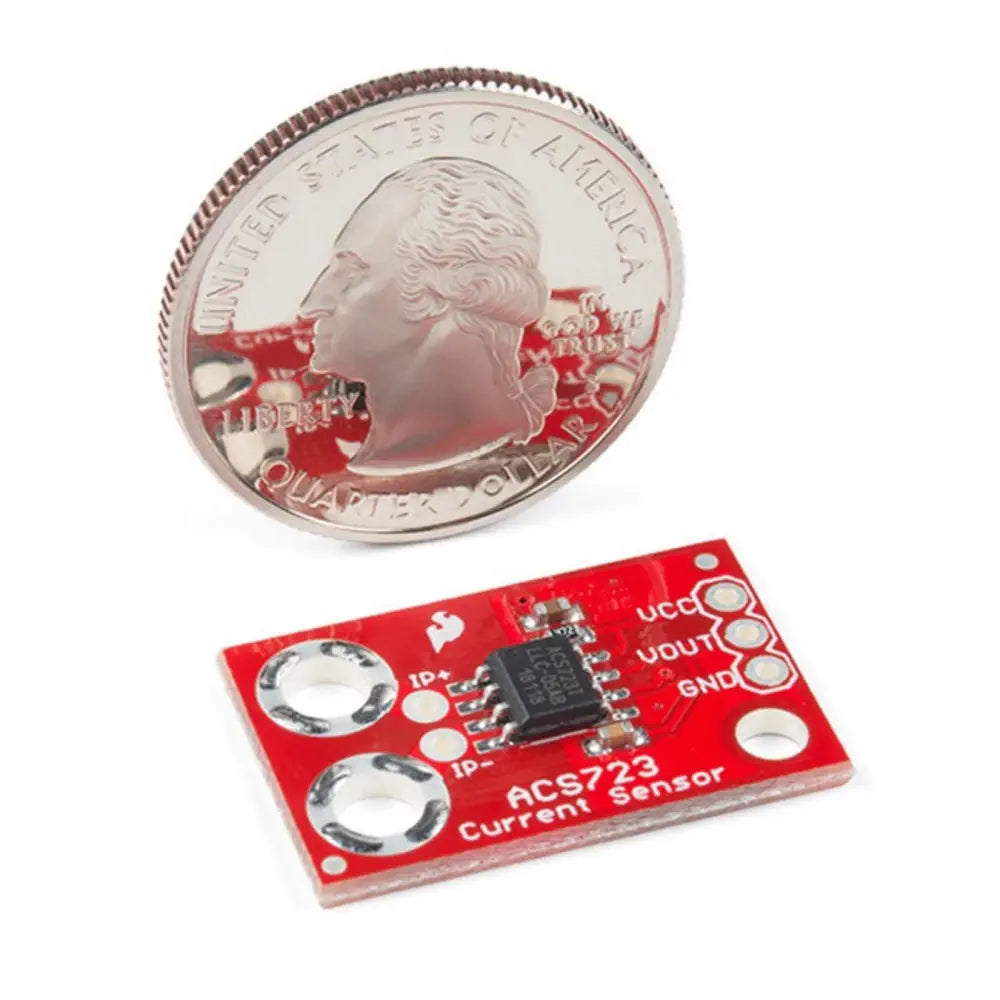

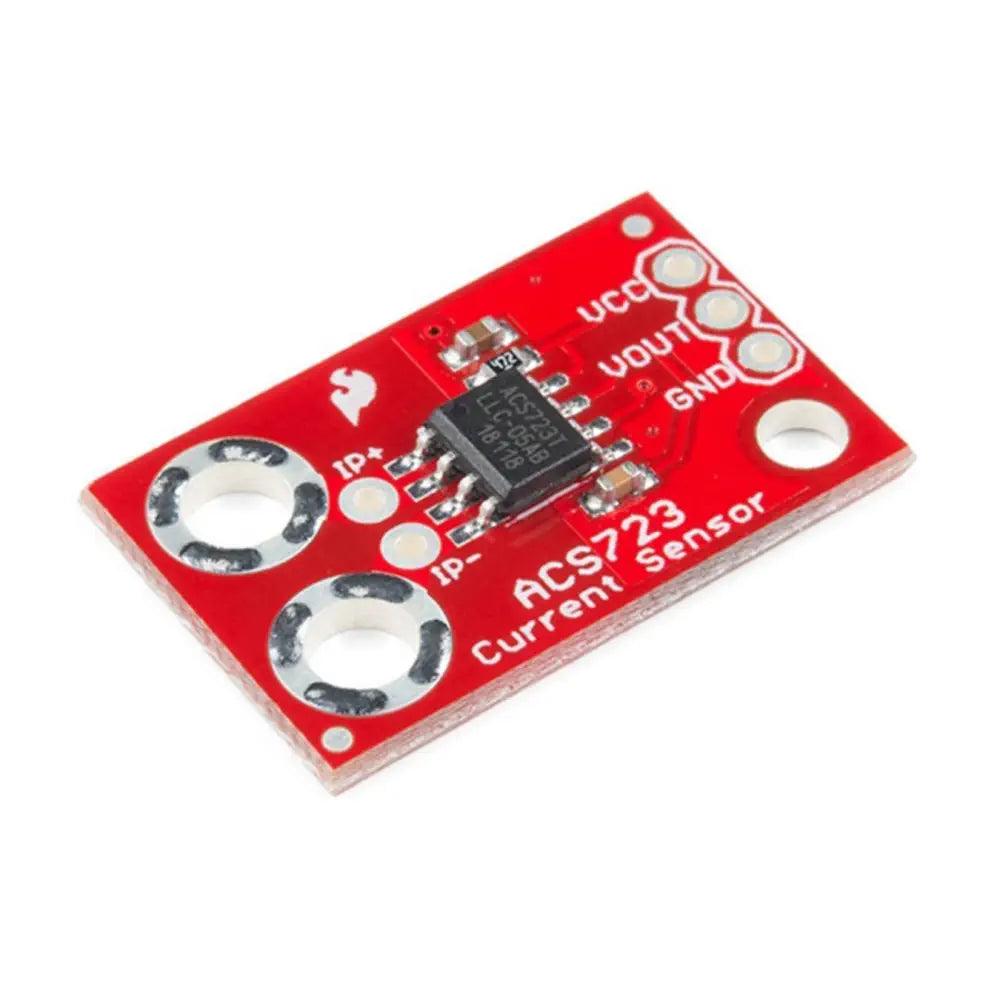

SparkFun Current Sensor Breakout - ACS723 (Low Current)
Description
- High accuracy board that utilizes the ACS723 for moderate AC and DC
- Measures both DC and AC currents all the way up to 5A
- The ACS723 sensor uses a Hall effect sensor to output a voltage

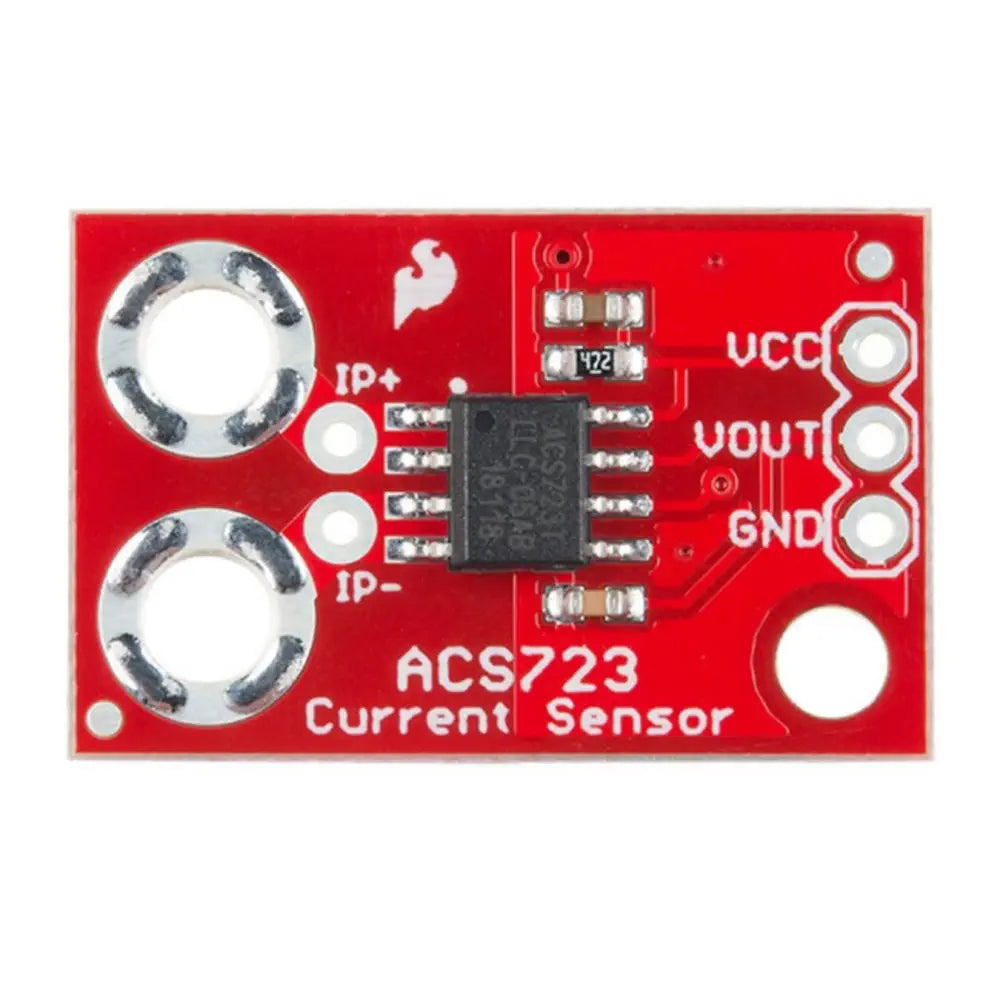

The SparkFun Current Sensor Breakout - ACS723 (Low Current) is a high accuracy board that utilizes the ACS723 for moderate AC and DC current sensing applications. The ACS723 sensor uses a Hall effect sensor to output a voltage relative to the current flowing through the IP+ and IP- pins on the board. The advantage of using a Hall effect sensor, specifically, is that the circuit being sensed and the circuit reading the sensor are electrically isolated meaning that, although your Arduino is running on 5V, the sensed circuit can be operating at higher DC or AC voltages!

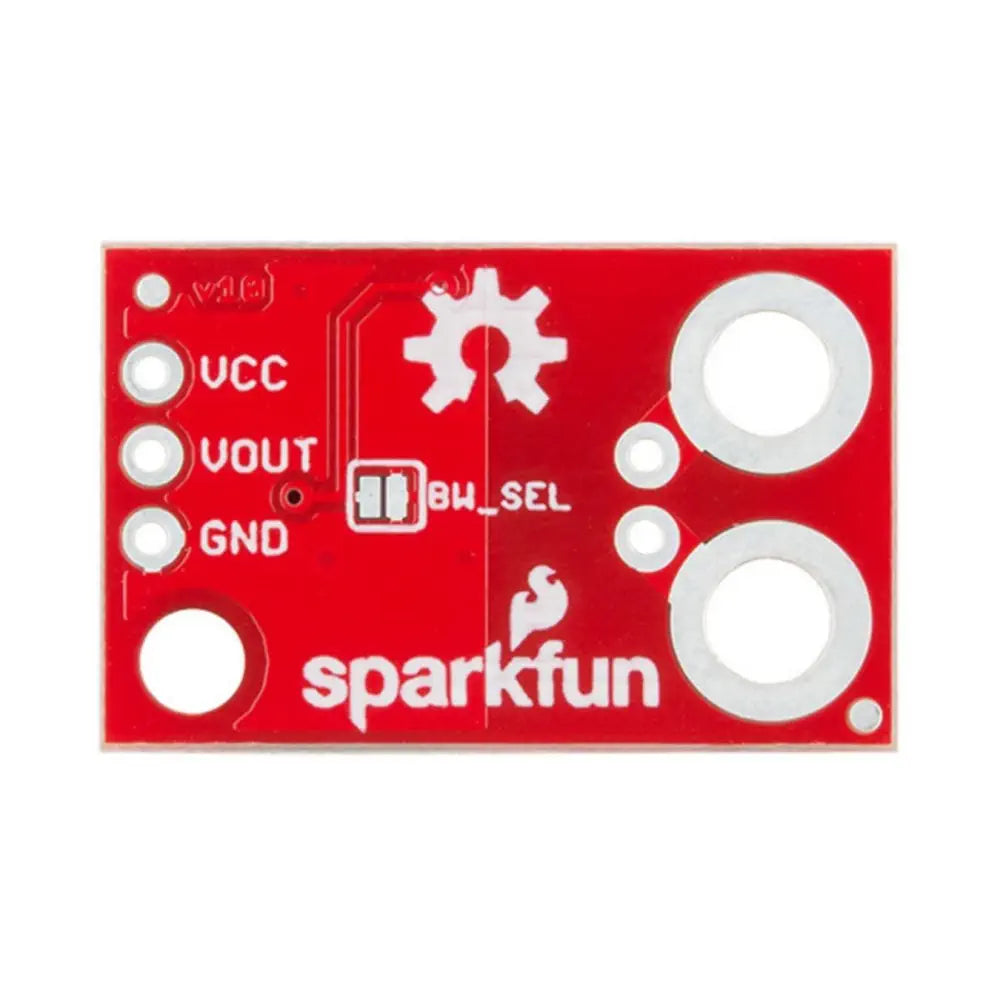

The SparkFun Current Sensor Breakout measures both DC and AC currents all the way up to 5A, has full electrical isolation of measured and sensed circuits, and has a base sensitivity of 400mV/A. Although the analog output is adjustable to 80kHz, the bandwidth on the ACS723 Sensor Breakout width filter has been set to 20kHz to reduce noise when using at high gains. The full 80KHz bandwidth that the sensor is capable of can be recovered by closing the JP1 (Bandwidth Select) jumper on the back of the board.
- 1 x SparkFun Current Sensor Breakout - ACS723 (Low Current)
I have had no luck with other analog current sensors that measure 20A or higher. The output level is highly unreliable,and don't work for currents < 1.5A. Sparkfun has a good name, and this being low-current,I hope to have better luck. Will update report after testing.
Je n'ai pas eu de chance avec d'autres capteurs de courant analogiques qui mesurent 20A ou plus. Le niveau de sortie est très peu fiable et ne fonctionne pas pour des courants <1,5A. Sparkfun a un bon nom, et ceci étant à faible courant, j'espère avoir plus de chance. Mettra à jour le rapport après les tests.
Le capteur de courant ASC723 est simple d'utilisation. Lors des tests, le capteur de courant ASC723 a montré de bons résultats. Sa sensibilité de 400 mV/A offre une meilleure précision de lecture. La stabilité de son alimentation (5Vdc) indique qu'elle a une grande influence sur la précision des lectures de courant. Portez attention aux sources magnétiques à proximité du capteur de courant. Ceux-ci pourraient influencer les lectures. Après une heure d'utilisation sous une charge de 5A, la température de l'ACS723 n'est pas significative. L'ACS723 est un capteur de courant Intéressant à découvrir… The ASC723 current sensor is easy to use. During the tests, the ASC723 current sensor showed good results. Its sensitivity of 400 mV/A provides better reading accuracy. The stability of its power supply (5Vdc) indicates that it has a great influence on the accuracy of the current readings. Pay attention for magnetic sources near of the current sensor. These could influence the readings. After one hour of use under a load of 5A, the temperature of the ACS723 is not significant. The ACS723 is a current sensor Interesting to discover…
The ASC723 current sensor is easy to use. In testing, the ASC723 current sensor showed good results. Its sensitivity of 400 mV / A offers better reading accuracy. The stability of its power supply (5Vdc) indicates that it has a great influence on the accuracy of current readings. Pay attention to magnetic sources near the current sensor. These could influence the readings. After one hour of use under a load of 5A, the temperature of the ACS723 is not significant. The ACS723 is a current sensor Interesting to discover ... The ASC723 current sensor is easy to use. During the tests, the ASC723 current sensor showed good results. Its sensitivity of 400 mV / A provides better reading accuracy. The stability of its power supply (5Vdc) indicates that it has a great influence on the accuracy of the current readings. Pay attention for magnetic sources near of the current sensor. These could influence the readings. After one hour of use under a load of 5A, the temperature of the ACS723 is not significant. The ACS723 is a current sensor Interesting to discover…
