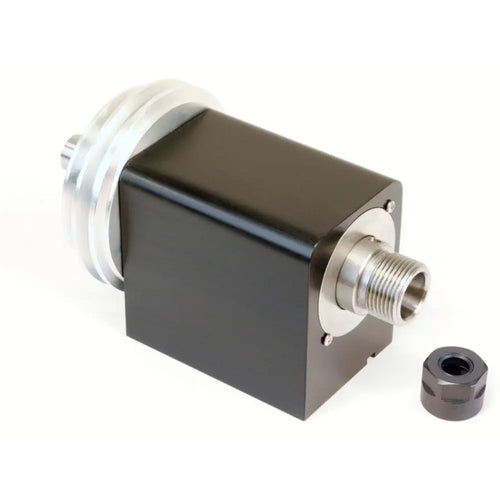

The Sherline Square Headstock w/ Flat Base ER-16 is a precision-engineered component designed for industrial applications, drawing its design from the headstock used in Sherline lathes and milling machines. Constructed from extruded 6061-T6 aluminum, it features a durable black anodized finish. This headstock is equipped with an ER-16 spindle, which is known for its versatility and precision.
The headstock incorporates lifetime lubricated bearings with adjustable preload, ensuring smooth and quiet operation. These Class 5 bearings offer enhanced accuracy and tighter tolerances, allowing for a continuous speed of up to 4,000 RPM, with the potential to reach 10,000 RPM with a slight adjustment in preload settings. The design includes a dust cover for the spindle bearing, although it is not completely sealed, necessitating caution in environments with dust or coolant exposure.
Mounting the headstock is facilitated by two 1/4-20 mounting holes and an alignment key slot on the flat base, ensuring precise positioning on fixtures or machines. The ER-16 collet nut is included with the spindle headstock, providing additional functionality. The headstock's design allows for a .405-inch through hole, accommodating long stock, though it is recommended for light-duty applications.
Note: The spindle is not intended for high RPM rotation of long or out-of-round parts, and exposure to dust or coolant can significantly reduce bearing life.
1x Sherline Square Headstock w/ Flat Base ER-16
1x 10-32 x 3/8″ Flat Point Set Screw
1x Preload Nut
1x Bearing Dust Cover Washer
1x 10-32 x 5/8″ SHCS
Class 5 Headstock Bearings
#2 x 1/4″ Self-Tapping Phillips Head Screws
1x ER-16 Spindle
1x ER-16 collet nut
1x Industrial Headstock Case w/Flat Base
Spindle base size: 76.2 x 53.6 mm (3.0 x 2.11")
Spindle case height: 93.1 mm (3.66")
Spindle centerline height above table: 44.5 mm (1.75")
