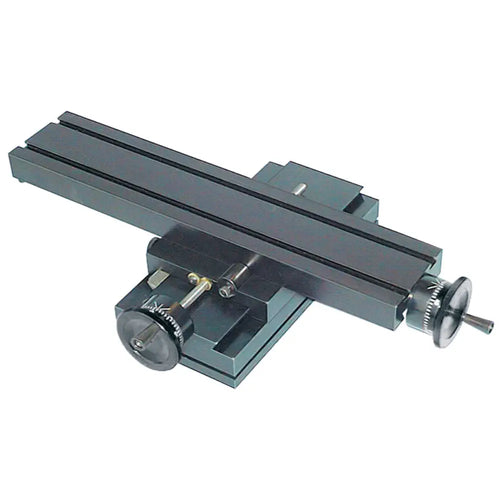

The Sherline 2-Axis X/Y Manual Machine Slide (Metric) is a precision-engineered component derived from the X/Y base of the Sherline miniature milling machine. This manual machine slide facilitates precise movement along two axes, designated as the X-axis and Y-axis, allowing for intricate control over the positioning of the workpiece. The Y-axis enables in-and-out movement, while the X-axis provides side-to-side travel. When mounted vertically, the X-axis remains the same, but the vertical movement is referred to as the Z-axis.
Constructed from durable 6061-T6 aluminum, the slide is finished with a black anodized coating, ensuring both strength and aesthetic appeal. The machine slide is available with table lengths of either 13 inches or 18 inches, and it features a metric leadscrew for precise adjustments. The leadscrews are precision rolled from steel, and the design includes adjustable backlash to maintain accuracy. The dovetailed tables and saddles are equipped with adjustable gibs to eliminate play, enhancing the stability and precision of operations.
The handwheels on the metric slides are graduated in increments of 0.01 mm, allowing for meticulous control over movements. The slide offers versatile mounting options, with provisions for attachment from the bottom using four 1/4-20 holes or from the top with angle clamps. It supports a weight capacity of approximately 10 pounds, depending on the weight distribution and table length, and is designed for a duty cycle of 2080 hours under heavy use.
