Description
- ServoCity Servo-Driven Gear Rack Kit (24lb Thrust, 5.7 in/sec, Single Gear Rack)
- Facilitates efficient linear motion with servo
- Offers 24lb thrust and 5.7 in/sec speed

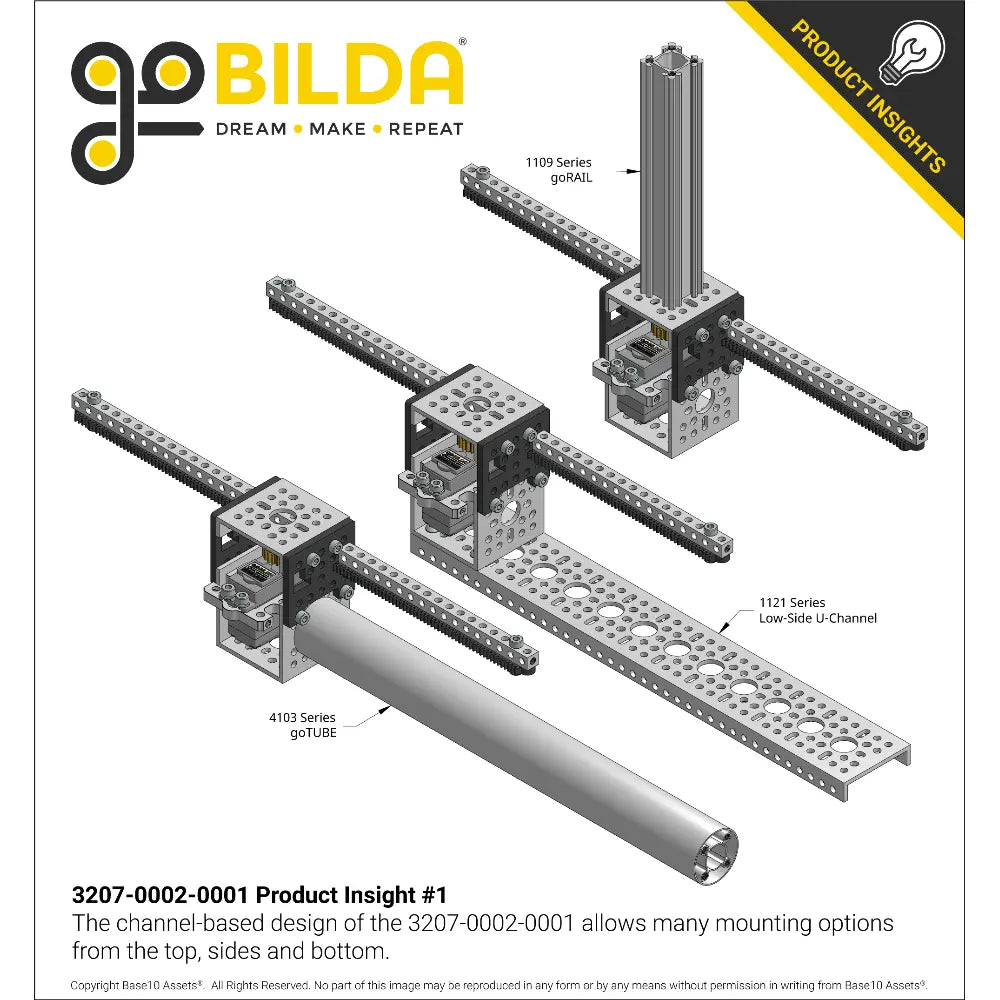

- Allows versatile mounting with goBILDA® system
- Features customizable channel options
- Optimizes for projects requiring back-and-forth motion

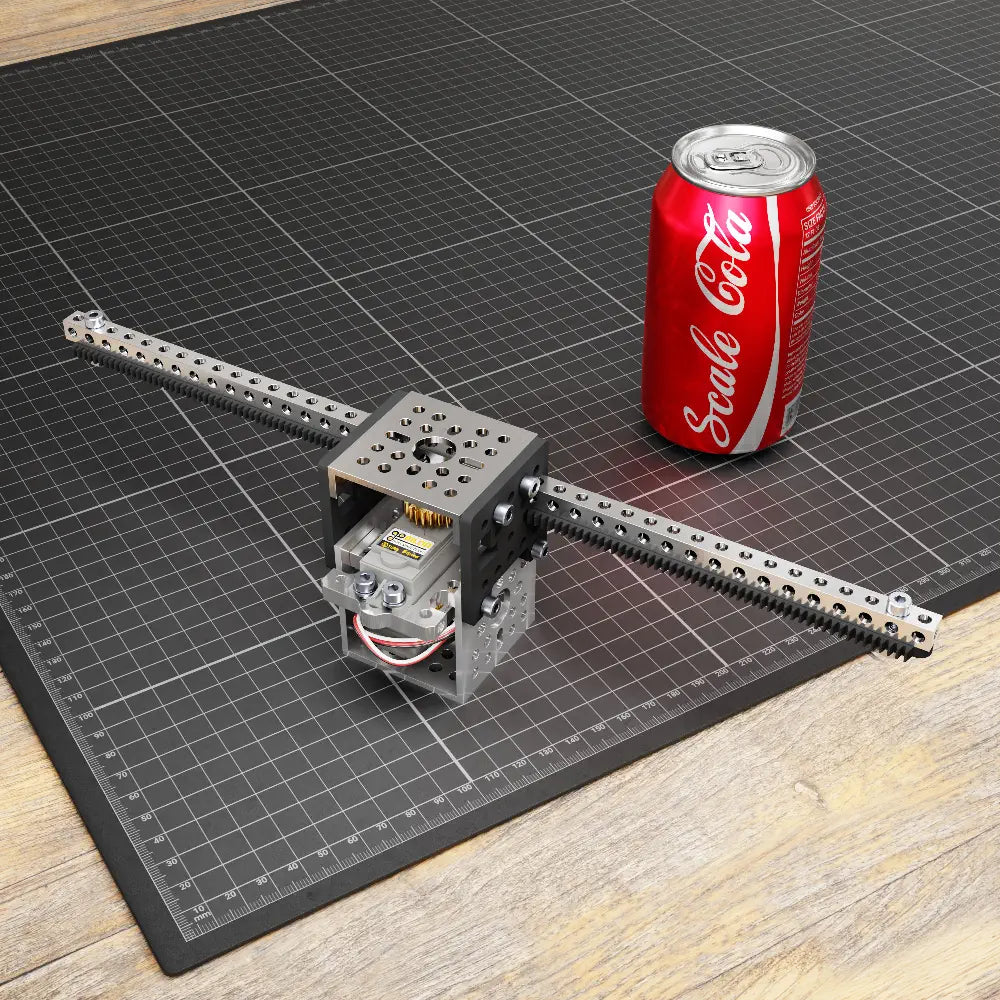

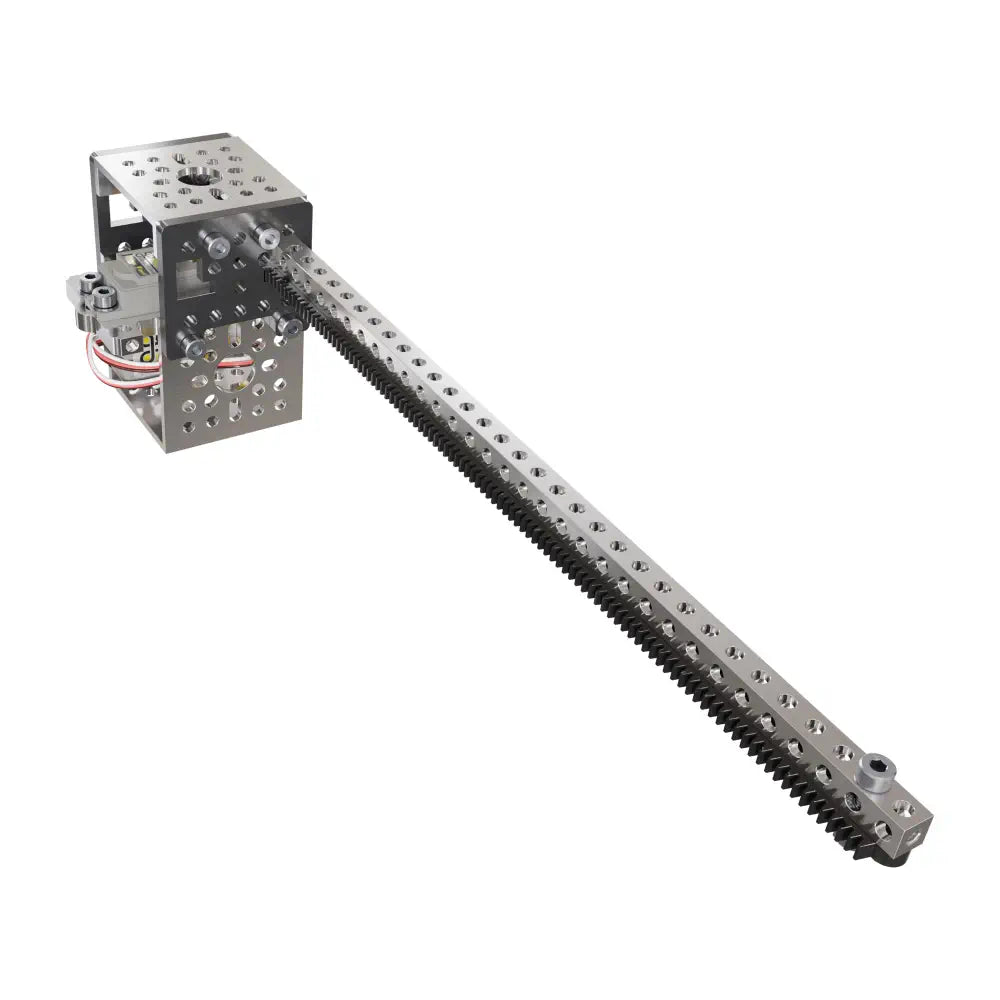

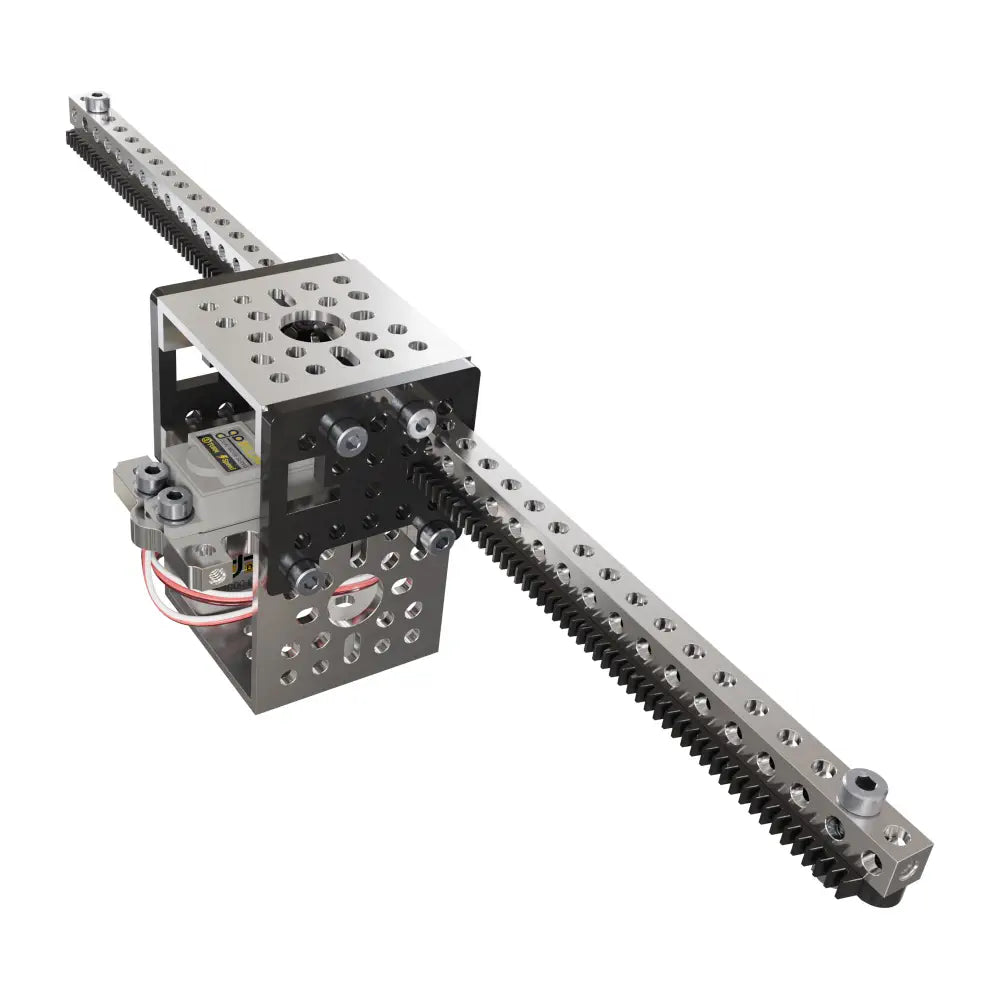

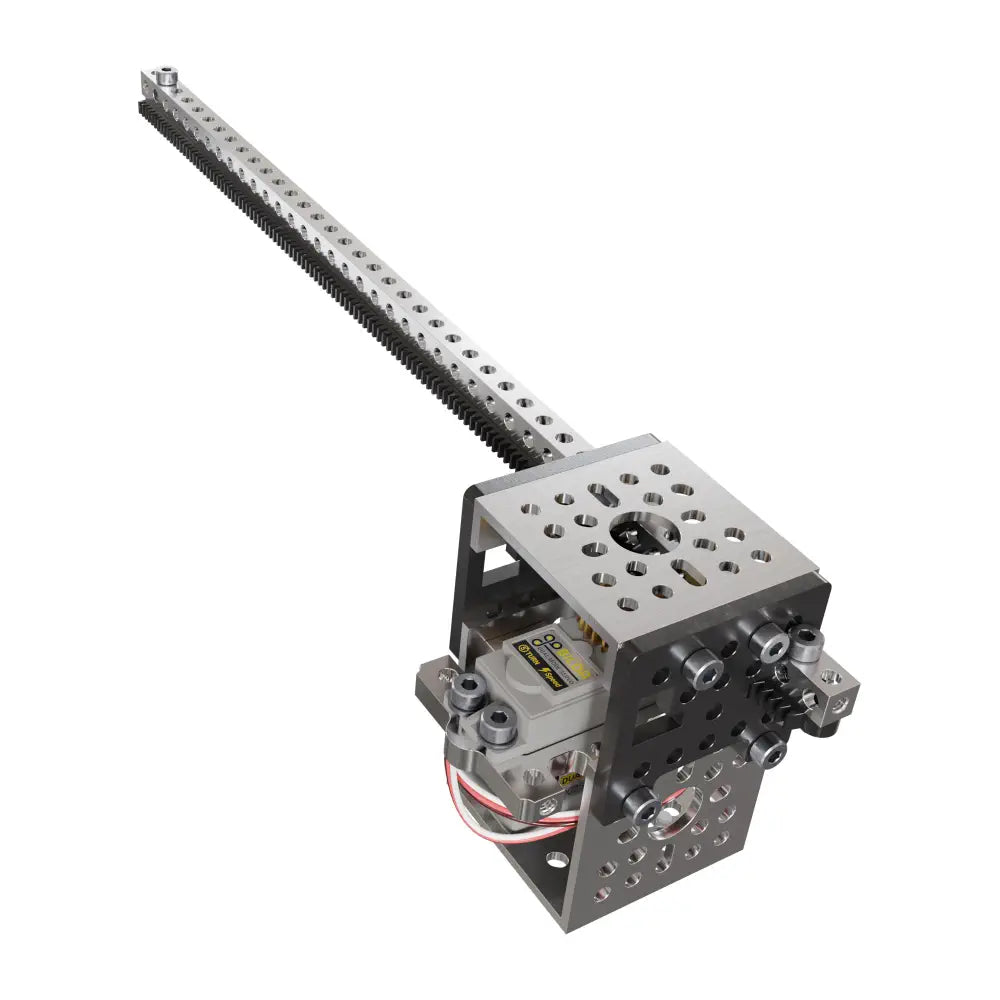

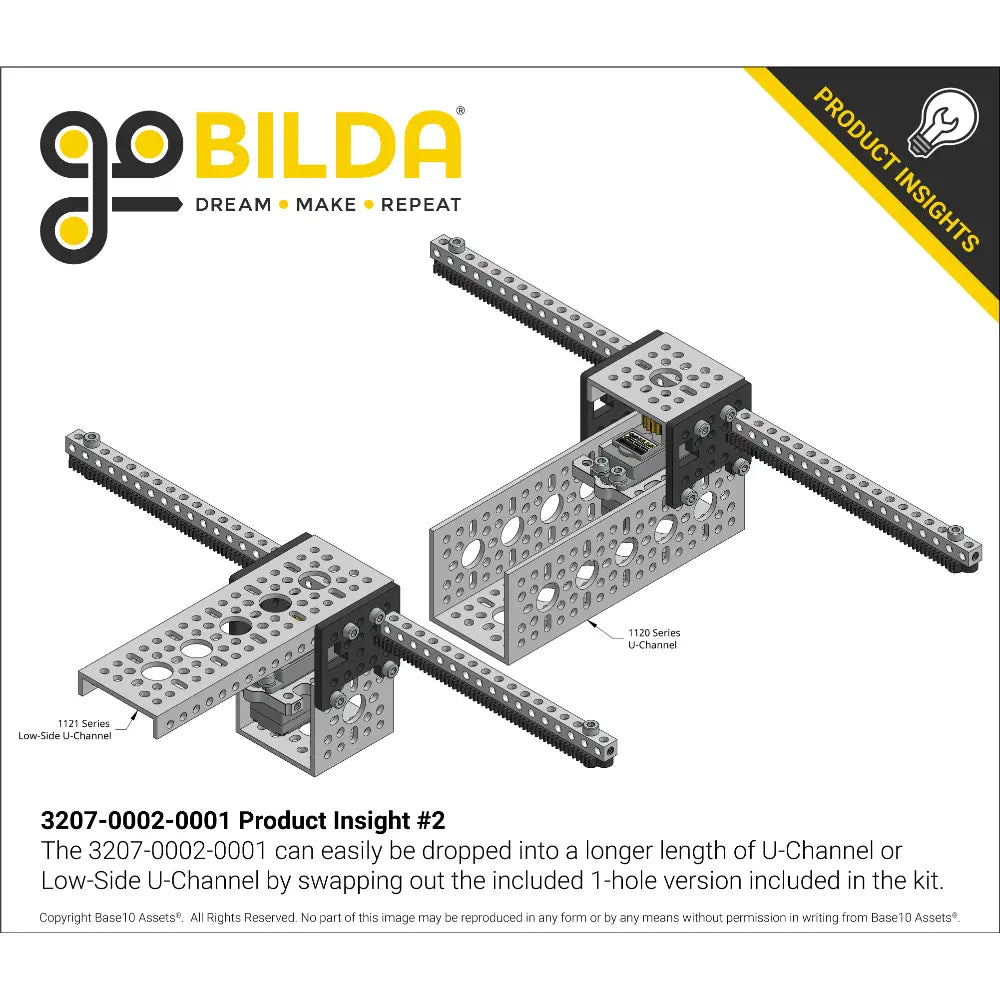

The ServoCity Servo-Driven Gear Rack Kit (24lb Thrust, 5.7 in/sec, Single Gear Rack) facilitates linear motion through the use of a servo, offering a remarkable thrust capability relative to its compact design. This kit is powered by a 5-Turn Dual Mode Speed Servo, delivering a nominal thrust of 24 pounds and a speed of 5.7 inches per second. The single gear rack is securely attached to a Square Beam, which provides extensive attachment options via threaded holes in the goBILDA® 16mm linear pattern. The included U-Channel structure enhances the versatility of mounting possibilities, allowing for a wide range of configurations. The kit's design allows for the substitution of the included channels with other channels from the same series, offering further customization. This product is ideal for projects requiring efficient back-and-forth motion, leveraging the comprehensive attachment capabilities of the goBILDA® system.
- 1x 1106 Series Square Beam (41 Hole, 328mm Length)
- 1x 1120 Series U-Channel (1 Hole, 48mm Length)
- 1x 1121 Series Low-Side U-Channel (1 Hole, 48mm Length)
- 2x 1133 Series Plastic Flat Grid Bracket
- 1x 1802 Series Servo Frame (43mm Width, for Standard Size Servos)
- 1x 2000 Series 5-Turn, Dual Mode Servo (25-3, Speed)
- 1x 2305 Series Brass, MOD 0.8, Servo Gear (25 Tooth Spline, 24 Tooth)
- 1x Acetal MOD 0.8 Gear Rack (118 Tooth, 41 Hole)
- 25x 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 12mm Length)
- 25x 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 18mm Length)
- 25x M4 x 0.7mm Nylock Nut
- Servo included: 2000-0025-0503
- PWM range for full travel: 700 - 2300 μsec
- Travel per μsec: 0.15 mm/μsec
- Pulse amplitude: 3-5V
- Deadband width: 4 μsec
- Motor type: Brushed DC
- Voltage range: 4.8V to 7.4V
- No-load speed at 4.8V: 90 mm/sec (3.54 in/sec)
- No-load speed at 6V: 115 mm/sec (4.53 in/sec)
- No-load speed at 7.4V: 145 mm/sec (5.71 in/sec)
- Speed at peak output power at 4.8V: 45 mm/sec (1.77 in/sec)
- Speed at peak output power at 6V: 57 mm/sec (2.26 in/sec)
- Speed at peak output power at 7.4V: 72 mm/sec (2.85 in/sec)
- Stall thrust at 4.8V: 8.3 kg (18.3 lb)
- Stall thrust at 6V: 9.8 kg (21.6 lb)
- Stall thrust at 7.4V: 11 kg (24.2 lb)
- Thrust at peak output power at 4.8V: 4.1 kg (9.0 lb)
- Thrust at peak output power at 6V: 4.9 kg (10.8 lb)
- Thrust at peak output power at 7.4V: 5.6 kg (12.3 lb)
- No-load current at 4.8V: 190 mA
- No-load current at 6V: 200 mA
- No-load current at 7.4V: 230 mA
- Stall current at 4.8V: 2000 mA
- Stall current at 6V: 2500 mA
- Stall current at 7.4V: 3000 mA
- Current at peak output power at 4.8V: 1000 mA
- Current at peak output power at 6V: 1250 mA
- Current at peak output power at 7.4V: 1500 mA
