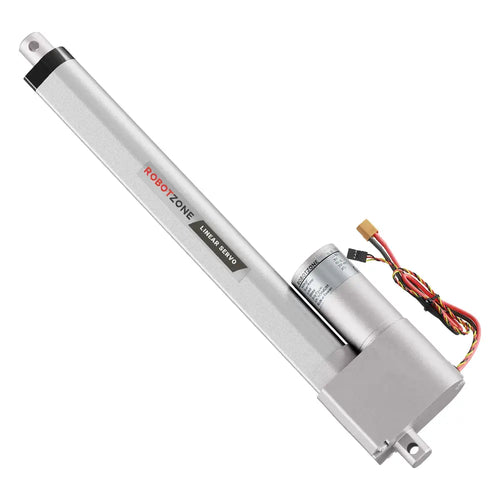

ServoCity Heavy-Duty Linear Servo (Position Control, 12-24V, 112lb Thrust, 0.6"/sec, 10" Stroke)

ServoCitySKU: RB-Sct-1955
Manufacturer #: 3020-0020-0250

Price  :
Sale price $422.52

Shipping calculated at checkout

On Demand See due date

This is an On Demand item and is not normally stocked. We will order it for you along with our next purchase from the supplier.

* Delays depend on the order frequency from each supplier and the approximate arrival date is indicated in the due date. Returns are not accepted on On Demand and Clearance Items except when they are found defective, in which case the product may be repaired or replaced at RobotShop's discretion.

Payments and Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • ServoCity Heavy-Duty Linear Servo (Position Control, 12-24V, 112lb Thrust, 0.6"/sec, 10" Stroke)
  • Delivers 112 lbs of thrust with precision control
  • Operates seamlessly with PWM signal input
  • Ensures accurate positioning via closed-loop feedback
  • Constructed with durable metal for reliable use
  • Supports single power source operation

The ServoCity Heavy-Duty Linear Servo (Position Control, 12-24V, 112lb Thrust, 0.6"/sec, 10" Stroke) is a sophisticated device engineered to provide precise linear motion control. Unlike traditional linear actuators, this linear servo operates by responding to a PWM signal, eliminating the need for a motor controller with a feedback loop. It is designed for seamless integration with a servo controller, requiring no additional tuning or complex wiring. The advanced internal circuitry accepts PWM signals from various controllers, including wired servo controllers, wireless transmitters, and microcontrollers like Arduino. The closed-loop feedback system ensures accurate positioning within its stroke range by continuously monitoring the position via an internal potentiometer and adjusting the motor's power accordingly. The device is powered through a male XT30 connector, which requires a 12V input with a minimum of 5A. This setup allows both the linear servo and the servo controller to operate from a single power source. The linear servo's ACME screw mechanism provides efficient thrust and can handle significant static loads without back-driving, even when power is removed. Constructed with durable metal, the servo offers reliability and can function in any orientation, delivering equal force in both pulling and pushing directions. The mounting clevis near the motor is fixed, while the one on the extension tube can be rotated to suit specific application needs. Note: Ensure proper power supply and connection to prevent operational hazards.

Heavy-Duty Linear Servo Position Control 12-24V 112lb Thrust 10 Stroke

  • 1x ServoCity Heavy-Duty Linear Servo (Position Control, 12-24V, 112lb Thrust, 0.6"/sec, 10" Stroke)
  • Stroke: 10"
  • Retracted Length: 9.94"
  • Extended Length: 15.71"
  • Center to Center Length: 25.65"
  • Stroke: 10 inches
  • Pulse amplitude: 3-5 volts
  • Operating temperature: -20°C to +60°C
  • Deadband width: 8 microseconds
  • Motor type: 3-pole ferrite
  • Feedback style: 10KΩ potentiometer
  • Gear material: Metal gear train, nylon pinion
  • Wire length: Servo lead: 12 inches, power input: 6 inches
  • Wire gauge: Servo lead: 22 AWG, power input: 14 AWG
  • Voltage range (nominal): 12-24 volts
  • Voltage range (maximum): 11-30 volts
  • Speed (no load): 0.59 inches per second
  • Gearbox style: Straight cut spur
  • Connector type: Servo lead: Male servo connector, power input: XT30 connector [FH-MC]
  • Gear ratio: 20:1
  • Speed (max load): 0.39 inches per second
  • Dynamic thrust: 112 pounds
  • Static load: 500 pounds
  • Current drain (no-load): 1 ampere
  • Current drain (max load): 4.5 amperes
  • Potentiometer tolerance: ± 5%
  • Feedback density: 1KΩ per inch
  • IP rating: IP53
  • Duty cycle: 25% on, 75% off
  • Lead screw type: 3mm pitch, single thread
  • Potentiometer linearity: ± 0.25%
  • PWM signal (fully retracted): 1900 microseconds
  • PWM signal (fully extended): 1100 microseconds
  • Current drain (idle): 25 milliamperes
