RobotShopSKU: RB-Lci-06
Manufacturer #: PGS-KT
Price  :
$14.00

Shipping calculated at checkout

Stock  :
In stock, 436 units

Payments and Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Signal generator and sensor soldering kit for a perimeter wire
  • Detection wave frequency can be varied with the on-board potentiometer
  • Can be interfaced with Arduino (0-5V analog output)
  • Perfect for DIY lawnmower robots
  • Requires soldering
  • Perimeter wire is not included

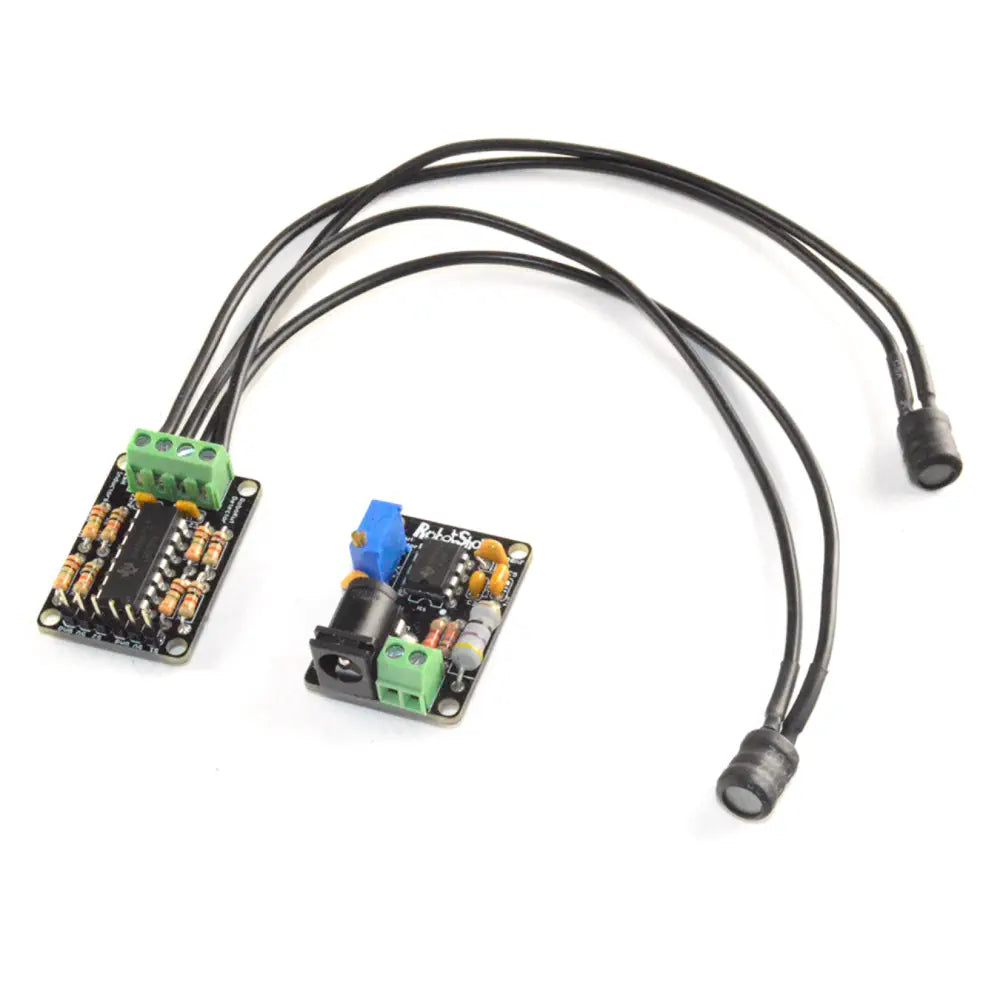

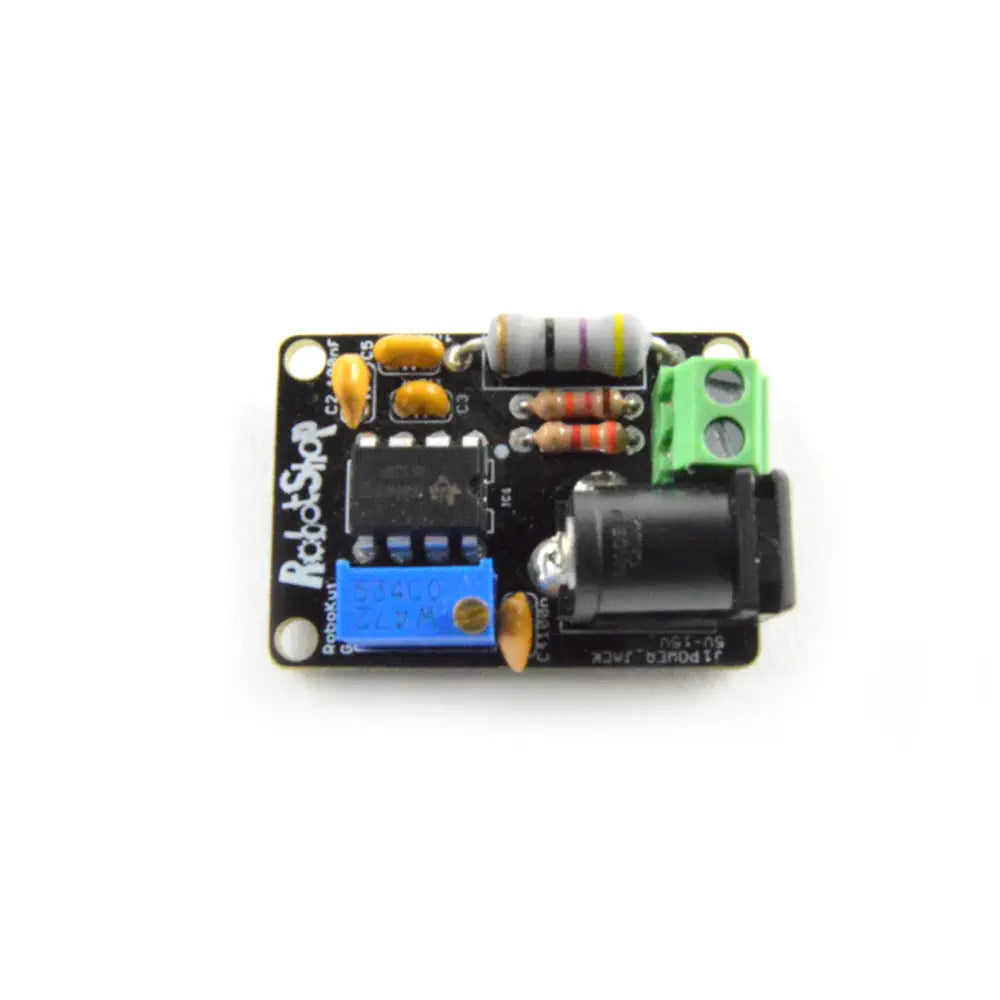

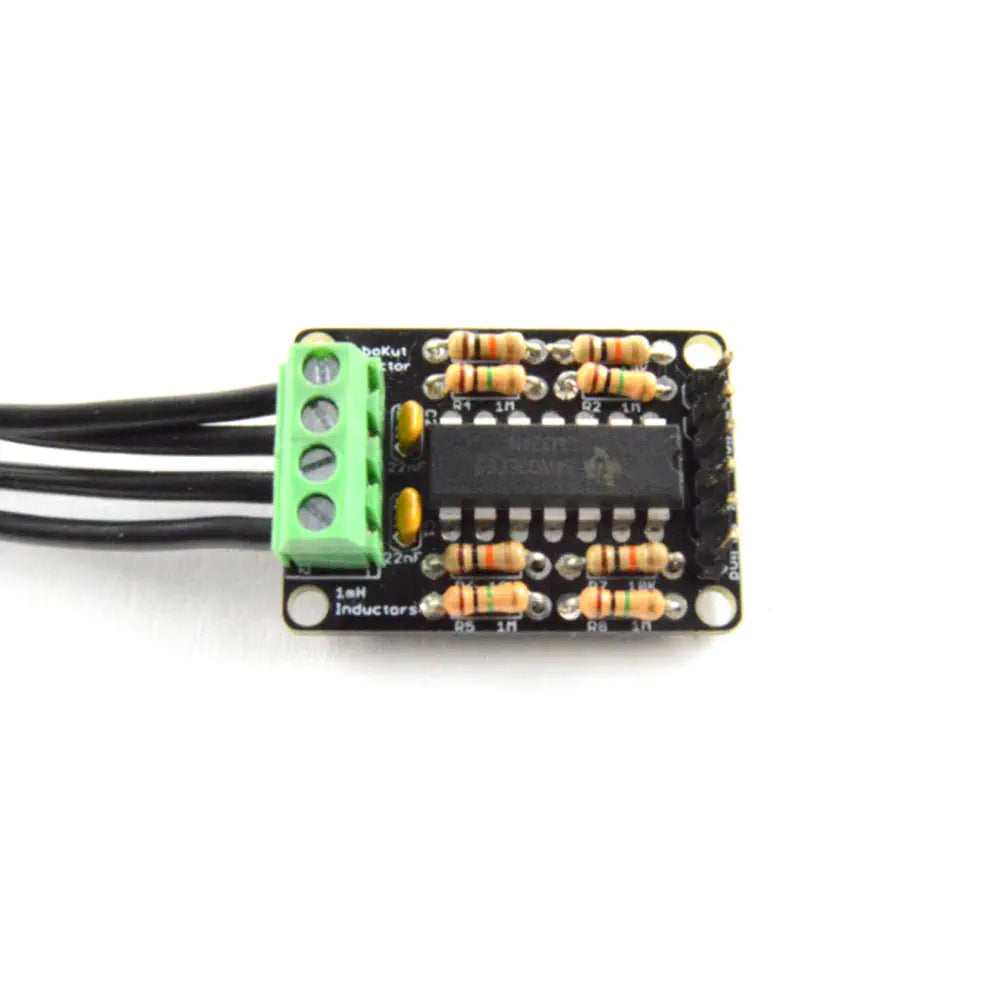

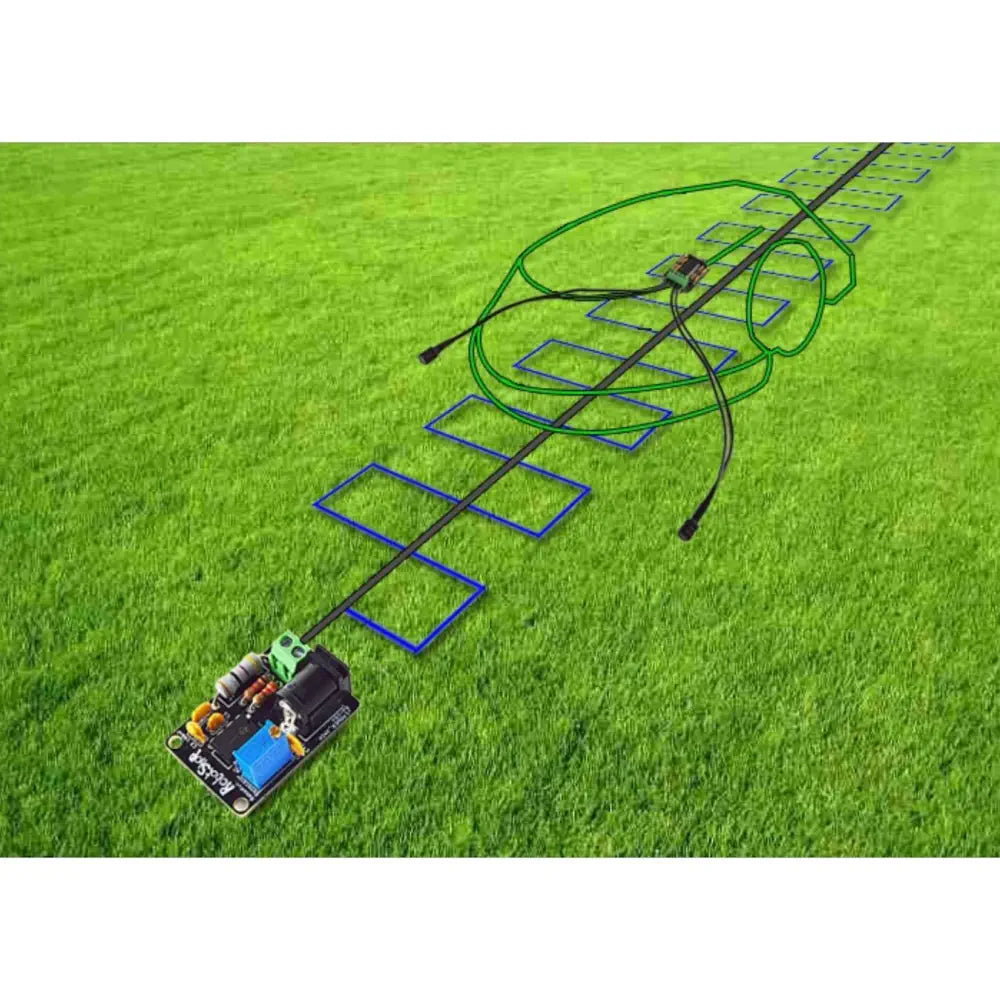

This is a nice soldering kit to build your own signal generator and sensor for an electrical perimeter wire. The generator board is based on the popular NE555 Timer and the sensor board is based on two LC (tank) amplified circuits. Can be used with DIY Robot Lawnmowers. A processing chain (amplification, filters, comparison) makes it possible to determine the position of the robot within to the wire. Note that the perimeter wire is not included, but it comes with the through-hole components.



RobotShop Perimeter Wire Generator and Sensor Soldering Kit

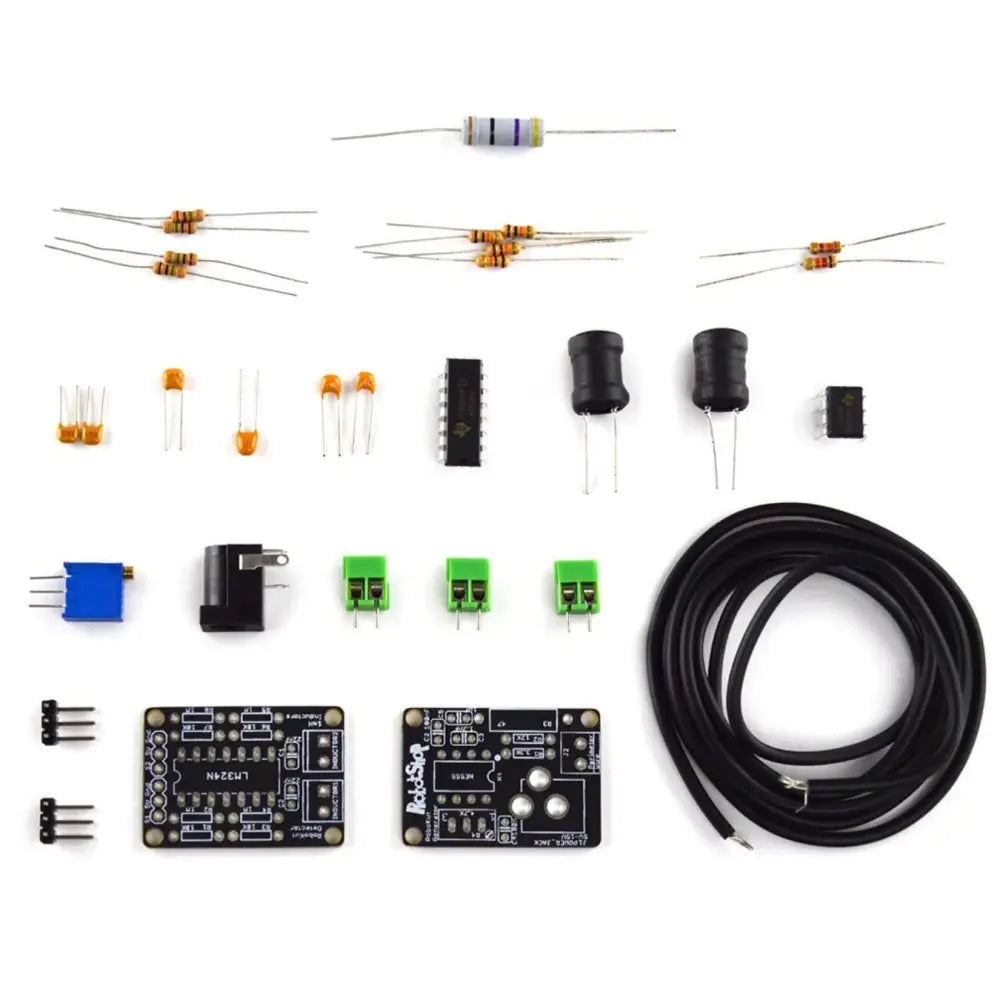

  • 1 x Generator board PCB
  • 1 x Sensor board PCB
  • 1 x 3.3 KOhms resistor
  • 1 x 12 KOhms resistor
  • 1 x 47 Ohms resistor
  • 1 x 4.7KOhms potentiometer
  • 2 x 100nF capacitor
  • 1 x 1000pF capacitor
  • 1 x 1uF capacitor
  • 1 x 2.1x5.5mm barrel connector
  • 3 x 2 positions terminal connector
  • 1 x NE555P timer
  • 4 x 10 KOhms resistor
  • 4 x 1 MOhms resistor
  • 2 x 22nF capacitor
  • 1 x LM324N op-amp
  • 2 x 3 positions right angle pin header
  • 2 x 1mH inductance
  • 1 x 1meter 20AWG cable (for the inductances)

Blog

Assembly Guide Cards

Customer Reviews

Based on 14 reviews
57%
(8)
29%
(4)
0%
(0)
0%
(0)
14%
(2)
B
Boz
Kit efficace et bien conçu

Ce kit de générateur de périmètre avec ses 2 capteurs est bien conçu, simple à assembler, la plan fournit est succinct mais suffisant... J'ai effectué des tests avec un petit cable et un Arduino, ça fonctionne bien...maintenant, il ne reste plus qu'a monter ça sur mon prototype de robot de tonte et tester avec un fil plus long. En bref, pas cher, efficace, je recommande !

b
basse
Excellent produit, bon prix, beaucoup à souder

Excellent produit, bon prix, beaucoup à souder. Cela aurait été bien de pouvoir payer un peu plus pour recevoir un PCB entièrement assemblé, même si je le savais à l'avance.

T
Tony
Wish this kit came assembled

Wish it came assembled. I haven’t got to check it out but. Looks like it will work as long as assembly goes well.

T
Tony
Je souhaite que ce kit soit assemblé

Je souhaite qu'il soit assemblé. Je n'ai pas besoin de le vérifier, mais. On dirait que cela fonctionnera tant que l'assemblage se passera bien.

T
Thomas
Doesn't work. Don't waste your money (but mostly time)

I've bought 4 of these kits. I've soldered them together all per the instructions. The receiver PCB does not work as advertised! I'm getting a steady voltage of 3.8V on the signal lines even with no sender PCB.
