Robot Power Simple-H Dual Channel H-Bridge Controller 20A, 5-28V for 3-5V Logic
Drives motors up to 28V
Handles 20A continuous output
Supports up to 25A with fan
Integrates with standard systems
Features built-in current limiting

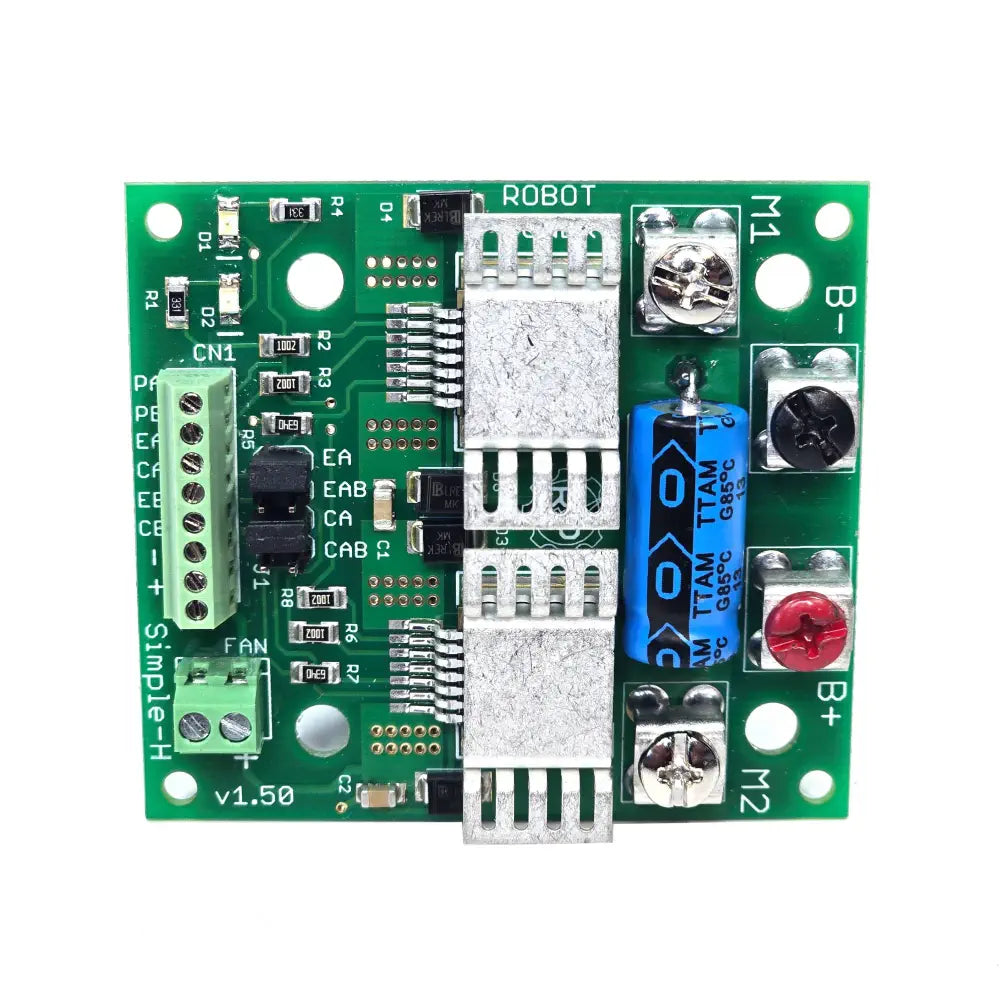

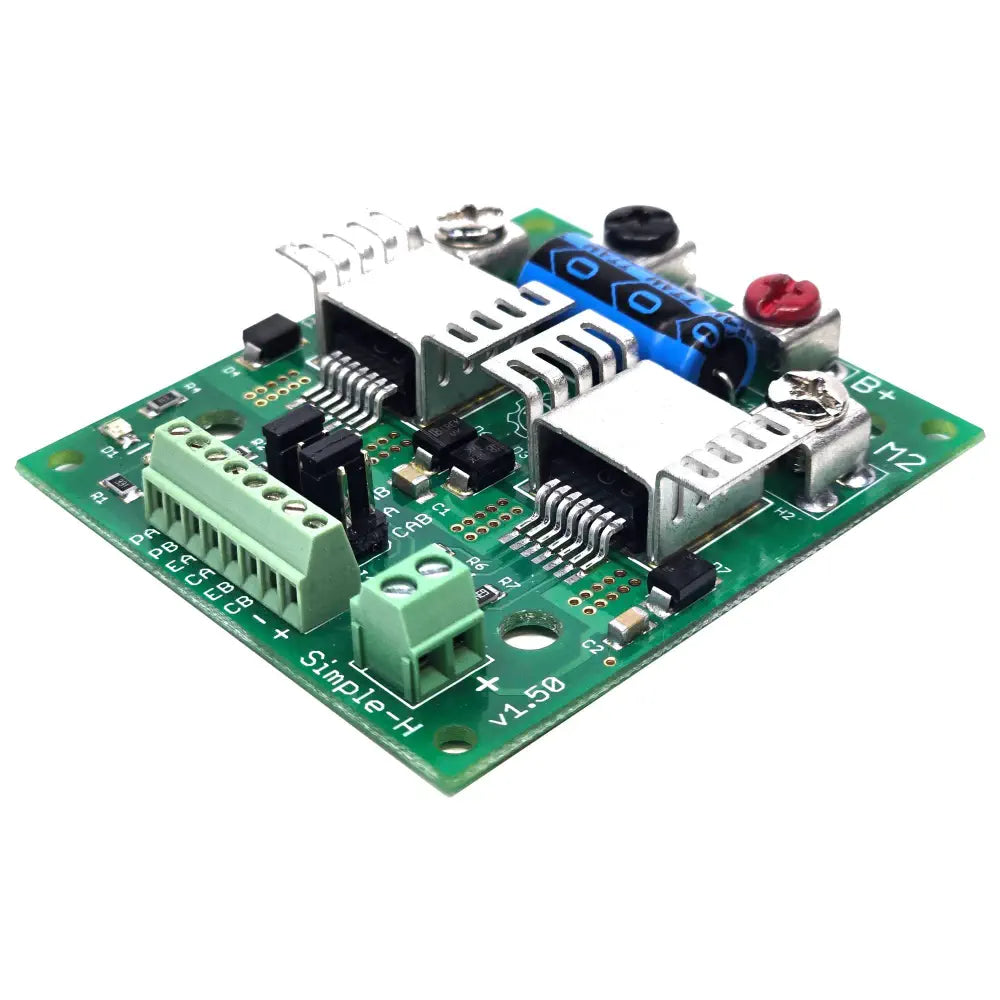

The Robot Power Simple-H Dual Channel H-Bridge Controller 20A, 5-28V for 3-5V Logic is a versatile and robust circuit designed for driving DC motors and other DC loads within a range of 6V to 28V. It supports a wide array of command sources, from simple switches to complex microcontrollers, making it adaptable for various applications. The controller requires external signal sources to translate command inputs into the necessary switching signals, offering flexibility in its operation.
This controller is distinguished by its ability to handle continuous output currents of up to 20A, with the potential to reach 25A when equipped with an optional cooling fan. It is engineered to maintain its current ratings over extended periods, unlike many competing products that only sustain high currents for brief durations. The Simple-H's design includes heatsinks and heavy copper areas on the circuit board to efficiently dissipate heat, ensuring reliable performance.
The Simple-H HV variant allows for input signals up to 28V, with indicator LEDs that maintain consistent output regardless of signal voltage. This feature enables direct control using switches from 12V or 24V battery sources without the need for additional voltage regulation. The controller's construction supports easy integration with existing systems, featuring a standard screw terminal for command and status connections, and the option to configure as a single full H-bridge or two independent half-bridge circuits. Note: Ensure proper heat dissipation to maintain optimal performance and prevent overheating.
1x Robot Power Simple-H Dual Channel H-Bridge Controller 20A, 5-28V for 3-5V Logic
Supply voltage: 5V to 28V (maximum battery rating of 24V)
Continuous output current: 20A (25A with fan)
Surge output current: Greater than 45A
Power chips: Two BTS7960B
On resistance: 0.016 ohm maximum at 25°C
PWM frequency: DC to 20kHz
Cooling: Heatsinks and optional 20 CFM 50mm fan
Logic interface: 3V - 5V classic version, 4V-28V HV version
Current and temperature limiting: Built into power chips
Current sense outputs: 0.0745V per Amp, 2.98V at 40A
Connectors: 8-position 0.1" screw terminal, 2-position fan terminal
Fairly straight forward. Instructions decent but didn't really mention the Enable Pin which threw me for a while. Got it working and works great with my linear actuator going in both directions.
S
Soren
Nice and easy to use
Great and simple design. I would like to have a status LED indicating when there is power connected.
S
Soren
Nice et facile à utiliser
Design simple et génial. J'aimerais avoir un voyant d'état indiquant quand le courant est connecté.
T
Ted
Excellent tableau de bord haute puissance
Assez simple. Les instructions étaient correctes mais ne mentionnaient pas vraiment le code d'activation qui m'a lancé pendant un moment. Il fonctionne parfaitement avec mon actionneur linéaire dans les deux sens.
