Pololu Dual VNH5019 Motor Driver Shield for Arduino

PololuSKU: RB-Pol-263
Manufacturer #: 2507

Price  :
Sale price $85.64

Shipping calculated at checkout.

Stock  :
Only 2 units left

Description

  • Pololu Dual VNH5019 Motor Driver Shield for Arduino
  • Dual-channel VNH5019 drivers, 5.5–24 V operating voltage range
  • Up to 12 A continuous (30 A peak) per channel, combinable to 24 A
  • PWM operation up to 20 kHz for ultrasonic, quiet motor control
  • Current-sense feedback output, approximately 140 mV per amp
  • Compatible with 5V and 3.3V logic; fully customizable Arduino pin mappings

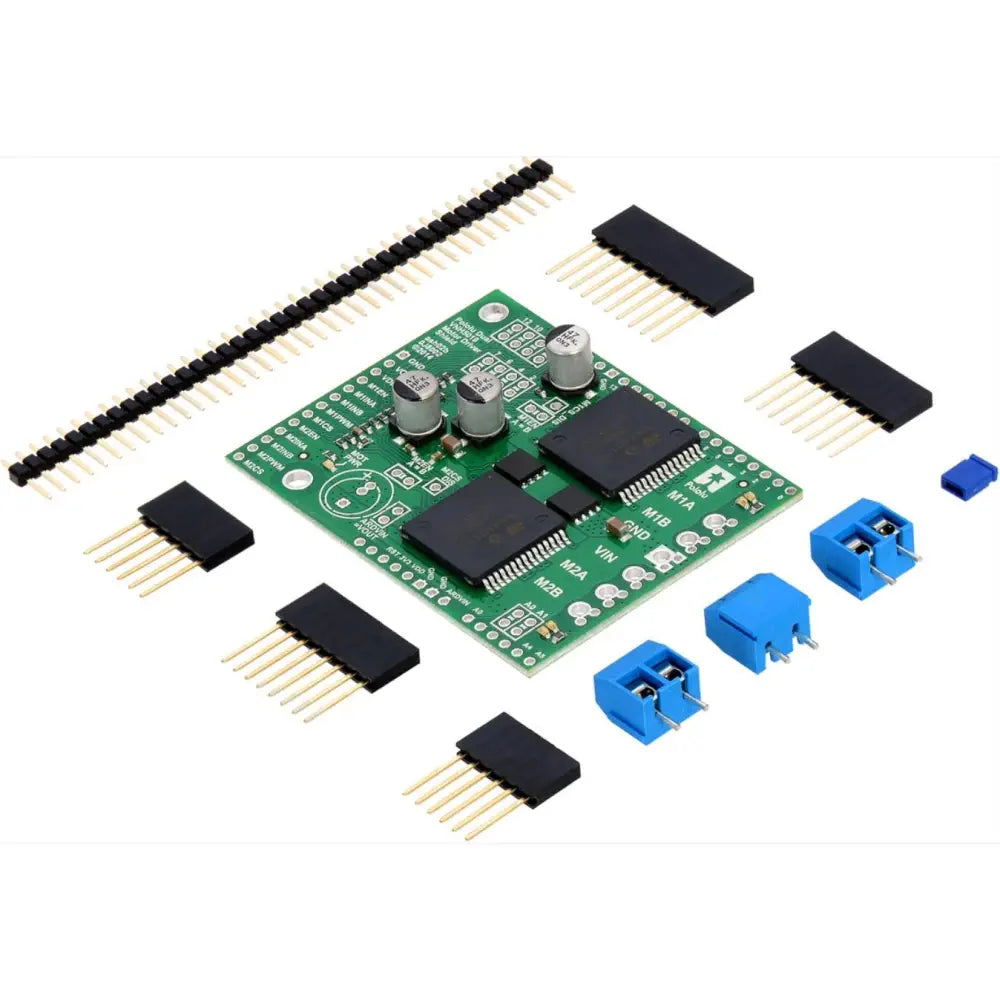

  • Includes Arduino library, detailed user's guide, and stackable headers

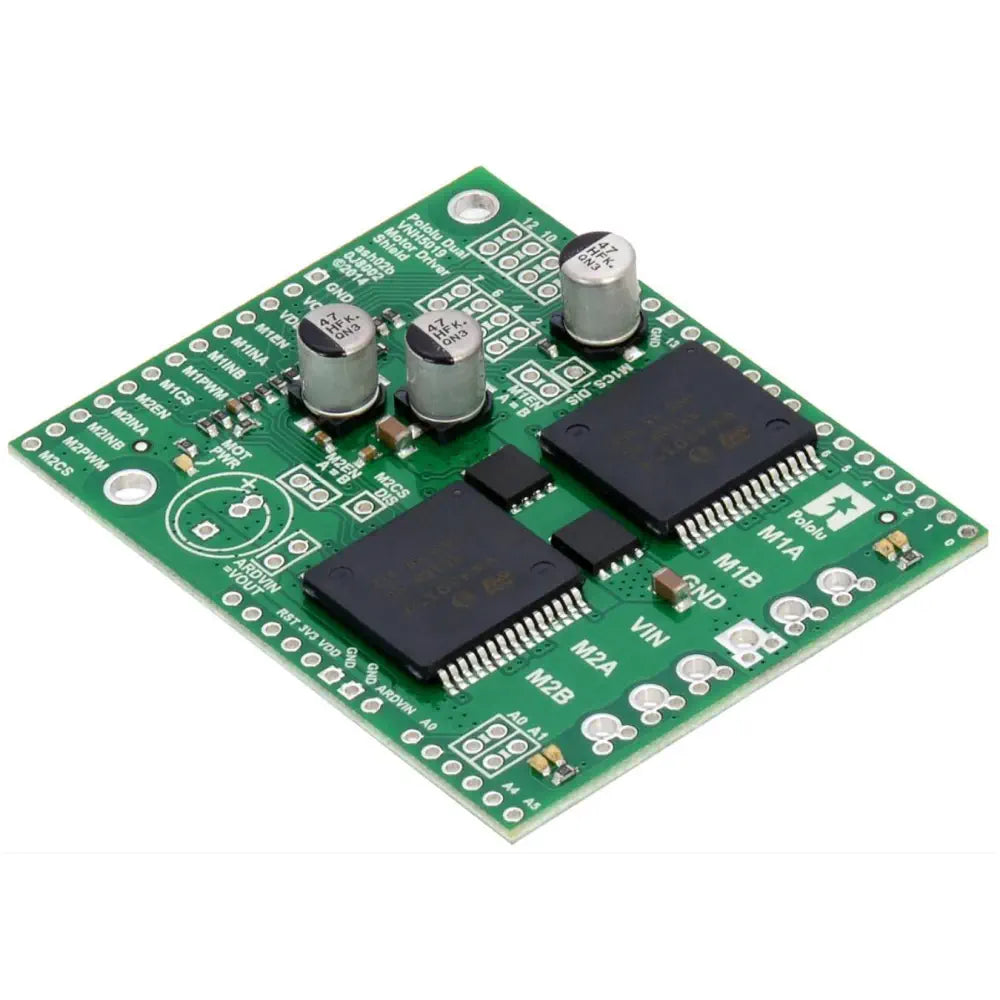

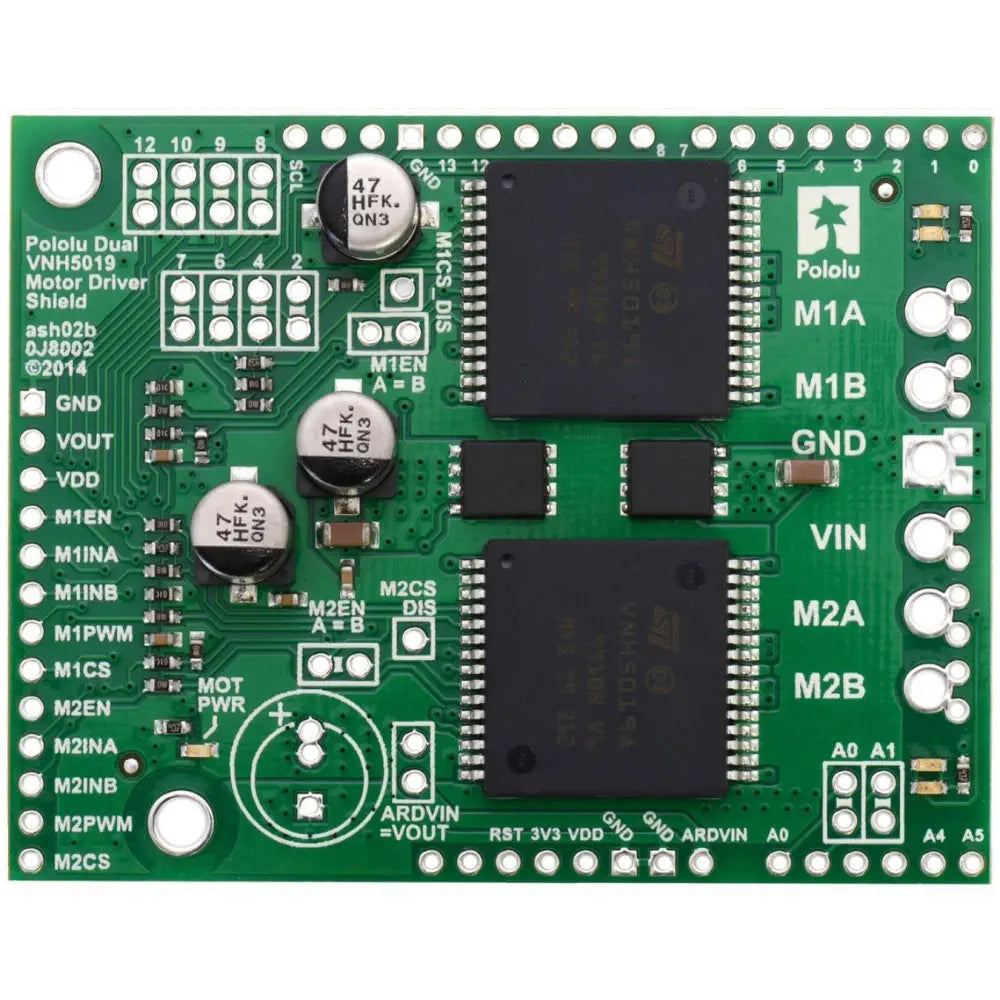

The Pololu Dual VNH5019 Motor Driver Shield for Arduino, designed and manufactured by Pololu, is a high-power brushed DC motor driver shield built around two VNH5019 ICs from STMicroelectronics. It enables bidirectional control of two independent DC motors from an Arduino or compatible microcontroller board. Each channel delivers up to 12 A continuous current with a 30 A peak capacity, and both channels can be combined to drive a single motor at up to 24 A continuous. The wide operating voltage range and robust protection features make it well suited for demanding embedded robotics and automation projects.

The shield integrates current-sense feedback on each channel, allowing the host controller to monitor motor load in real time during active drive phases. Ultrasonic PWM support eliminates audible switching noise, a practical advantage in noise-sensitive or precision motion applications. All VNH5019 control lines are also broken out along the board edge, enabling direct use with non-Arduino microcontrollers through standard 0.1" headers. An accompanying Arduino library simplifies software integration, while optional jumper configuration allows the motor power supply to also power the Arduino, reducing wiring complexity in standalone deployments.


Why Buy From RobotShop
Official Authorized Distributor

Genuine products with manufacturer-approved warranty coverage.

Locally Managed Logistics

Customs, inspection, and prep handled locally before shipment.

Single Point of Contact

Sales, support, and returns managed by one team.

FAQ & Knowledge Base

Docs, tutorials, and community answers to move faster.

Arduino Motor Driver Shield
Dual VNH5019 Motor Driver Shield
Dual-channel, high-power brushed DC motor control for Arduino and compatible boards.

Continuous Current (per channel)
12 A
Peak Current (per channel)
30 A
Operating Voltage
5.5–24V
Max PWM Frequency
20 kHz
Pololu Dual VNH5019 Motor Driver Shield for Arduino

Model: 2507

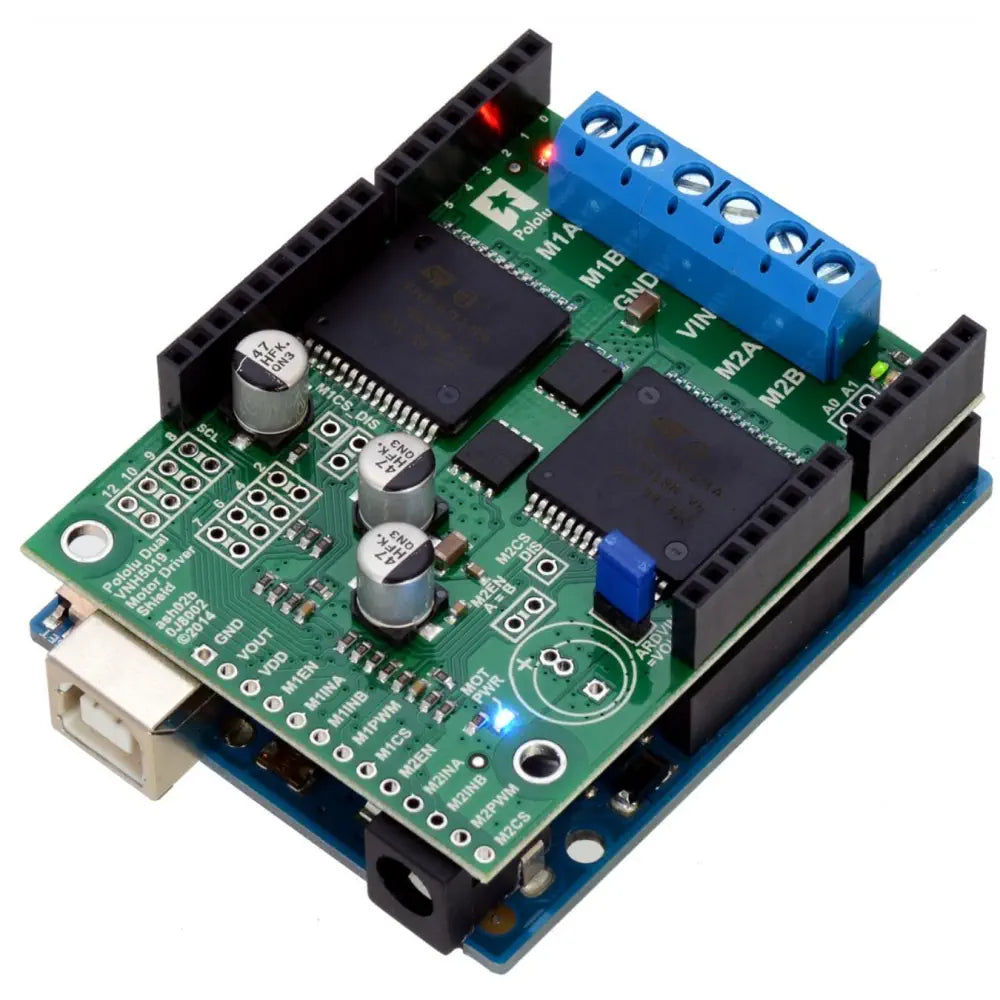

Arduino not included. Through-hole components require soldering.

Pololu Dual VNH5019 Motor Driver Shield for Arduino

Model: 2507

PCB Size
Mounting Hole Spacing

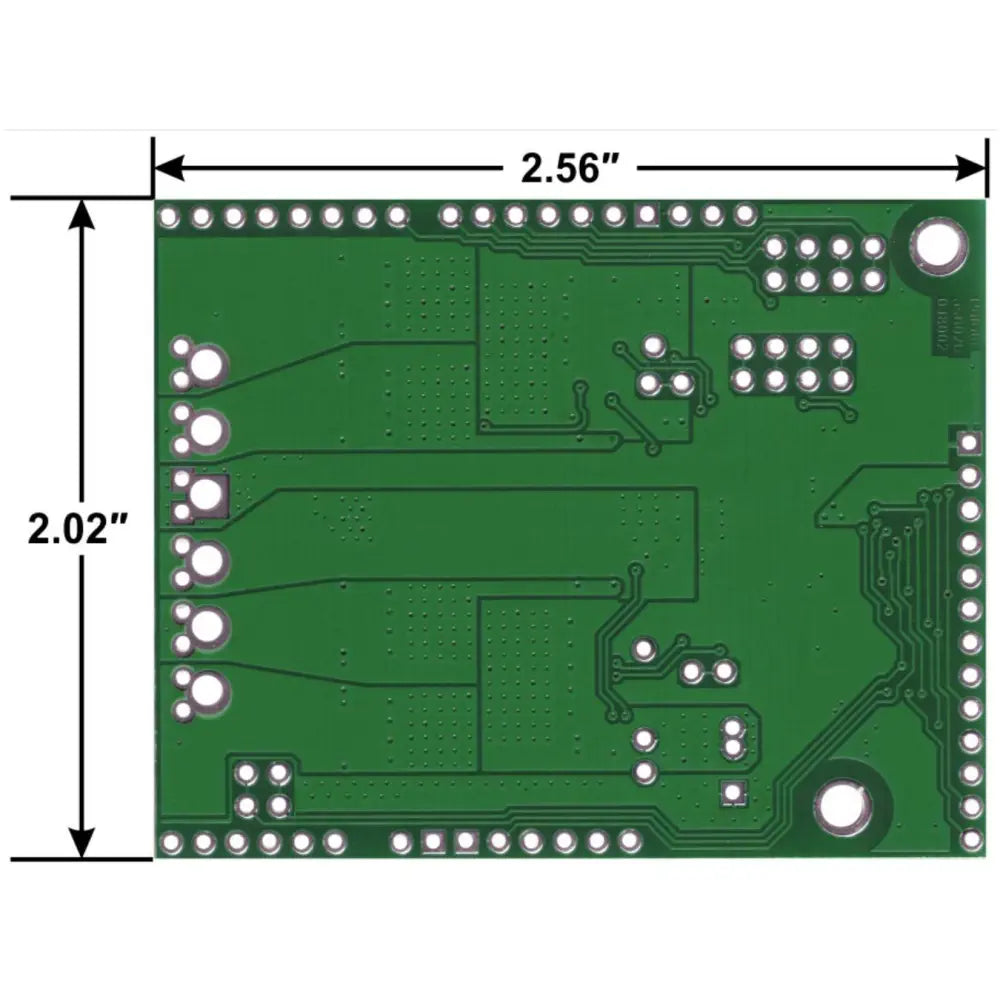

Values shown are from the manufacturer's reference. Board dimensions visible on product page bottom-view image.

Pololu Dual VNH5019 Motor Driver Shield for Arduino

Model: 2507

Motor Driver IC
VNH5019 (x2)
Motor Channels
2 (combinable to 1)
Operating Voltage
5.5 – 24 V
Continuous Output Current (per channel)
12 A
Peak Output Current (per channel)
30 A
Combined Continuous Output Current
24 A (both channels to one motor)
Max PWM Frequency
20 kHz (ultrasonic)
Current Sense Output
~140 mV/A (active during drive only)
Logic Input Voltage
2.1 V logic high threshold (3.3V and 5V compatible)
Reverse Voltage Protection
Up to -16 V
Overvoltage Shutdown
24 V min. / 27 V typ.
Survival Voltage (transient)
41 V
Protection Features
Undervoltage, overvoltage, thermal shutdown, short-to-ground, short-to-Vcc
Arduino Compatibility
Arduino Uno R3 and compatible boards (ash02b revision)
Arduino Pin Mappings
Customizable
Standalone Use (without Arduino)
Yes, via 0.1" breakout headers
Arduino Power from Shield
Optional (via shorting block)
Motor Connection Options
5mm terminal blocks (16 A rated) or direct solder
Mounting Holes
2x, for #4 screws (0.30" H / 1.70" V spacing)
RoHS Compliance
RoHS 3 compliant
Board Revision
ash02b
