Phidgets NEMA-23 Bipolar Stepper Motor 1.8deg, 2.8A, 77:1
Description
- Phidgets NEMA-23 Bipolar Stepper Motor 1.8deg, 2.8A, 77:1
- 240 kg-cm torque rating
- 1.8 degree step angle (0.023 degrees after gearbox)
- 77:1 planetary gearbox
- Rated for 2.8A of current
- Connects to a Phidgets stepper controller

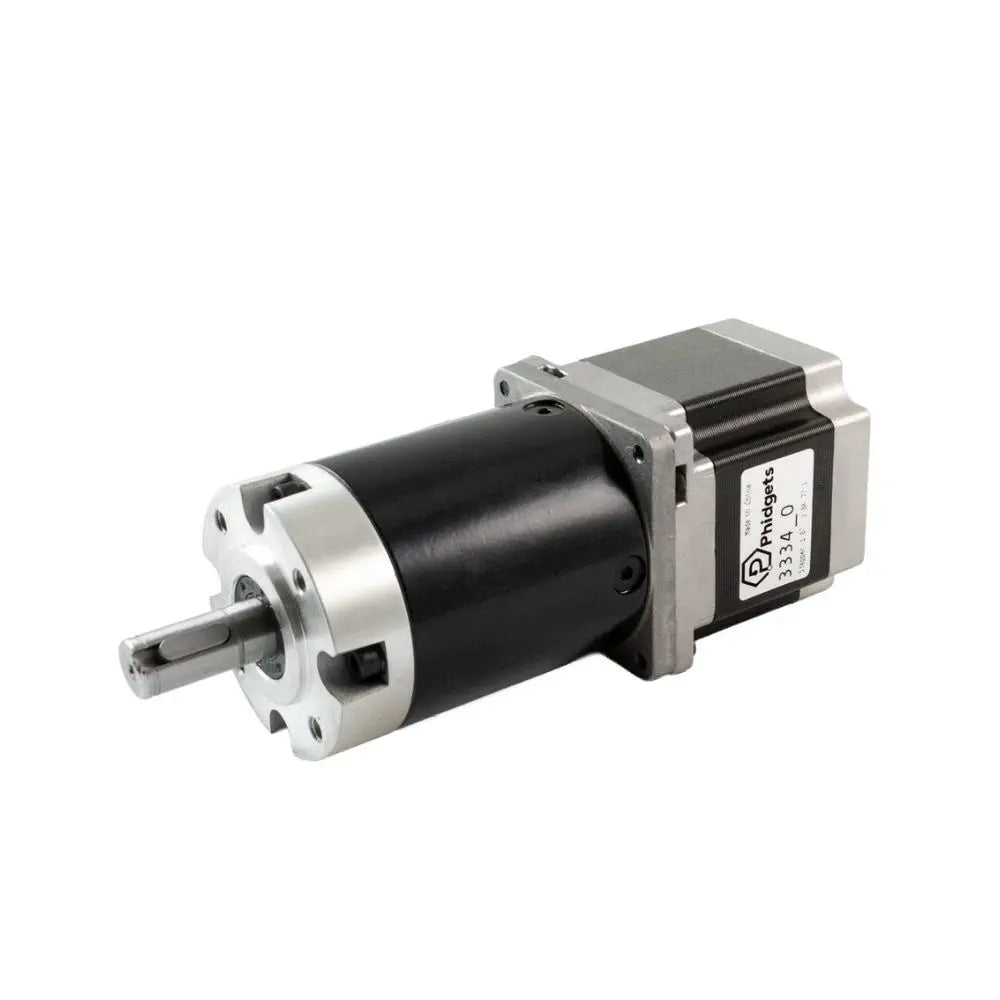

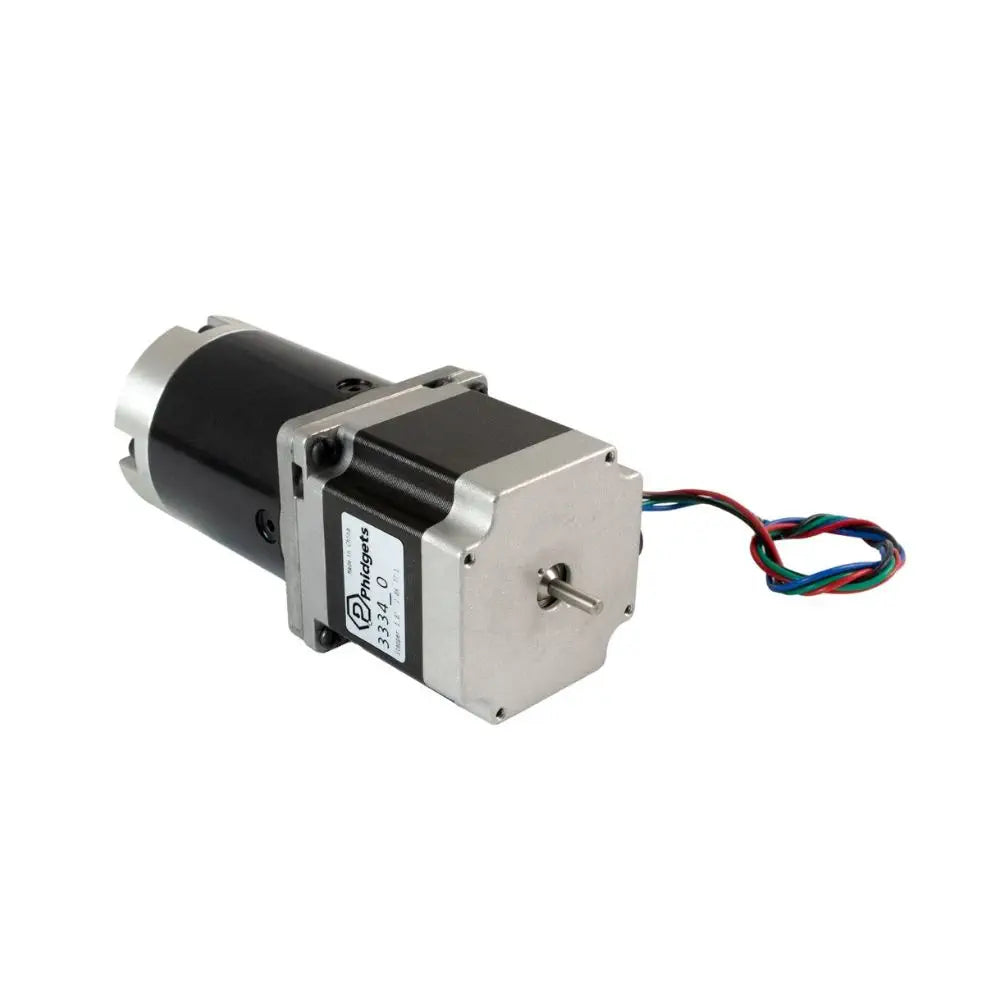

The Phidgets NEMA-23 Bipolar Stepper Motor 1.8deg, 2.8A, 77:1 features an integrated 77:1 planetary gearbox, delivering precise motion with a step angle of 1.8° at the motor shaft, which translates to approximately 0.023° at the output of the gearbox. The motor includes an exposed rear shaft, allowing for easy integration of an encoder or shaft coupler. Designed for high-performance applications, it offers a holding torque of 240 kg·cm and can produce up to 960 kg·cm of torque at 2.8 A, though the gearbox is rated for continuous torque of 240 kg·cm. Users should calculate exact step angles by dividing the motor’s 1.8° step angle by the gearbox reduction ratio for accurate motion planning.
This stepper motor operates at 24 V DC and must be used with a constant current or chopper drive controller, such as a Phidgets stepper controller, to avoid damage and maintain warranty coverage. Its robust NEMA-23 design, combined with the planetary gearbox, provides reliable performance for robotics, CNC, and automation projects. Key features include a 240 kg·cm torque rating, precise motion control with 0.023° step increments after gearing, and compatibility with Phidgets stepper controllers, making it an ideal choice for demanding precision applications.
- 1x Phidgets NEMA-23 Bipolar Stepper Motor 1.8deg, 2.8A, 77:1
- Shaft diameter: 12mm
- Rear shaft diameter: 3.9mm
- Weight: 1.5kg
PDF Files
Motor Properties
- Motor Type: Bipolar Stepper
- Manufacturer Part Number: 57STH56-2804B / 56JXS300K77
- Step Angle: 1.8°
- Step Accuracy: ±5%
- Holding Torque: 240 kg·cm
- Rated Torque: 240 kg·cm
- Maximum Motor Speed: 10 RPM
Electrical Properties
- Recommended Voltage: 24 V DC
- Rated Current: 2.8 A
- Coil Resistance: 900 mΩ
- Phase Inductance: 2.5 mH
Physical Properties
- Shaft Diameter: 12 mm
- Keyway Width: 4 mm
- Rear Shaft Diameter: 3.9 mm
- Mounting Plate Size: NEMA-23
- Weight: 1.5 kg
- Number of Leads: 4
- Wire Length: 300 mm
Gearbox Properties
- Gearbox Type: Planetary
- Gear Ratio: 76 49⁄64 : 1
- Backlash Error: 1 1⁄2°
- Maximum Strength of Gears: 240 kg·cm
- Shaft Maximum Axial Load: 100 N
- Shaft Maximum Radial Load: 250 N
Beaucoup de couple, assurez-vous juste de vérifier les dimensions deux fois, car elles sont assez grandes
Un autre activateur de vanne de contrôle en association avec le un contrôleur de step motor et un encodeur, toujours aussi efficace
Very good quality, and very low noise. There is some backlash (2 -3 degrees maybe) from the triple planetary gear reduction when the motor is not running, but it runs smoothly. I used a Stafford 1LM012AFXK Flange mount collar to attach it to 40MM aluminum extrusion. It has a 6 bolt 42MM bolt circle, but 4 of the holes (2, 4,8,10 o'clock) will line up with 40MM rail, so you can mount it with T-nuts you just need to drill out the flange holes. It also has the correct keyway, and a split collar with 2 screws to get a good grip on the shaft.
Utilisé comme activateur d'une vanne de contrôle de pression (0- 4000 PSI), fonctionne a merveille.
Très bonne qualité et très peu de bruit. Il y a un peu de jeu (2 -3 degrés peut-être) de la réduction de l'engrenage planétaire triple lorsque le moteur ne tourne pas, mais il tourne bien. J'ai utilisé un collier de montage à bride Stafford 1LM012AFXK pour le fixer à l'extrusion d'aluminium de 40MM. Il a un cercle de boulons de 42MM à 6 boulons, mais 4 des trous (2, 4,8,10 heures) s'alignent sur un rail de 40MM. Vous pouvez donc le monter avec des écrous en T, il vous suffit de percer la bride. des trous. Il possède également la rainure de clavette correcte et un collier fendu avec 2 vis pour bien saisir l’arbre.
