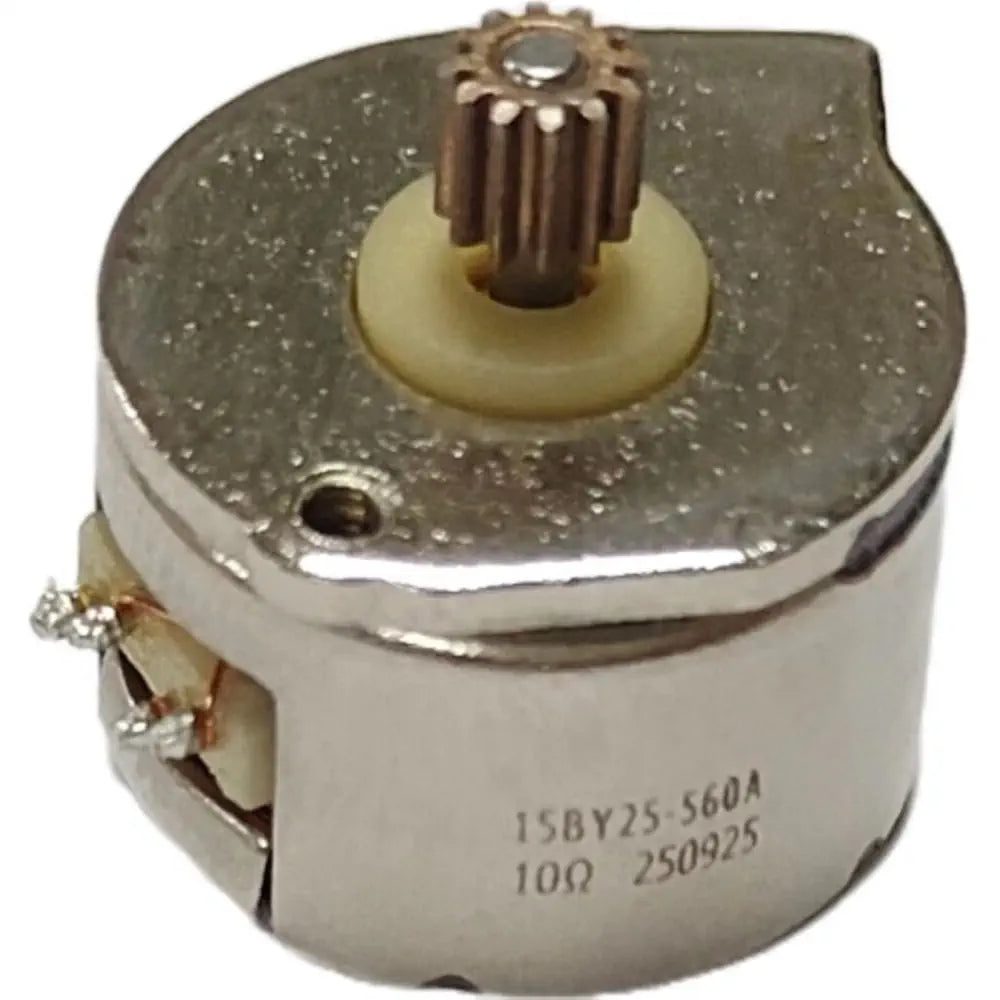

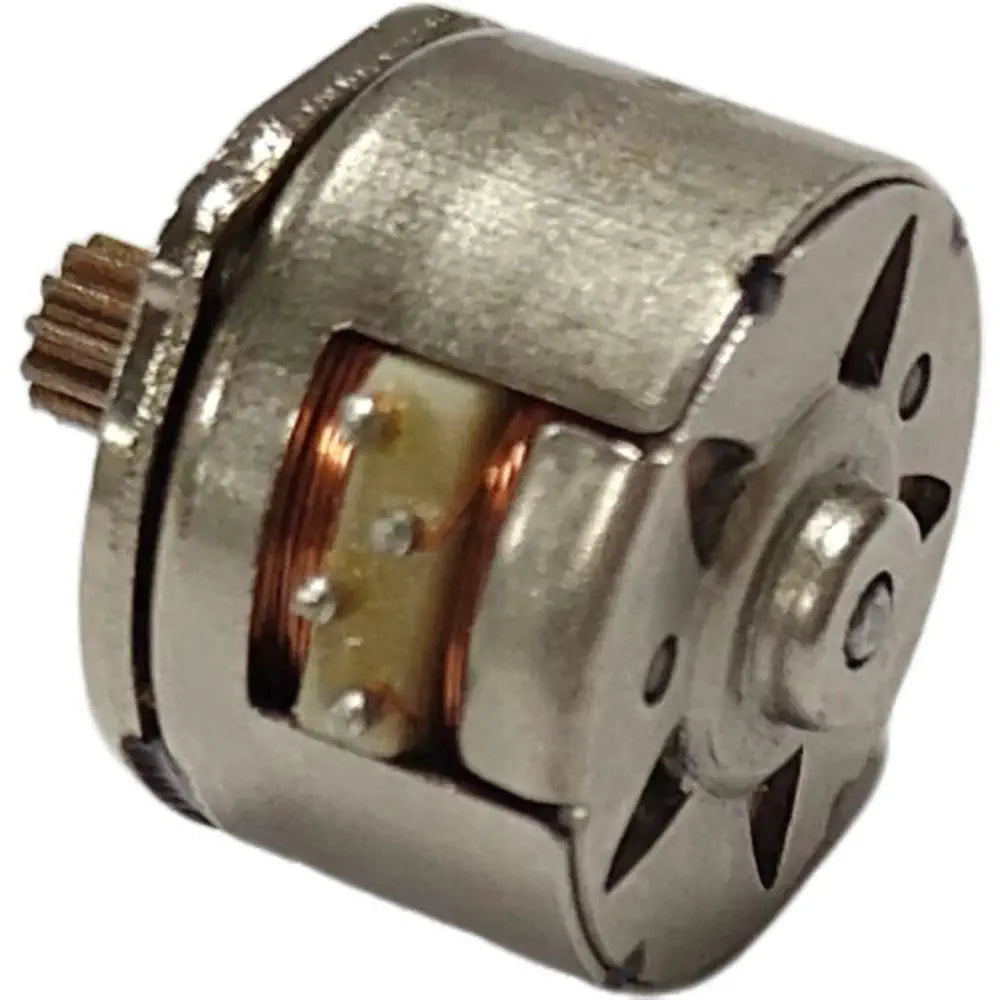

BY PM Stepper Motor 15BY25-560A – 15 mm 5 V Permanent Magnet Stepper Motor

MTICoreSKU: RM-MTIC-00D
Manufacturer #: 15BY25-560A

Price  :
Sale price $7.99

Shipping calculated at checkout.

Stock  :
In stock (990 units), ready to be shipped

Description

  • Compact 15 mm diameter × 16.2 mm length × 16.9 mm height for space-saving applications
  • Operates at 5 V DC (±10%) with bipolar 2-phase excitation and 18° step angle
  • Provides stable holding torque of 30 gf·cm and low noise (≤ 50 dB)
  • High response speed up to 1500 Hz and maximum no-load speed of 4500 rpm
  • Ideal for thermal printers and miniature motion control systems

The BY PM Stepper Motor 15BY25-560A is a high-precision 15 mm permanent magnet stepper motor developed for compact and reliable motion applications such as thermal printers and office automation equipment.

Operating at 5 V DC (±10%) with a bipolar 2-phase 2-2 excitation method and 18° step angle, it offers smooth incremental motion, low vibration, and long service life.

The motor achieves a holding torque of 30 gf·cm and a pull-out torque of 13 gf·cm (at 800 Hz & 5 V), with noise levels below 50 dB.

It is lightweight (9 g), efficient, and built to withstand temperatures from –10 °C to +50 °C in operation and up to 80 °C in storage, making it ideal for miniature automation modules and embedded systems.

1 × BY PM Stepper Motor 15BY25-560A

•Diameter: 15 mm

•Body Length: 16.2 mm

•Height: 16.9 mm

•Weight: 9 g

•Model Number: 15BY25-560A

•Model Type: BY Permanent Magnet Stepper Motor

•Drive Voltage: 5 ± 10% V DC

•Rated Voltage: 5 V

•Phase: 2

•Exciting Method: 2-2

•Exciting Mode: Bipolar

•Step Angle: 18°

•Step Accuracy: ± 7 %

•Rotation Direction: CW / CCW

•Resistance: 10 Ω ± 10 %

•Inductance: 3.4 mH ± 20 %

•Max Starting Pulse Rate: 1100 Hz

•Max Response Pulse Rate: 1500 Hz

•No-Load Speed: 3300 rpm (max 4500 rpm)

•Holding Torque: 30 gf·cm

•Pull-Out Torque: 13 gf·cm (at 800 Hz & 5 V)

•Detent Torque: 8 gf·cm

•Moment of Inertia: 0.06 g·cm²

•Noise: ≤ 50 dB

•Axial Endplay: ≤ 0.5 mm

•Radial Endplay: ≤ 0.1 mm

•Nickel Plating Thickness: 0.002 mm

•Dielectric Strength: 500 V AC / 1 s ≤ 3 mA

•Insulation Resistance: ≥ 100 MΩ (at 500 V DC)

•Insulation Class: E

•Temperature Rise: ≤ 115 °C

•Operating Temperature Range: –10 °C to +50 °C

•Storage Temperature Range: –30 °C to +80 °C

•Operating Humidity (Non-Condensing): 20 – 90 % RH

•Storage Humidity (Non-Condensing): 8 – 90 % RH

•Testing Conditions: 20 °C ± 2 °C, 65 % ± 5 % RH

•Basic Placement: Horizontal
