Incorporates 16-bit ADS1110 chip for precise measurements
Supports adjustable gain with multipliers of 1, 2, 4, and 8
Features a differential input range of 0 to 12V
Utilizes I2C interface at address 0x48 for connectivity
Compact design: 24.0 x 24.9 x 13.7mm

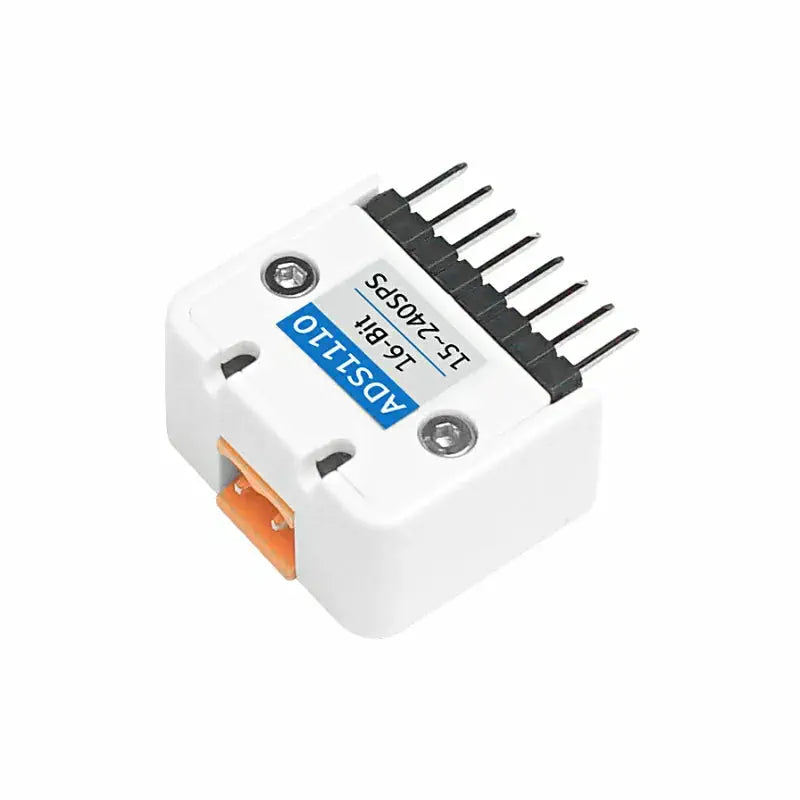

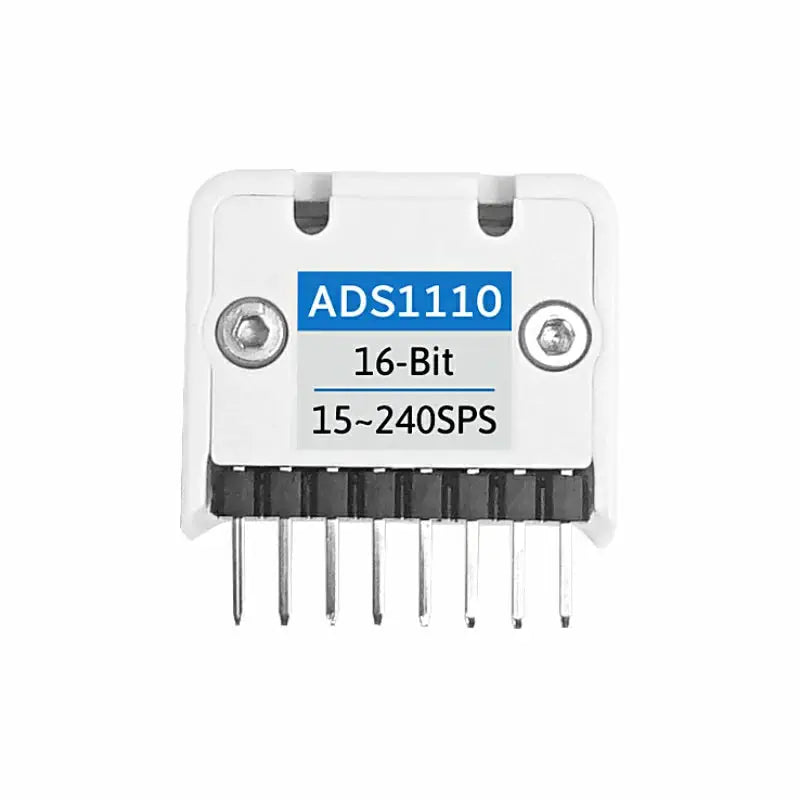

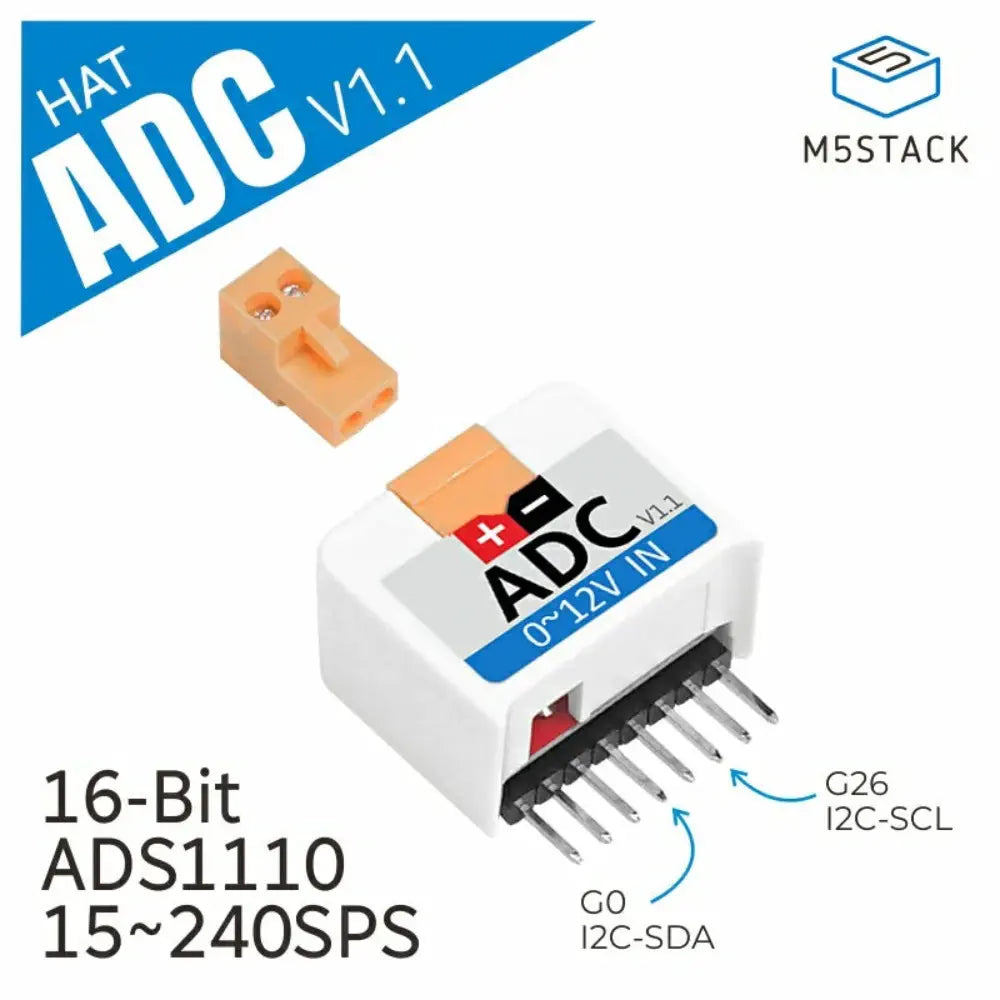

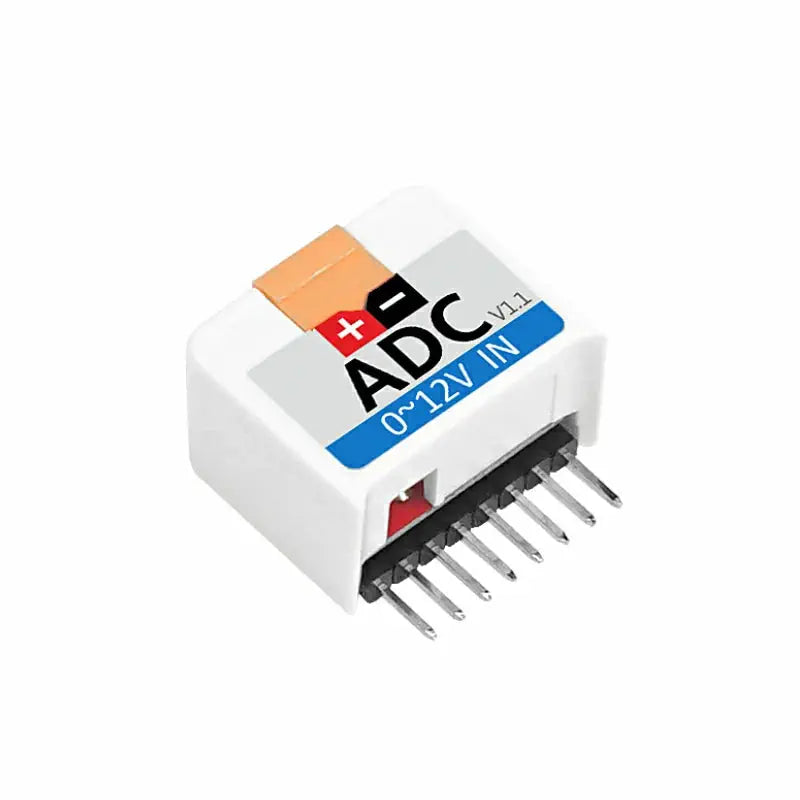

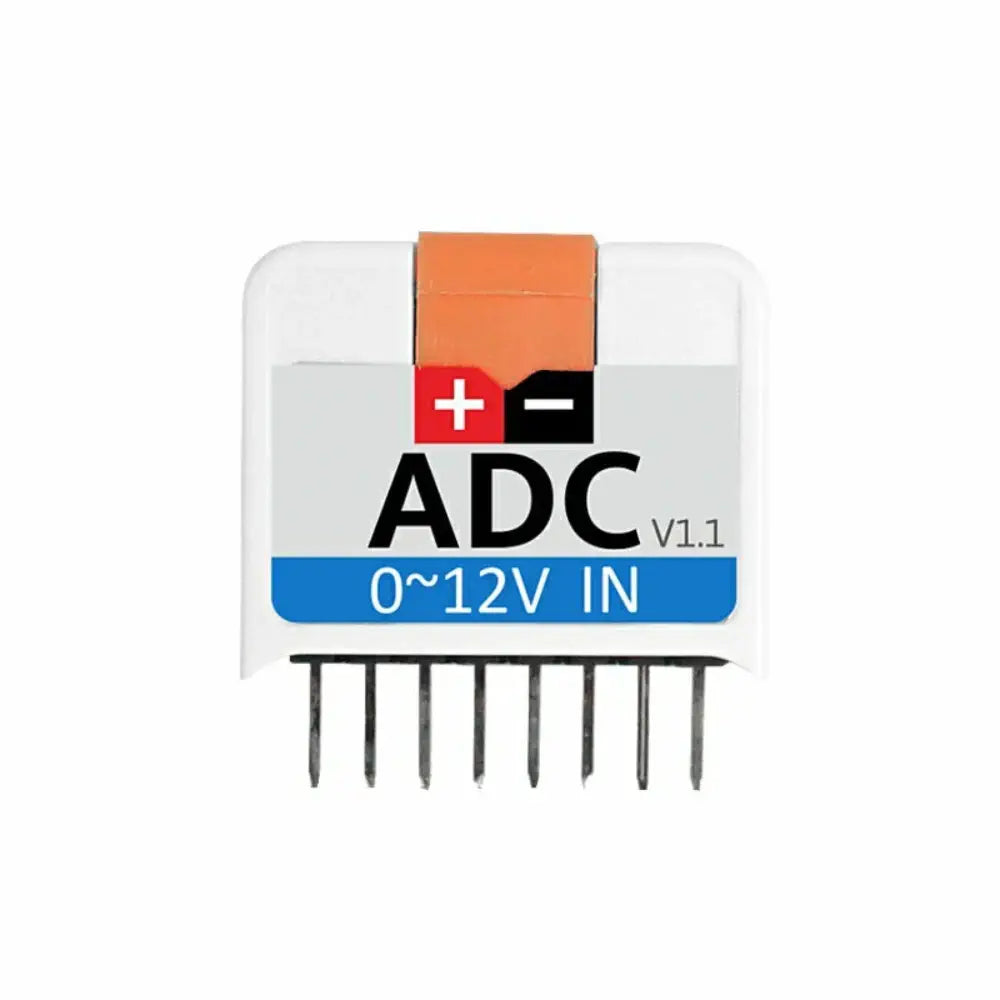

The M5Stack M5StickC ADC HAT ADS1110 1.1 is an analog-to-digital conversion module designed for compatibility with the M5StickC. It incorporates the ADS1110 chip, which provides full differential, 16-bit resolution, self-calibration, and Δ-Σ modulation for precise measurements. The module features an adjustable gain and a clock generator, with an I2C interface for connectivity. The differential input range is originally -5 to +5V, but due to additional peripheral circuits, it is adjusted to 0 to 12V.

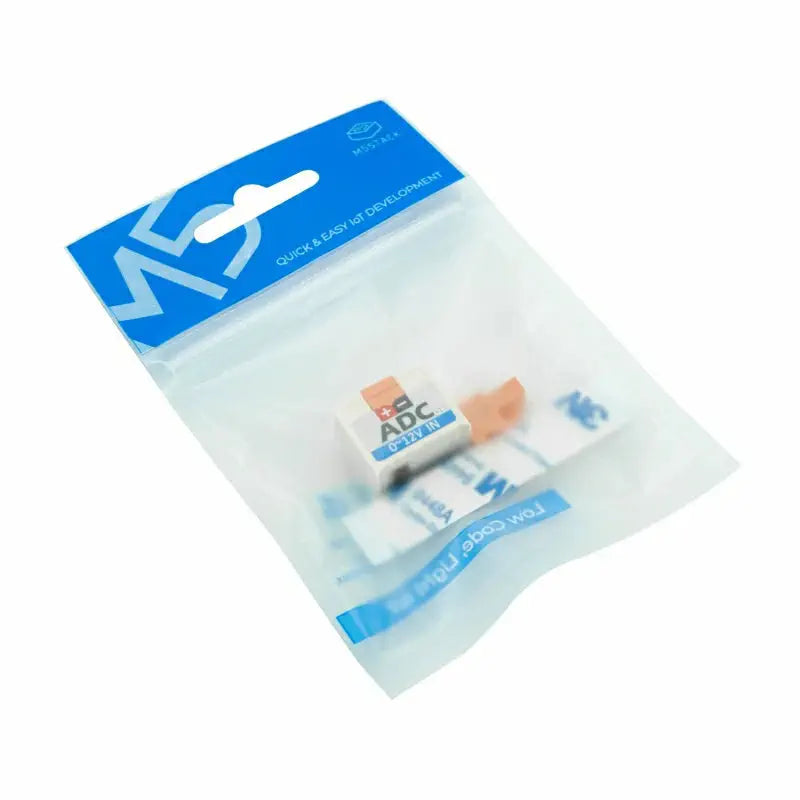

1x M5Stack M5StickC ADC HAT ADS1110 1.1
1x HT3.96-2P Terminal
24.0 x 24.9 x 13.7 mm
Input voltage: 0-12V
Development platforms: Arduino, UiFlow (Blockly, MicroPython)
16-bit with no missing codes
Continuous self-calibration
Single-cycle conversion
Built-in programmable gain amplifier with gain multipliers of 1, 2, 4, 8
