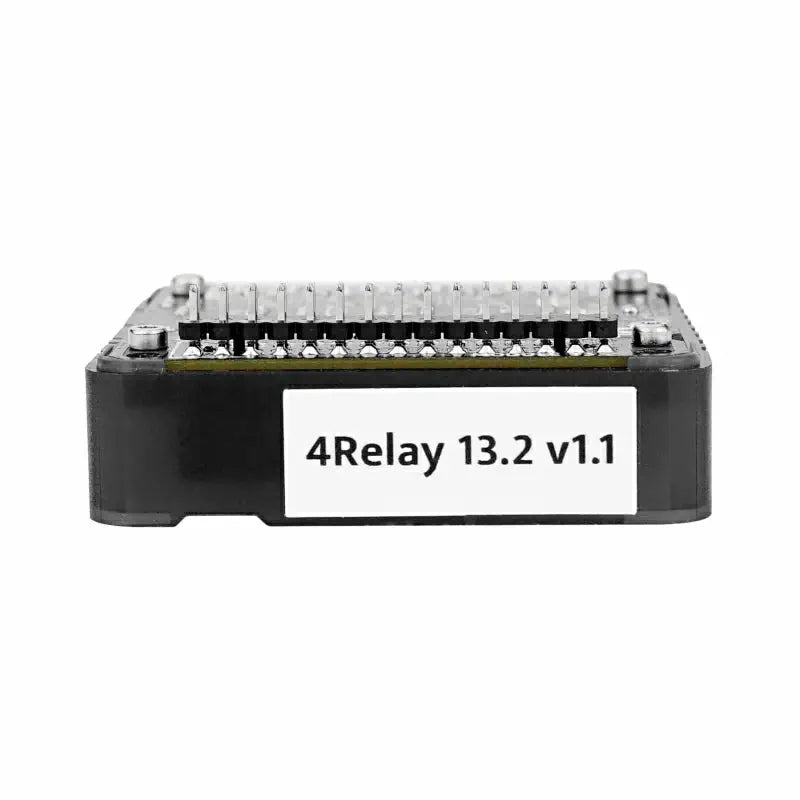

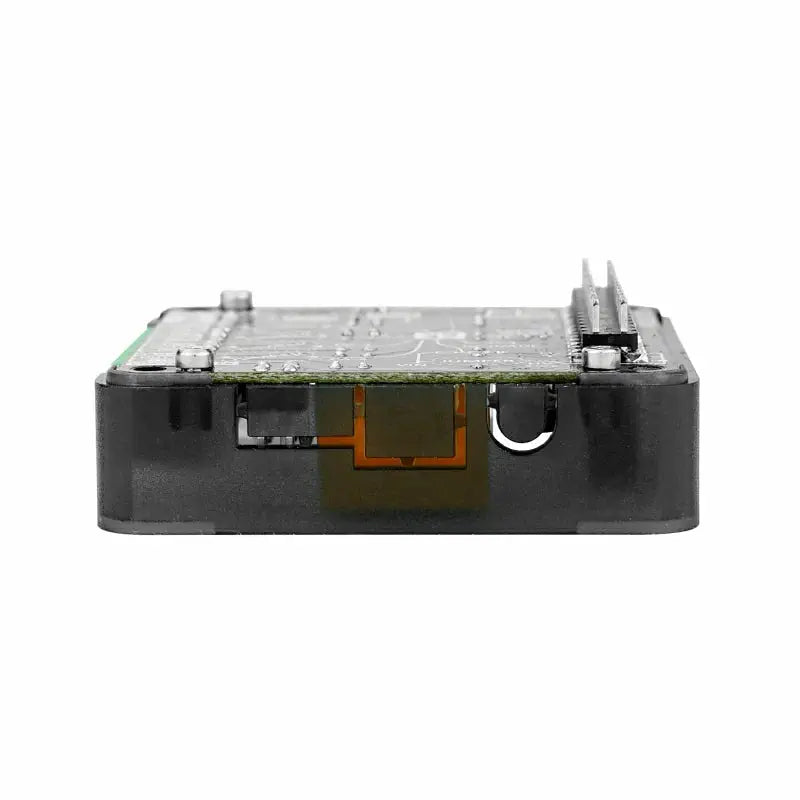

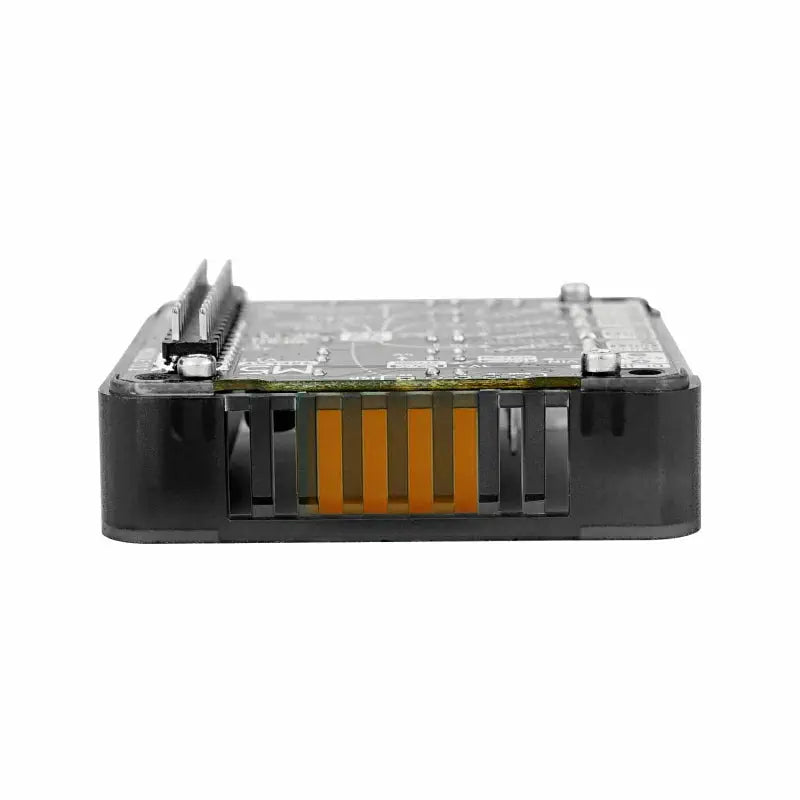

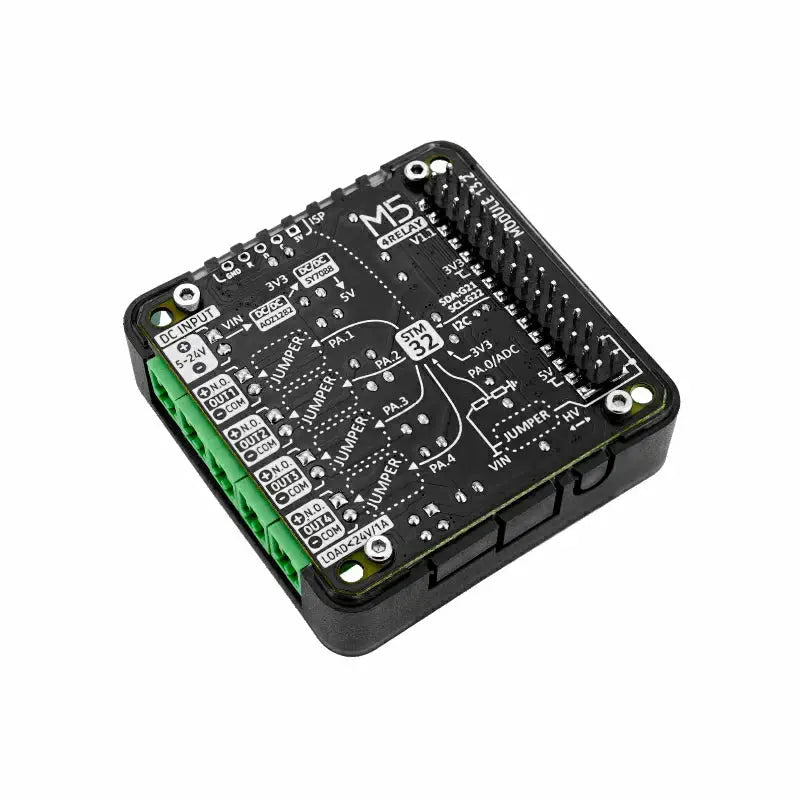

M5Stack 4-Channel Relay 13.2 Module V1.1 (STM32F030)

M5StackSKU: RB-Mst-354
Manufacturer #: M121-V11

Price  :
Sale price $14.79

Shipping calculated at checkout

Stock  :
In stock, 9 units

Payments and Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • M5Stack 4-Channel Relay 13.2 Module V1.1 (STM32F030)

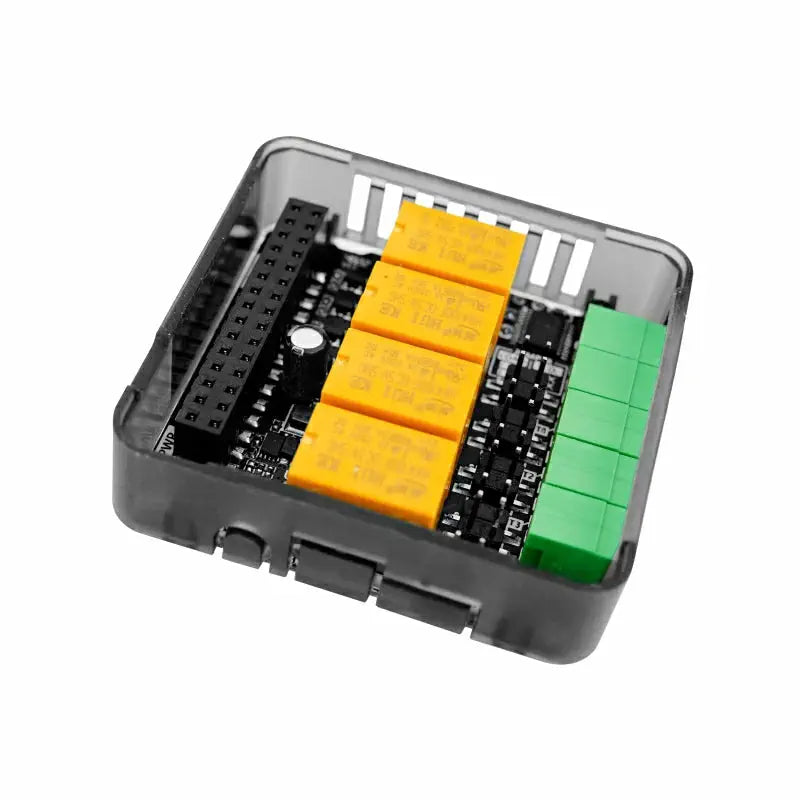

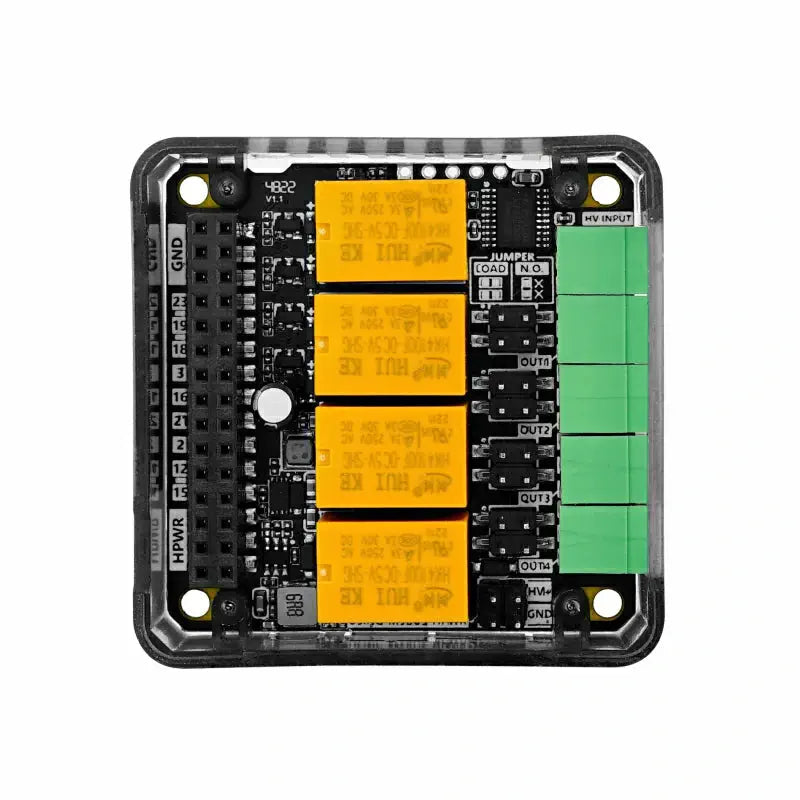

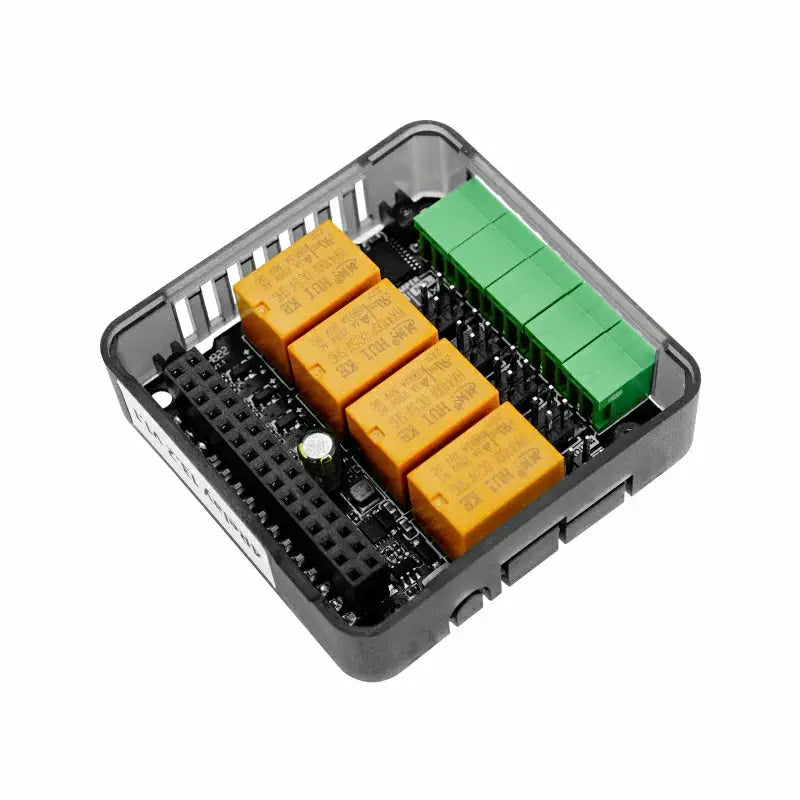

  • Equipped with four on-board mechanical relays
  • Utilizes I2C communication protocol for smooth integration
  • Features innovative jumper cap design for easy mode switching
  • Engineered for DC circuit switching with a max load capacity of 24W

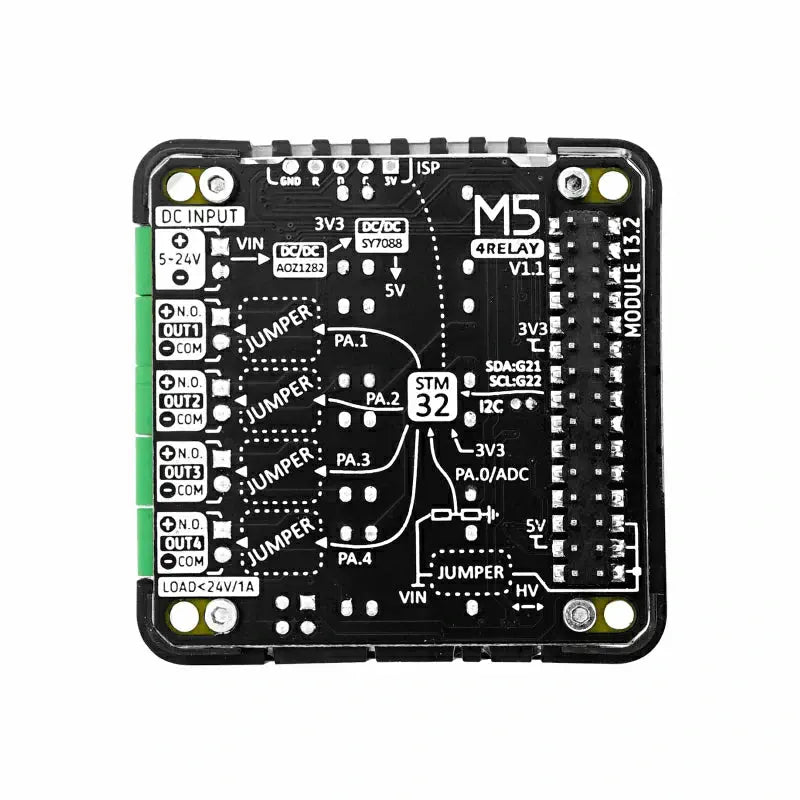

The M5Stack 4-Channel Relay 13.2 Module V1.1 (STM32F030) is a multifunctional relay module meticulously designed to streamline circuit control. It is equipped with four on-board mechanical relays (NO, COM), providing reliable and efficient control for DC circuitry.

The module utilizes the I2C communication protocol, optimizing the IO resources and ensuring a smooth integration into various projects. The innovative jumper cap design facilitates effortless switching between active and passive relay modes, accommodating a wide range of circuit requirements.

Specifically engineered for DC circuit switching, the module boasts a maximum load capacity of 24W (DC 24V @ 1A) across its four channels. It also incorporates external power voltage detection and a DCDC circuit to power the controllers, thereby enhancing the overall safety and stability of the system.

  • 1x 4Relay Module 13.2 V1.1

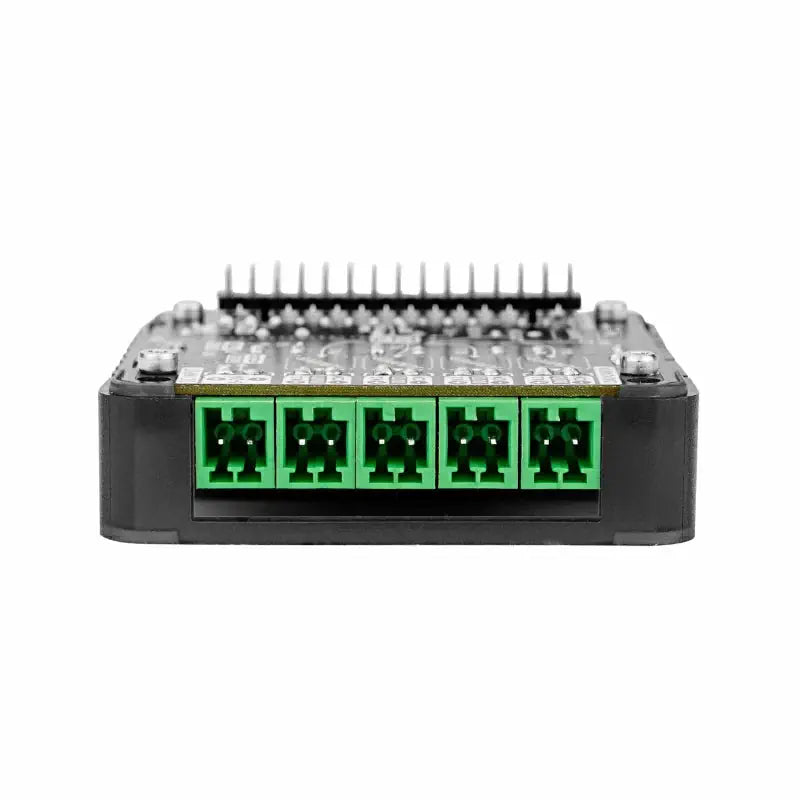

  • 5x Wiring Terminal 2.54mm-2P (green)
  • 10x PIN Jumper
  • 1x Wiring Instructions
  • 54 x 13.2 mm
  • Package Size: 95 x 65 x 25 mm
  • Main Control Chip: STM32F030F4
  • Communication interface: I2C communication interface (address: 0x26)
  • Support operating mode: Active control / Passive control
  • Relay channels: 4x (COM, NO interface)
  • Power input interface: DC 5-24V
  • Load capacity: 4 channels max. 24W (DC 24V @ 1A)
  • Relay terminal specifications: 2.54-2P
  • Product Weight: 33.2 g
  • Package Weight: 63.7 g
