Description
- Blocks the number of electronic modules
- Can be used in interactive projects
- Its modular design makes it easy to expand with the Arduino board (not included)
- The Relay output state by a light-emitting diode

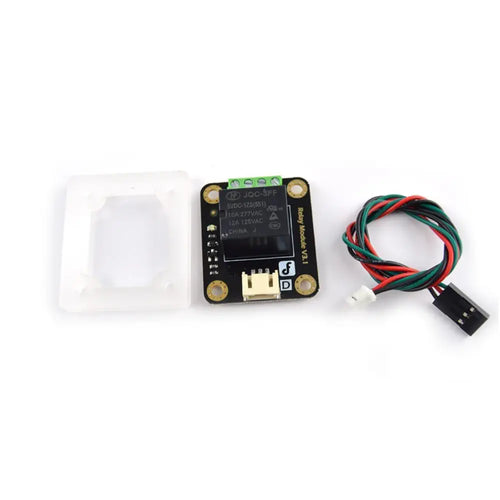

The Gravity Single Relay Moduleblocks the number of electronic modules. It can be used in interactive projects. It can also be used to control the lighting, electrical and other equipments. The modular design makes it easy to expand with the Arduino board (not included). The Relay output state by a light-emitting diode. It can be controlled through the digital IO port, such as solenoid valves, lamps, motors and other high current or high voltage devices.
PDF Files
- Type: Digital
- Single relay board
- Rated through-current: 10A (NO) 5A (NC)
- Maximum switching voltage: 150VAC 24VDC
- Digital interface
- Control signal: TTL level
- Contact Rating (Res. Load):10A 277VAC/24VDC
- Max. switching voltage 250VAC/30VDC 250VAC/30VDC
- Max. switching current 15A
- Max. switching power 2770VA 240W 2770VA 240W
- UL Rating: 10A 120VAC /10A 277VAC
- Operate time (at nomi. Vot.): 10ms
- Release time (at nomi. Vot.): 5ms
- Module pin definitions: One foot - control side, two feet - Power supply (VCC), 3 feet - ground
I like this relay because it can be used with 5V and 3.3V Arduino and similar microcontrollers. There is also a NC contact in addition to the normally open so the relay contacts act like a SPDT switch. The contacts can handle 10A. High signal from the microprocessor turns on the relay (green wire). Red wire is for + power, black wire for - power. Here is what DF Robot says about it: It is specially designed for low-voltage devices and works well under 3.3V power supplies, just like the Raspberry Pi relay board. In addition, the module has a wide range of power inputs. In our tests, once it reaches 2.8~5.5V, it can also support 1.8V devices. DFRobot’s Digital Relay Module uses a high quality 3V relay. It can handle up to 10A current and mechanical parts are guaranteed up to 100 million uses. An on-board indicator LED demonstrates the relay’s state. Terminals include normally open (NO) and normally closed (NC). The module uses a Gravity-3 pin interface, which requires no soldering for convenient plug and play usage. Introducing the Gravity Digital Relay Module – the latest addition to DFRobot’s Gravity series! This module is a little different to the other relays in our store - not only is it compatible with 5V Arduino boards, but also with Raspberry Pi, BBB (BeagleBoard Black), mbed, Intel Joule, Arduino 101 and other 3.3V devices. Operating Voltage: 2.8V ~ 5.5V Input Signal: High Level (≥2.8V). Low Level (≤0.5V) Max Switching Current: 10A
J'aime ce relais car il peut être utilisé avec des microcontrôleurs Arduino 5V et 3.3V et similaires. Il y a aussi un contact NC en plus du contact normalement ouvert pour que les contacts du relais agissent comme un commutateur SPDT. Les contacts peuvent gérer 10A. Le signal haut du microprocesseur active le relais (fil vert). Le fil rouge est pour + puissance, le fil noir pour - puissance. Voici ce que DF Robot en dit: Il est spécialement conçu pour les appareils basse tension et fonctionne bien sous une alimentation de 3,3 V, tout comme la carte à relais Raspberry Pi. De plus, le module dispose d’une large gamme d’entrées de puissance. Lors de nos tests, une fois qu'il atteint 2,8 ~ 5,5V, il peut également prendre en charge des appareils à 1,8V. Le module de relais numérique de DFRobot utilise un relais 3V de haute qualité. Il peut supporter jusqu'à 10 A de courant et les pièces mécaniques sont garanties jusqu'à 100 millions d'utilisations. Un voyant LED intégré indique l’état du relais. Les terminaux incluent normalement ouvert (NO) et normalement fermé (NC). Le module utilise une interface Gravity-3 pin, qui ne nécessite aucune soudure pour une utilisation pratique plug and play. Présentation du module de relais numérique Gravity - le dernier-né de la série Gravity de DFRobot! Ce module est un peu différent des autres relais de notre magasin. Non seulement il est compatible avec les cartes Arduino 5V, mais également avec les cartes Raspberry Pi, BBB (BeagleBoard Black), mbed, Intel Joule, Arduino 101 et autres appareils 3,3V. Tension de fonctionnement: 2.8V ~ 5.5V Signal d'entrée: Niveau haut (≥2.8V); Niveau bas (≤0.5V) Courant de commutation max .: 10A
Worked great with DFRobot Mega IO Expansion Shield. Connected up to 6 relays and worked with solely usb power to the Mega.
Fonctionne très bien avec le bouclier d’extension Mega IO DFRobot. Connecté jusqu'à 6 relais et fonctionné uniquement avec une alimentation USB pour le Mega.
It's a good product for any application you may have. This relay is easy to wire and understand, so anyone can switch between two different voltage supply.
