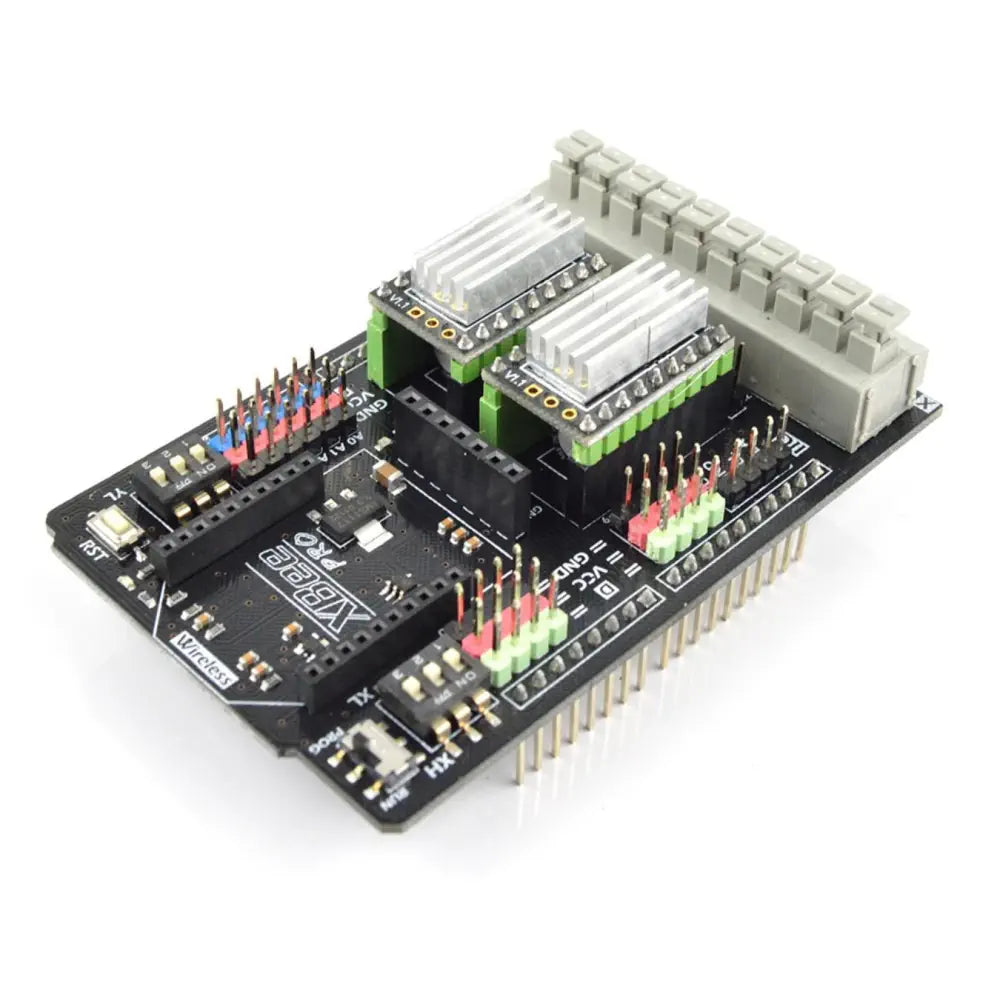

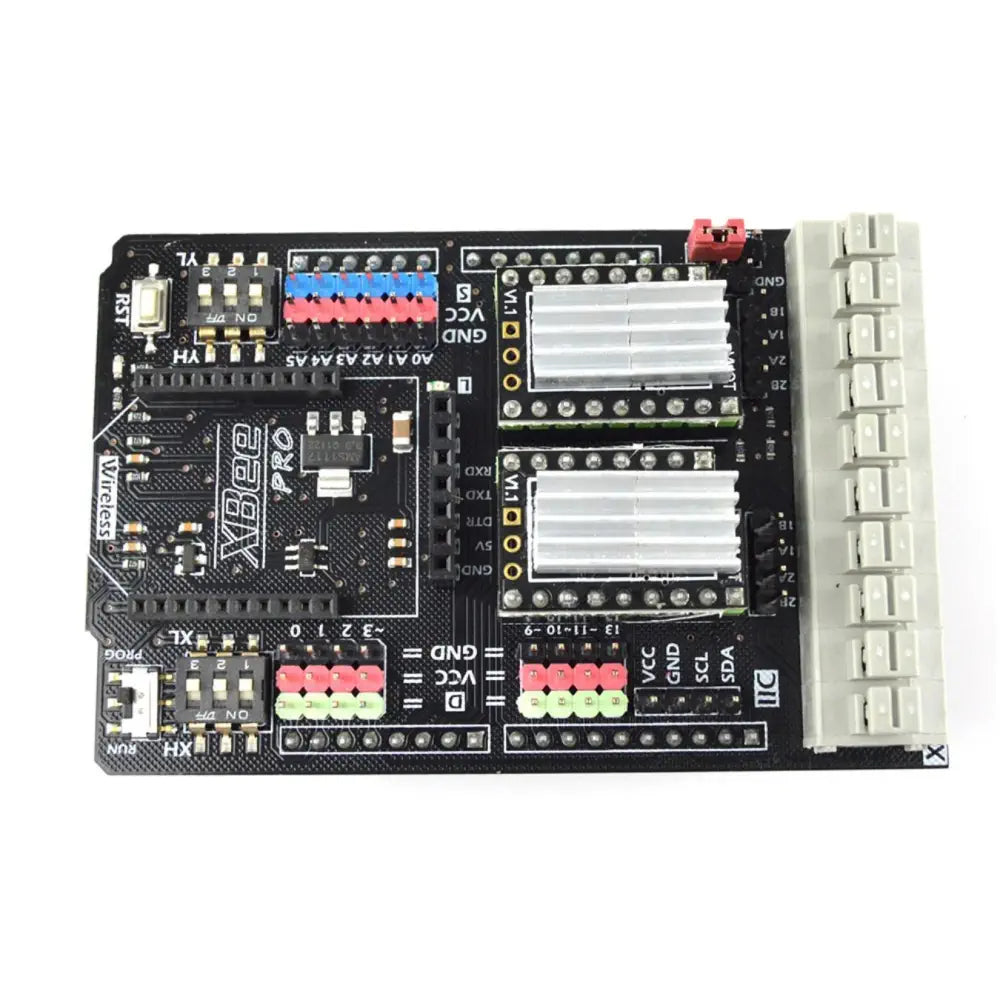

Dual Bipolar Stepper Motor Controller for Arduino
Description
- Easily control 2 stepper motors with only 6 digital I/Os
- Five different microstep resolutions (down to 1/16-step)
- 10 channel digital I/O & 6 channel Analog I/O addition
- Input voltage: 8.2-45V DC
The Dual Bipolar Stepper Motor Controller for Arduino is compatible with the Arduino UNO R3, and get direct support with Xbee and Xbee form factor Wi-Fi, Bluetooth and RF modules. The controller is shield compatible and has pinout for XBee (and compatible) modules.
- Dimension: 83 * 55 * 25 mm/3.26 * 2.16 * 0.98 inches
- Weight: 48 g
- Input Voltage: 8.2-45 VDC
- Output current: 1.6 A (Limited)
- Working voltage: 3.3/5 V
- Driving pin: D4, D5, D6, D7, D8, D12

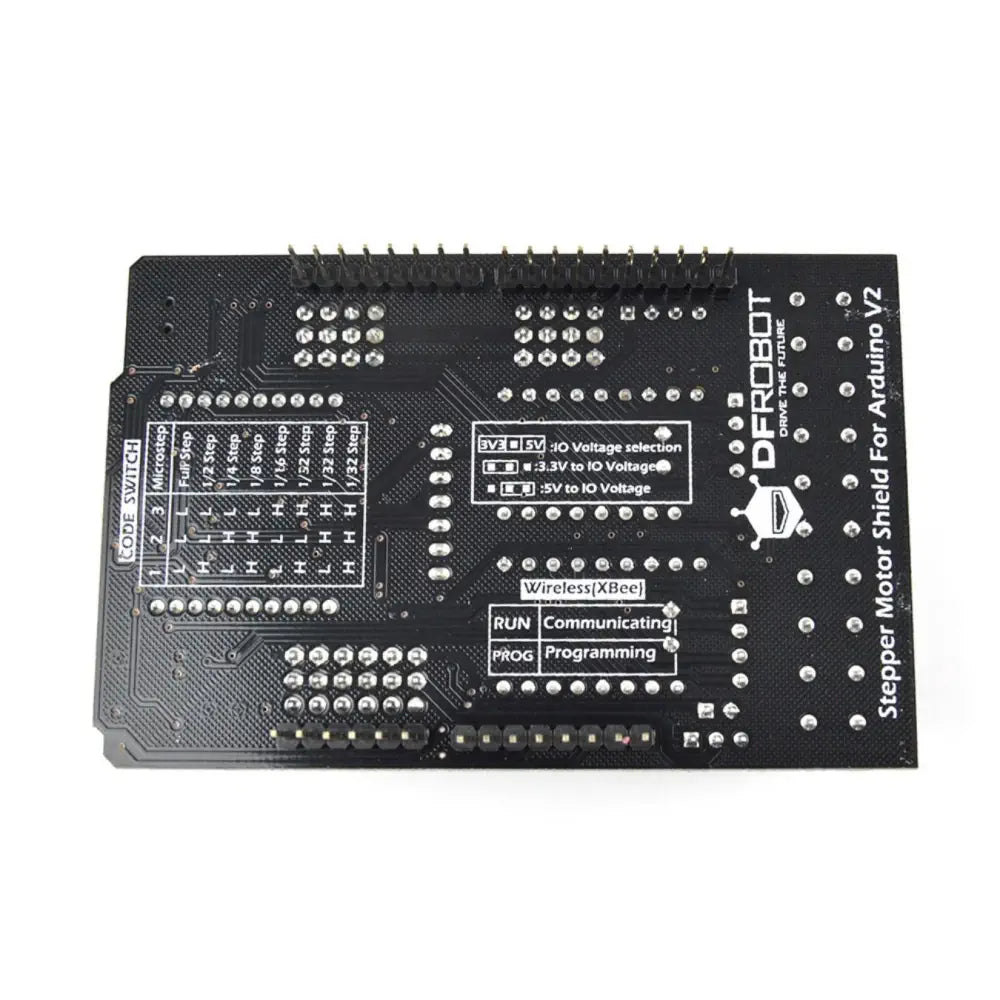

- Microstep resolutions: full, 1/2, 1/4, 1, 8, 1/16, 1/32
- Support Dual Bipolar Stepper Motor
- Support XBee interface
- Compatible with the Arduino UNO R3, Leonardo, Mega microcontroller
L'article fonctionne bien mais le code exemple contient des erreurs, corriger :
int M2steppin = 6; par int M2steppin = 8;
Brancher B+ B- dans les connections 1A 1B et A+ A- dans 2A 2B et changer la durée dans delayMicroseconds(20000);
et le moteur va fonctionner.
We bought this item to control two stepper motors using an arduino. It works well and it's been five months, we are still using it. It also fits well on our Arduino microcontroller board and provides all input/output features. My students took a while to figure out pins and features but I was extremely happy when my students find out on their own based on theoretical background and hands on approach.
Nous avons acheté cet article pour contrôler deux moteurs pas à pas à l’aide d’un arduino. Cela fonctionne bien et cela fait cinq mois, nous l'utilisons toujours. Il s’intègre également bien sur notre carte à microcontrôleur Arduino et fournit toutes les fonctionnalités d’entrée / sortie. Mes élèves ont mis du temps à comprendre les épingles et les fonctionnalités, mais j'étais extrêmement heureux lorsque mes élèves l'ont appris d'eux-mêmes en se basant sur leurs connaissances théoriques et leur approche pratique.
I am completely unsatisfied with this product and hope nobody else makes the mistake of purchasing it. Before considering this product take a look at the quality of the documentation. The only example code is a short arduino script that doesn't even explain where the two enbl pins are (I still don't know which pins are being used for enbl!) The schematics are illegible and the 'datasheet' is just the datasheet for the driver IC used in the chip. There is no way of setting the limit current so on the off chance that I do get it to turn a motor the current setting is incorrect so it doesn't work properly. Please save yourself the trouble and buy something else. I have spent two months trying to decipher how this product works. I want my time back.
