Description
- Chassis and Motors only
- Specially designed for indoor and outdoor applications and extreme terrain
- Two synchronized articulated arms with 360° degree operation
- Light weight with excellent payload capacity
- Note: This is a special order item. Returns are not accepted on special order and clearance items unless they are defective, in which case the product may be repaired or replaced at RobotShop's discretion.

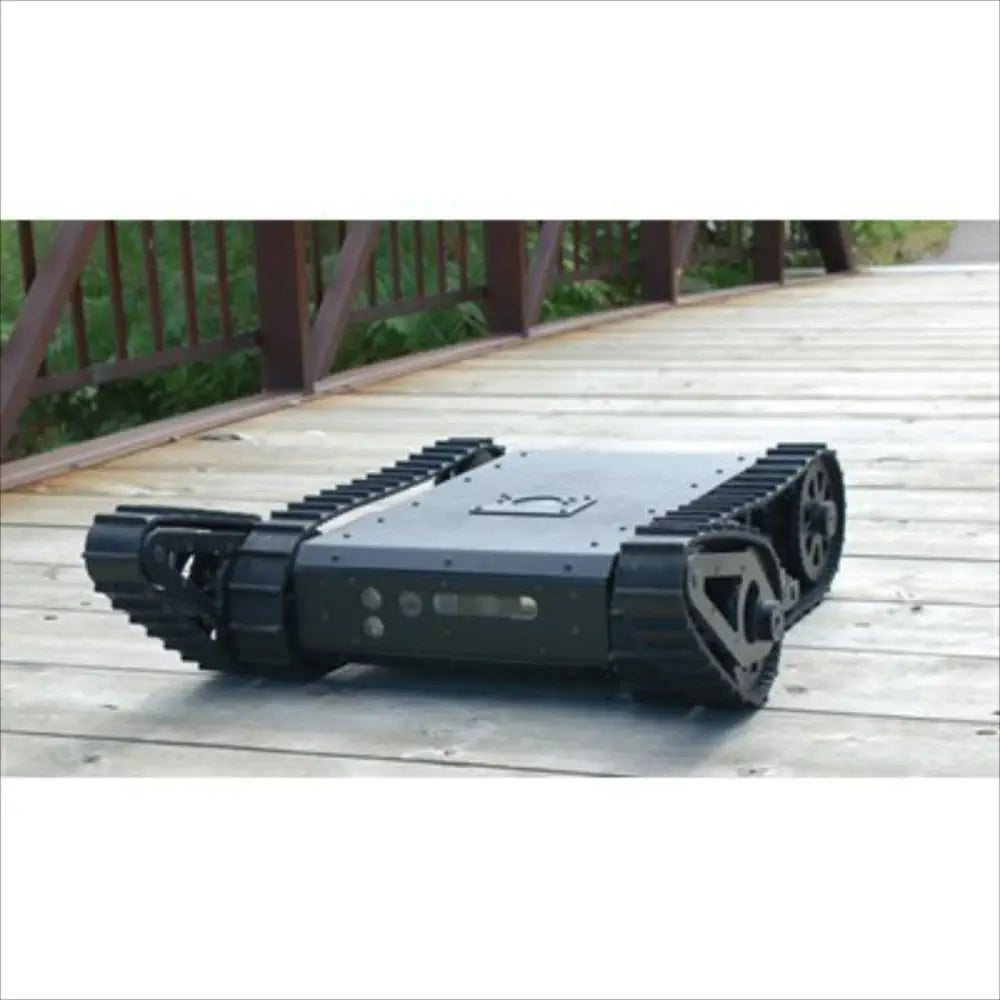

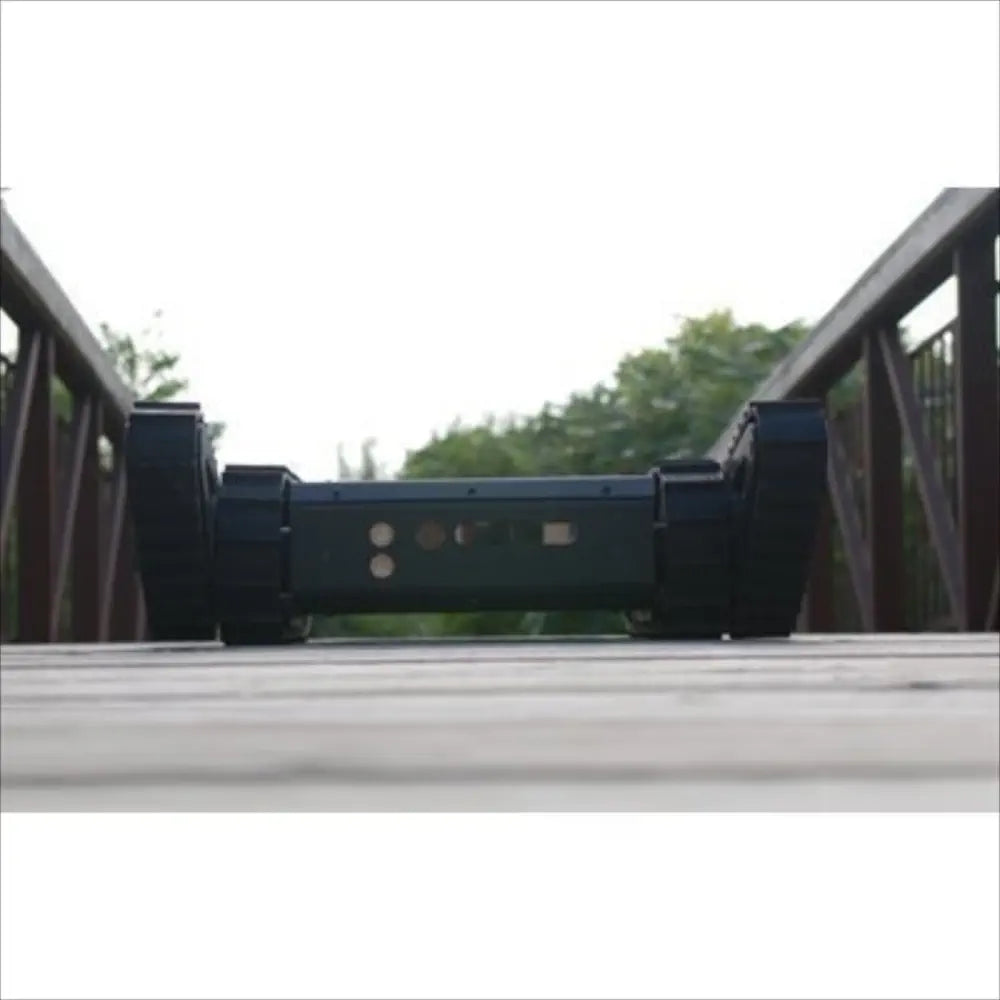

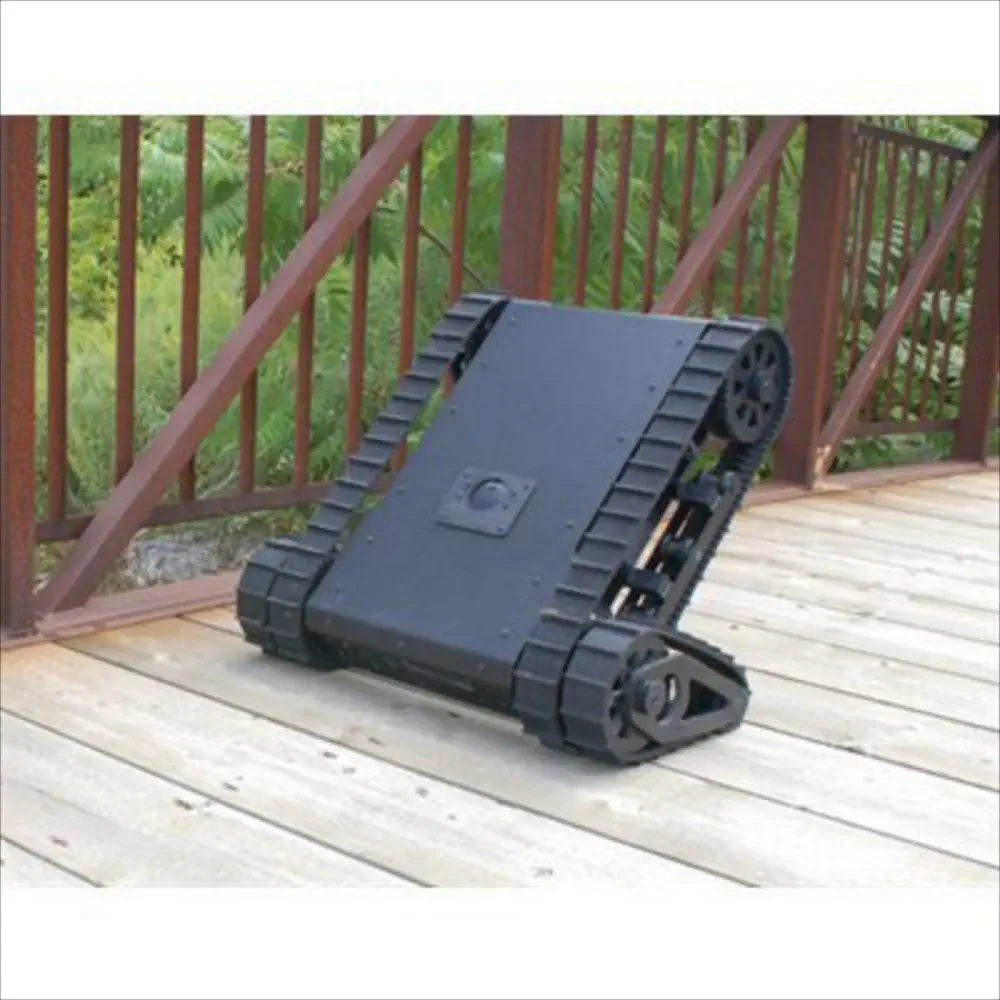

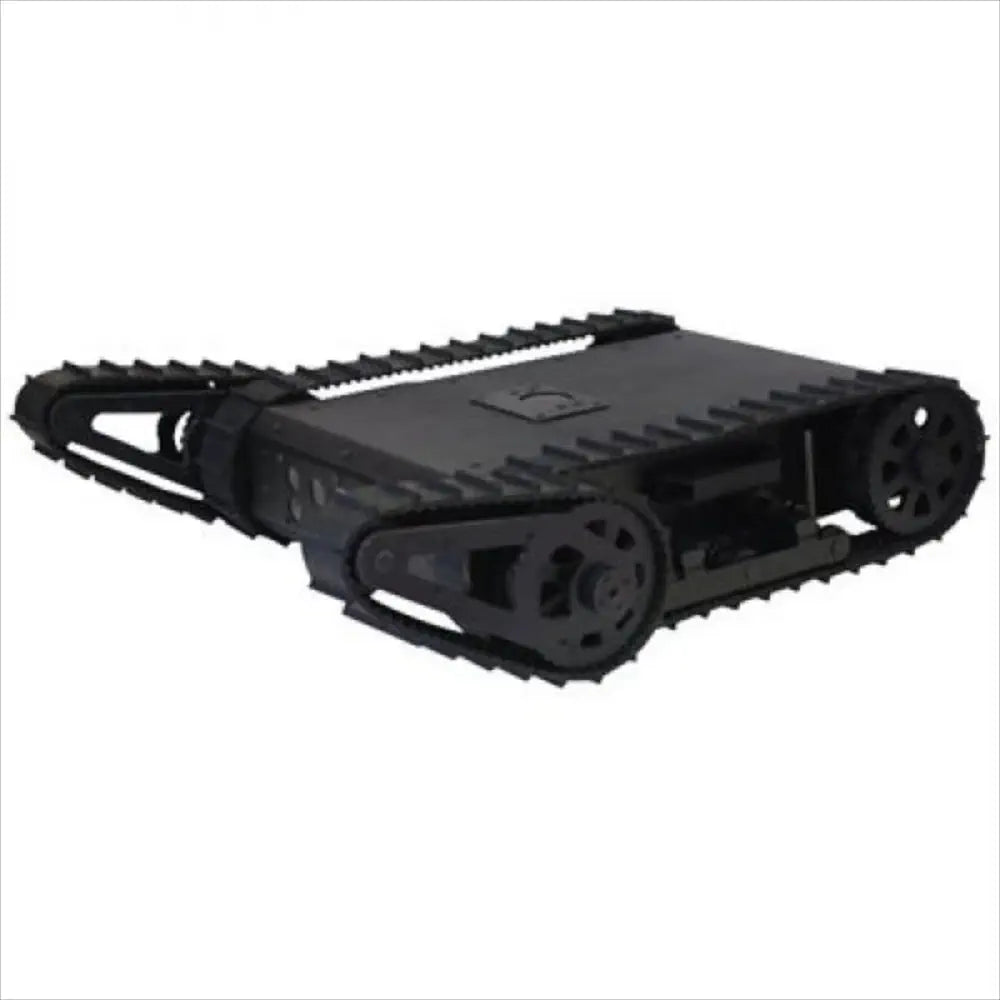

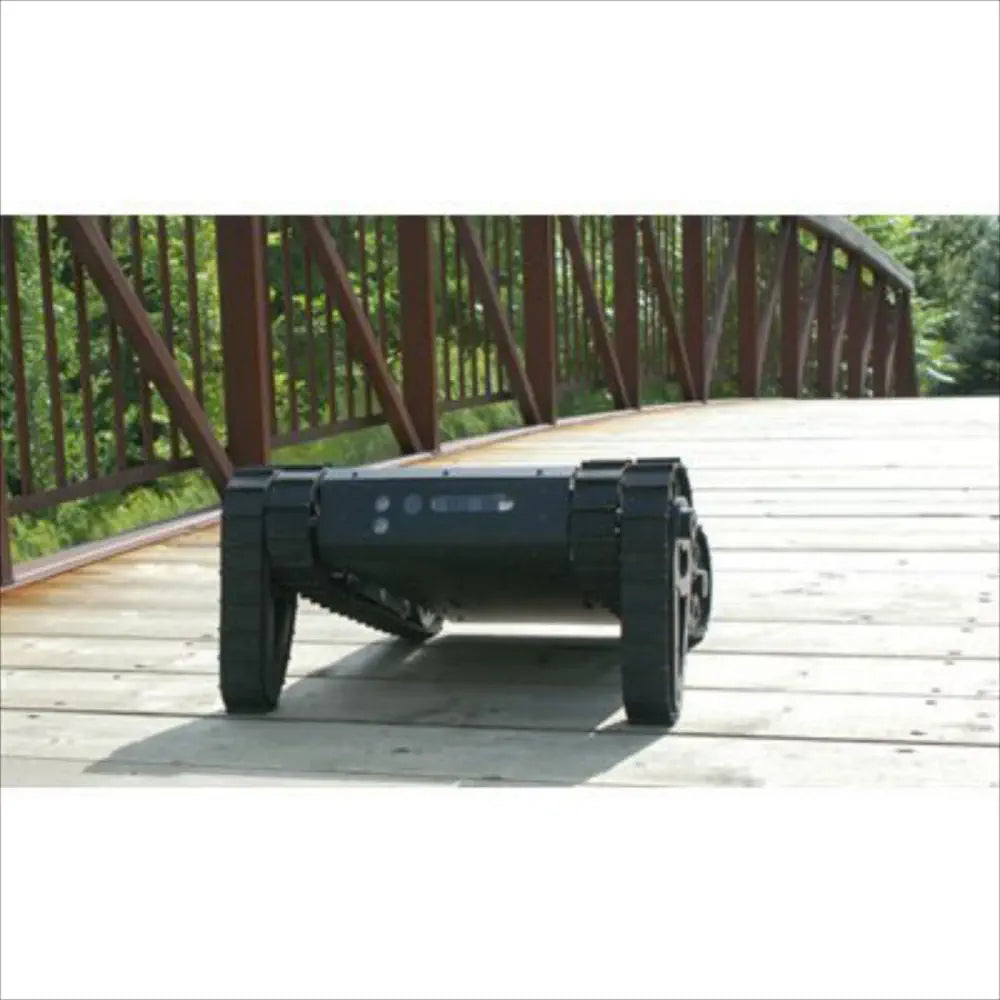

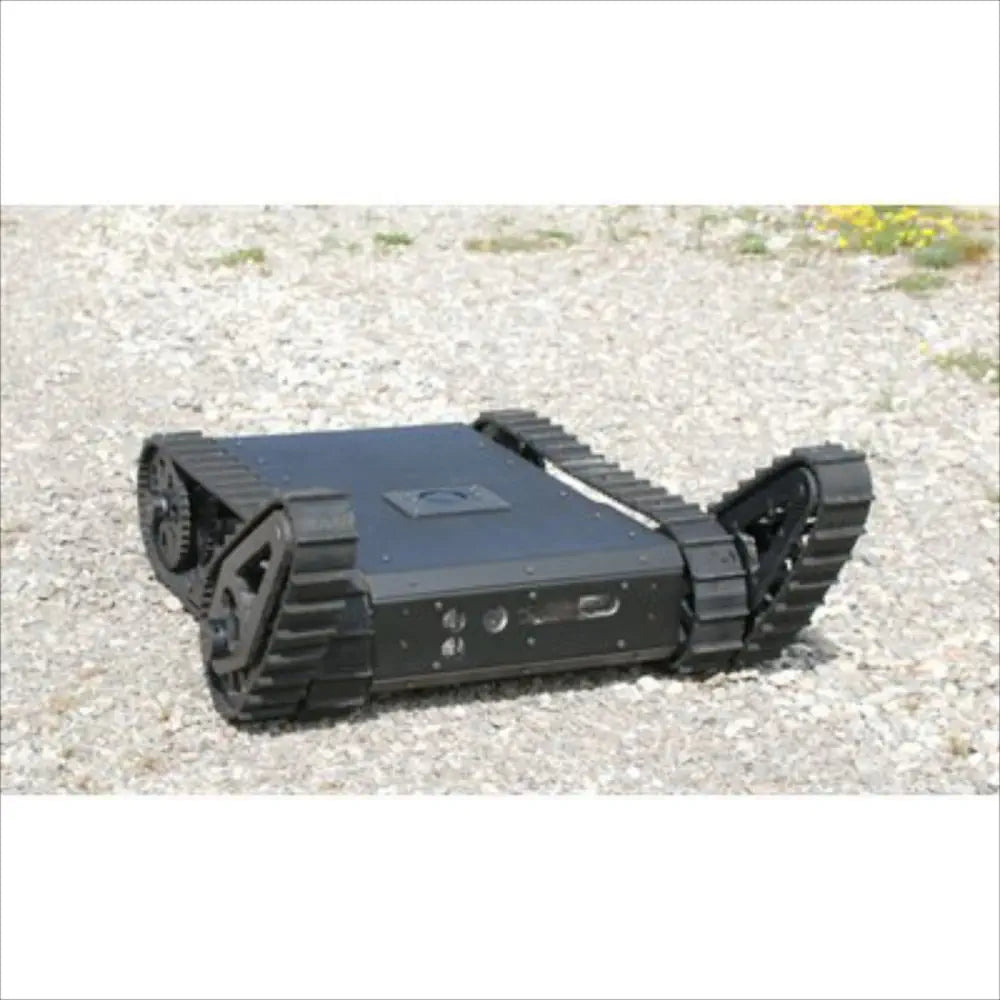

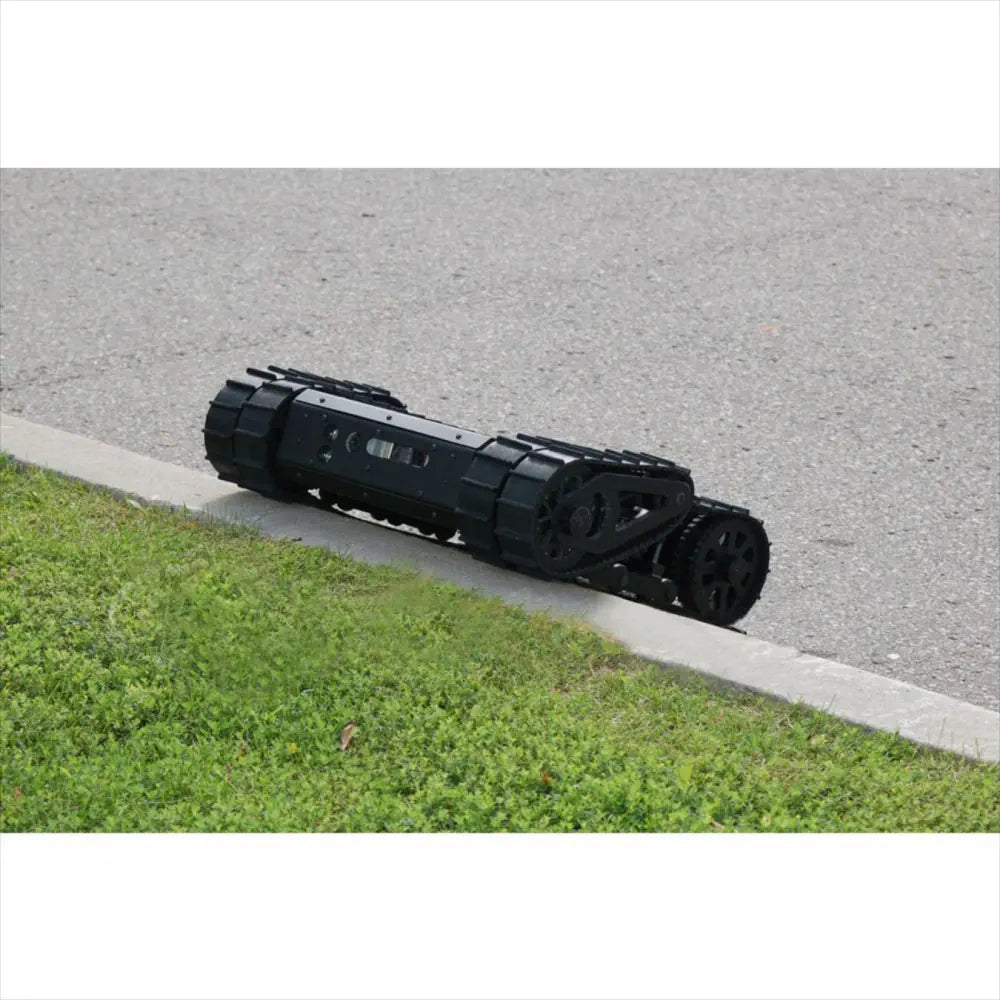

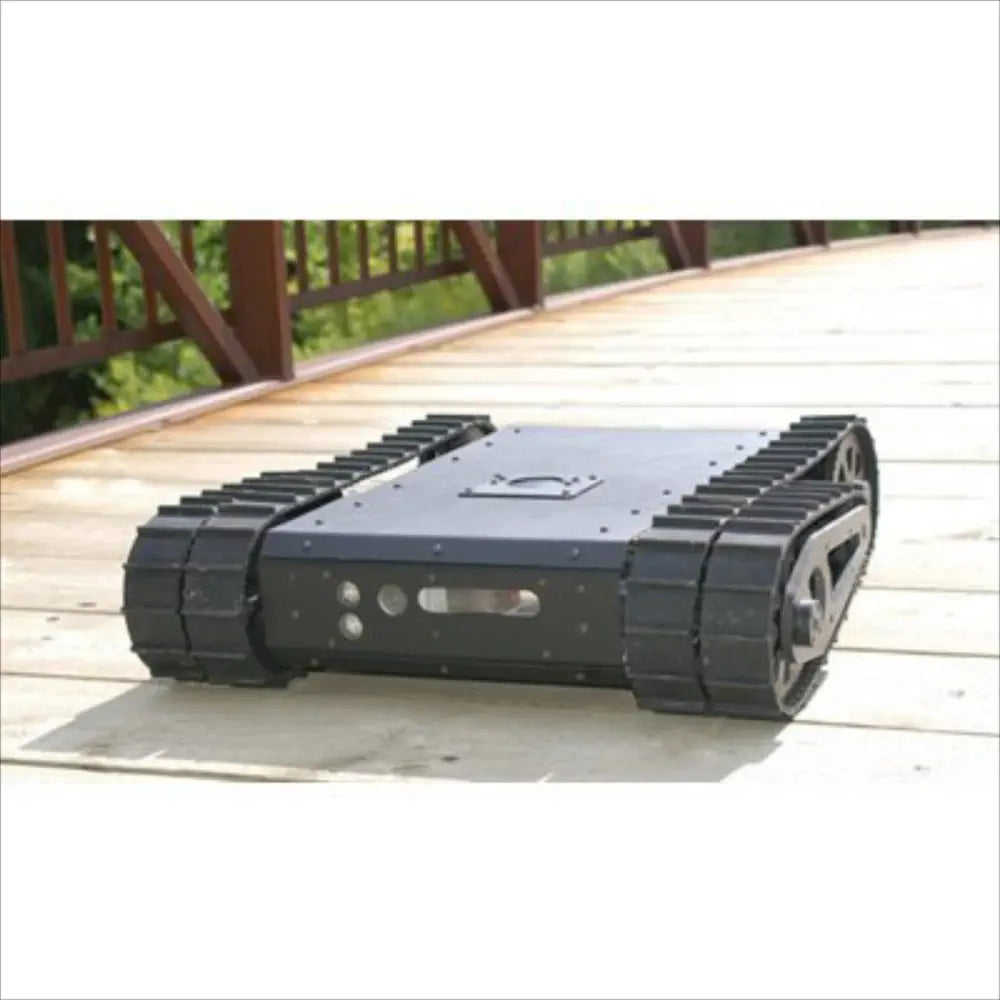

The Dr. Robot Jaguar Tracked Mobile Platform (Chassis and Motors) is specially designed for indoor and outdoor applications for extreme terrains. The platform is equipped with two synchronized (or optional independently controlled) articulated arms with 360° degree operation that helps it to serve in all kinds of rugged terrains.
The Dr. Robot Jaguar Tracked Mobile Platform (Chassis and Motors)'s sealed weather and water resistant enclosure, shock resistant chassis, and compact design ensure its better survivability in any kind of environment. It can easily work in the temperature range of -30° to +50° C. Though it is light weight (<15Kg), its payload capacity (carrying Payload: max 22Kg and Dragging Payload: max 55Kg) is excellent. The platform easily climbs over 45° slope or stairs. The articulated arms with strong gripping capability make it to climb or cross vertical steps, stairs or obstacles of 200 mm (8”). It runs with 0 - 7 Km/hr depending upon the nature of the terrain.
The Dr. Robot Jaguar Tracked Mobile Platform has temperature sensing and voltage monitoring facility. As a whole, the platform's light weight (<15Kg), compact design, large payload capacity, robust maneuverability and the integrated sophisticated tools make it a versatile equipment in the robotic arena.
Features:
- Rugged and reliable mobile platform for indoor and outdoor applications with excellent handling and mobility
- With two synchronized (or optional independently controlled) articulated arms
- Indoor and outdoor operation for extreme terrains
- Weather and water resistant enclosure

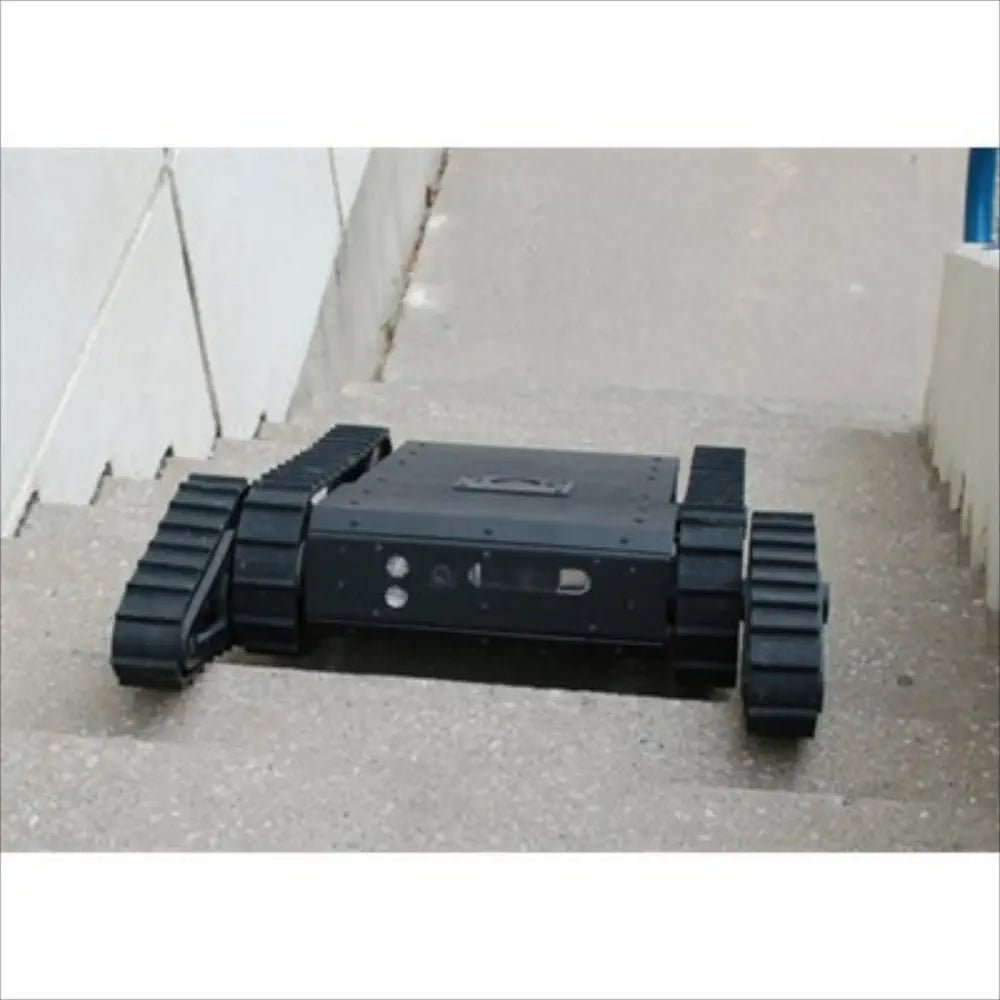

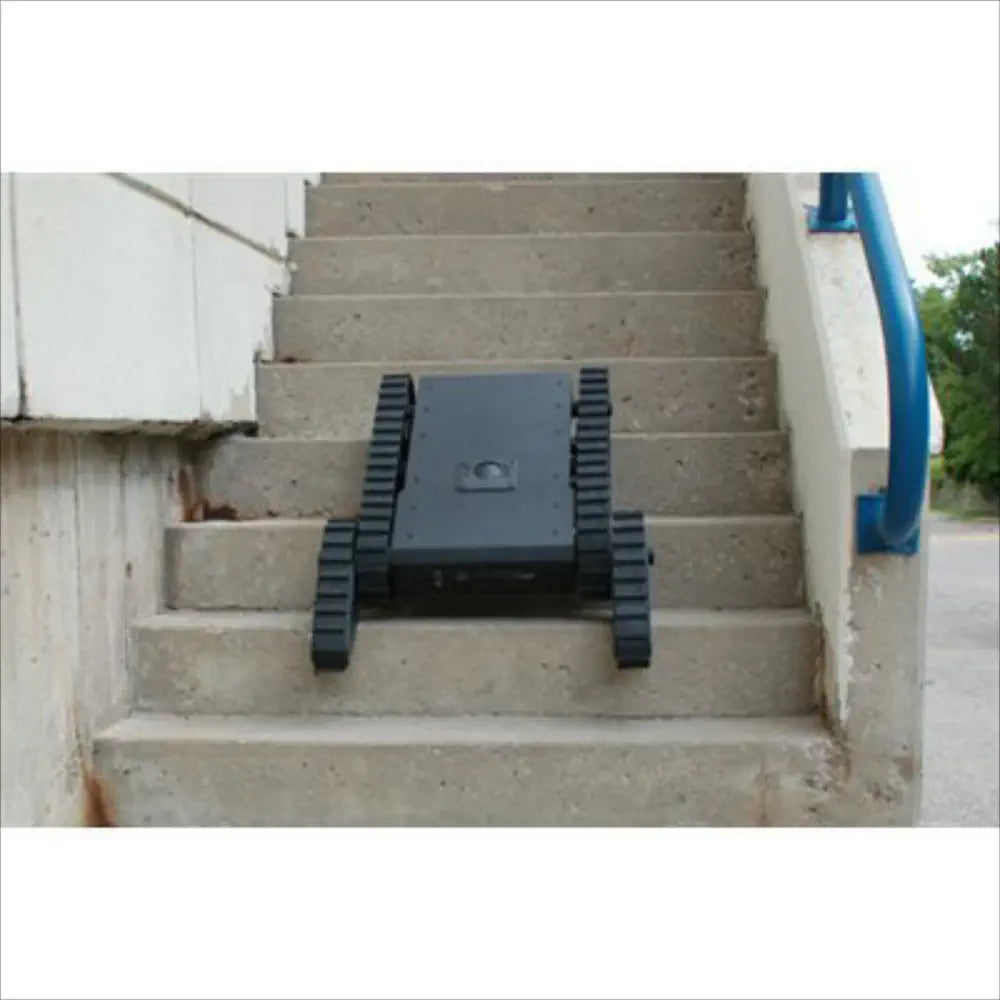

- Climbing up 45° slope or stairs
- Light weight (<15Kg) and compact design with large payload capacity and robust maneuverability
- Managing max 200mm (8”) vertical step (obstacle)
- Rugged and reliable with shock absorbing suspension
- Height: 176 mm (7")
- Width: 655 mm (25.8")
- Length 820 mm (32.3") (extended arms) / 640 mm (25.2") (folded arms)
- Weight: 14.5 Kg (Chassis)
PDF Files
Mobility:
- Terrain: Sand, rock, concrete, gravel, grass, soil and others wet and dry
- Slope: max 45°
- Maximum vertical step: 200mm (8")
- Stair climbing: Max stair step height 200mm (8")
- Traverse: > 260mm (10")
- Two articulated arms (Standard: synchronized motion; Optional: independent controlled)
- Speed: 0 - 7Km/hr
- Turning radius: 0, min 850mm (33.5") diameter of turning space
- Ground clearance: 38mm (1.5")
Survivability:
- Sealed weather resistant enclosure
- Temperature: -30° to +50°
- Shock resistant chassis
- Self-correction from flip-over with articulated arms
Motor:
- Track Motors (24V) (After gear down): 2 units
- - Max output (x2): Max 80W, 100Kg.cm/track
- - Rated current: 2.75A, Max current 16A
- Arm Motor (24V): 1 unit
- - Max output: Max 80W, 450Kg.cm
- - Rated current: 2.75A, Max current 16A
Payload:
- Carrying Payload: max 22Kg
- Dragging Payload: max 55Kg
